Based on the multi-stage Roots technology, the ACG 600 G is the result of over 20 years of experience in manufacturing dry vacuum pumping solutions. ACG 600 G pumping groups provide all the benefits of clean and dry vacuum whenever particulate or oil contamination is an issue. A specific version is also available for the pump down of large chamber volumes > 1 m3.
Click Here for Pfeiffer ACG 600G Manual
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Ambient temperature | 5-40 °C | 41-104 °F | 278-313 K |
Continuous inlet flow, max. | 60 slpm (0 °C) |
Cooling | Water |
Cooling water flow | Minimum: 60 l/h |
Cooling water flow, min | 1 l/min |

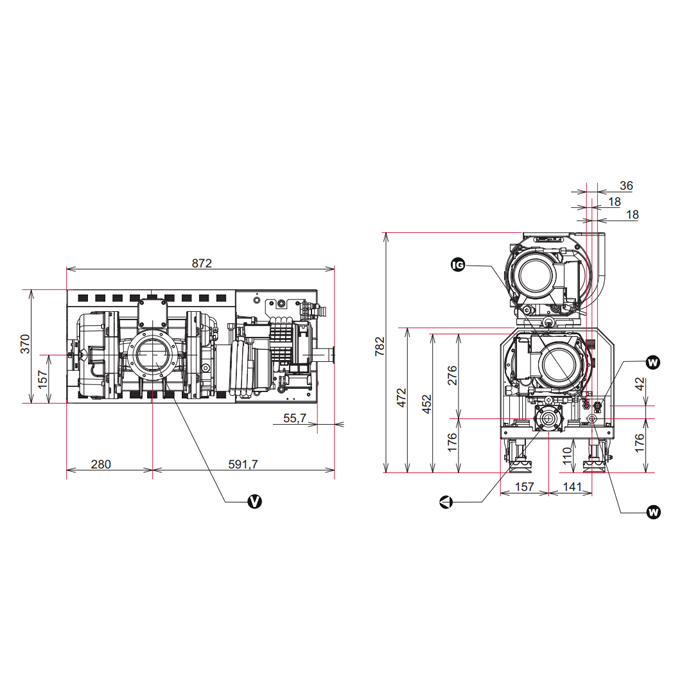

Dimensions (L x W x H) | 872 x 370 x 779 mm | 34.33 x 14.57 x 30.67 inch |
Exhaust pressure, max. | 1,200 hPa | 900 Torr | 1,200 mbar |
Flange (in) | DN 100 ISO-K |
Flange (out) | DN 40 ISO-KF |
Frequency | 50/60 Hz |
Noise level, max. | 68 dB(A) |
Power consumption at ultimate pressure, 50 Hz | 1.8 kW |
Power consumption at ultimate pressure, 60 Hz | 2 kW |
Power supply voltage, 3 phases | 200 – 230 V |
Processes | Light Duty Applications |
Pumping speed at 50 Hz | 480 m³/h | 282.53 cfm | 8,000 l/min |
Pumping speed at 60 Hz | 560 m³/h | 329.62 cfm | 9,333.33 l/min |
Sound pressure level | 68 dB(A) |
Typical ultimate pressure, with N2purge, 50 Hz | 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2 mbar |
Typical ultimate pressure, with N2purge, 60 Hz | 6 · 10-3 hPa | 4.5 · 10-3 Torr | 6 · 10-3 mbar |
Version | Corrosive gas version |
Volume size, max. | 1 m³ |
Weight | 320 kg | 705.47 lb |
Click Here for Pfeiffer ACG 600G Manual
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
