Agilent HLD PD03 Benchtop Portable Helium Leak Detector with Internal IDP-3 Dry Scroll Pump, PD-03, G8610B
Item#: PN22440 Mfr Part#: G8610B Manufacturer: Agilent Technologies / Varian
Condition: New
New Agilent HLD PD03 Benchtop Portable Helium Leak Detector with Internal IDP-3 Dry Scroll Pump, PD 03, G8610B

Features:
  • Portable All-In-One Helium Leak Detector
  • Intuitive User Interface
  • Internal IDP-3 Dry Scroll Backing Pump
  • Thorough and efficient testing

Price upon request
Item#: PN22440 Mfr Part#: G8610B
Agilent HLD PD03 Benchtop Portable Helium Leak Detector with Internal IDP-3 Dry Scroll Pump, PD-03, G8610B
Item#: PN22440 Mfr Part#: G8610B Manufacturer: Agilent Technologies / Varian 12 months warranty

Agilent HLD PD03 Benchtop Portable Helium Leak Detector with Internal IDP-3 Dry Scroll Pump 3 m3/h pumping speed, PD-03, G8610B

The new Agilent PD03 portable helium leak detector is a robust precision instrument that features an easy to use touch screen interface. Powerful leak detection capabilities are linked together through an efficient menu structure that allows quick and intuitive usage. The Agilent Technologies PD-03 leak detector also includes built in application setups that will shorten your test cycles. These configurations could be easily saved to assure repeatability in the future. The size of this Agilent portable leak detector allows it to be easily utilized on a cart, table, or bench. Enclosed is an IDP-3 dry scroll pump with a 3 m3/h pumping speed.

The new generation of Agilent HLD bench top leak detectors were designed to bring unprecedented ease and performance to all your leak detection needs.

Key Features of the HLD Leak Detector:

  • Six preloaded application setup guides that allow you to configure your unit for any application. This ensures that your parameters are properly set for thorough and efficient testing.
  • A new and improved touch screen that is larger, more responsive, and durable. The display will rotate 180 degrees for ease of use.
  • A cleaner and more efficient user interface. Frequently used features will be immediately accessible and the new menu structure allows you to quickly find settings.
  • Startup wizard that helps guide you through your first time setup of the instrument.

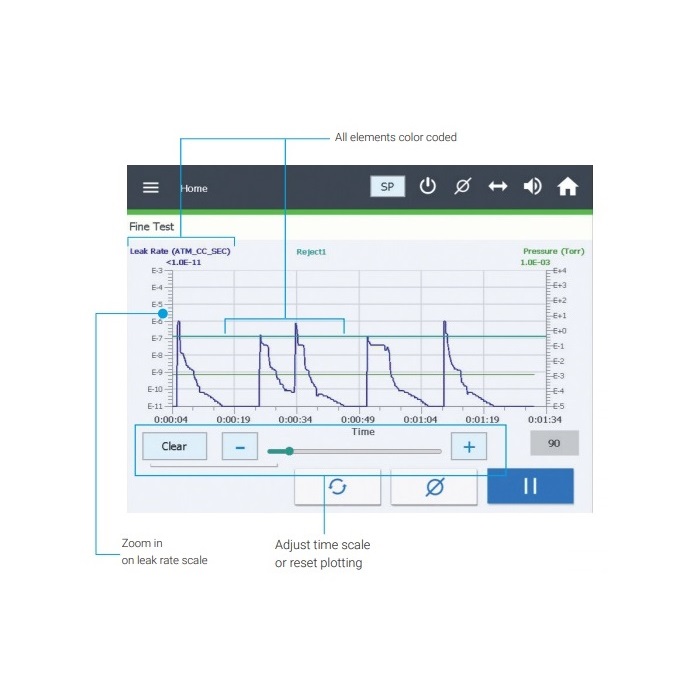

  • Enhanced charting functionality. The touch screen will allow you to zoom in on data, use color coded setpoints, and make time based plot records for leak rate and pressure.
  • Large work area which provides ample room to test parts, tools, and other materials.
  • An improved shutdown sequence keeps the spectrometer under vacuum and the turbomolecular pump protected during the power-off process.
  • Dry vacuum pump prevents risk of oil contamination.

Please contact us for pricing and availability of optional features for the new Agilent HLD PD 03.

A&J Vacuum Repair / Rebuild and Service Varian Agilent Potable Helium Leak Detectors Agilent Vacuum Pumps and Agilent Turbo Pumps Service along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854



This item is non-returnable/non-refundable

Agilent HLD PD03 Benchtop Portable Helium Leak Detector with Internal IDP-3 Dry Scroll Pump 3 m3/h pumping speed, PD 03, G8610B

A&J Vacuum Repair / Rebuild and Service Varian Agilent Portable Helium Leak Detectors Agilent Vacuum Pumps and Agilent Turbo Pumps Service along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

| Service and Repair
We can repair your:
  • Turbo Pumps
  • Rotary Vane Pumps
  • Dry Vacuum Pumps
  • Leak Detectors
  • Scroll Dry Pumps
  • Vacuum Boosters
  • Diaphragm Dry Pumps
You trusted worldwide leader of High Vacuum equipment!
Call us for your free repair estimate!
973-249-0854

A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.

We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.

Repair Steps

  1. Full incoming inspection and run up time check, vibration check, drive inspection.
  2. Full disassembly, decontamination and cleaning.
  3. Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
  4. Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
  5. Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.

Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.

Overview

Agilent HLD PD03 Benchtop Portable Helium Leak Detector with Internal IDP-3 Dry Scroll Pump, PD-03, G8610B
Item#: PN22440 Mfr Part#: G8610B Manufacturer: Agilent Technologies / Varian

Agilent HLD PD03 Benchtop Portable Helium Leak Detector with Internal IDP-3 Dry Scroll Pump 3 m3/h pumping speed, PD-03, G8610B

The new Agilent PD03 portable helium leak detector is a robust precision instrument that features an easy to use touch screen interface. Powerful leak detection capabilities are linked together through an efficient menu structure that allows quick and intuitive usage. The Agilent Technologies PD-03 leak detector also includes built in application setups that will shorten your test cycles. These configurations could be easily saved to assure repeatability in the future. The size of this Agilent portable leak detector allows it to be easily utilized on a cart, table, or bench. Enclosed is an IDP-3 dry scroll pump with a 3 m3/h pumping speed.

The new generation of Agilent HLD bench top leak detectors were designed to bring unprecedented ease and performance to all your leak detection needs.

Key Features of the HLD Leak Detector:

  • Six preloaded application setup guides that allow you to configure your unit for any application. This ensures that your parameters are properly set for thorough and efficient testing.
  • A new and improved touch screen that is larger, more responsive, and durable. The display will rotate 180 degrees for ease of use.
  • A cleaner and more efficient user interface. Frequently used features will be immediately accessible and the new menu structure allows you to quickly find settings.
  • Startup wizard that helps guide you through your first time setup of the instrument.
  • Enhanced charting functionality. The touch screen will allow you to zoom in on data, use color coded setpoints, and make time based plot records for leak rate and pressure.
  • Large work area which provides ample room to test parts, tools, and other materials.
  • An improved shutdown sequence keeps the spectrometer under vacuum and the turbomolecular pump protected during the power-off process.
  • Dry vacuum pump prevents risk of oil contamination.

Please contact us for pricing and availability of optional features for the new Agilent HLD PD 03.

A&J Vacuum Repair / Rebuild and Service Varian Agilent Potable Helium Leak Detectors Agilent Vacuum Pumps and Agilent Turbo Pumps Service along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854



Agilent HLD PD03 Benchtop Portable Helium Leak Detector with Internal IDP-3 Dry Scroll Pump 3 m3/h pumping speed, PD 03, G8610B

A&J Vacuum Repair / Rebuild and Service Varian Agilent Portable Helium Leak Detectors Agilent Vacuum Pumps and Agilent Turbo Pumps Service along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

We can repair your:
  • Turbo Pumps
  • Rotary Vane Pumps
  • Dry Vacuum Pumps
  • Leak Detectors
  • Scroll Dry Pumps
  • Vacuum Boosters
  • Diaphragm Dry Pumps
You trusted worldwide leader of High Vacuum equipment!
Call us for your free repair estimate!
973-249-0854

A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.

We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.

Repair Steps

  1. Full incoming inspection and run up time check, vibration check, drive inspection.
  2. Full disassembly, decontamination and cleaning.
  3. Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
  4. Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
  5. Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.

Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
