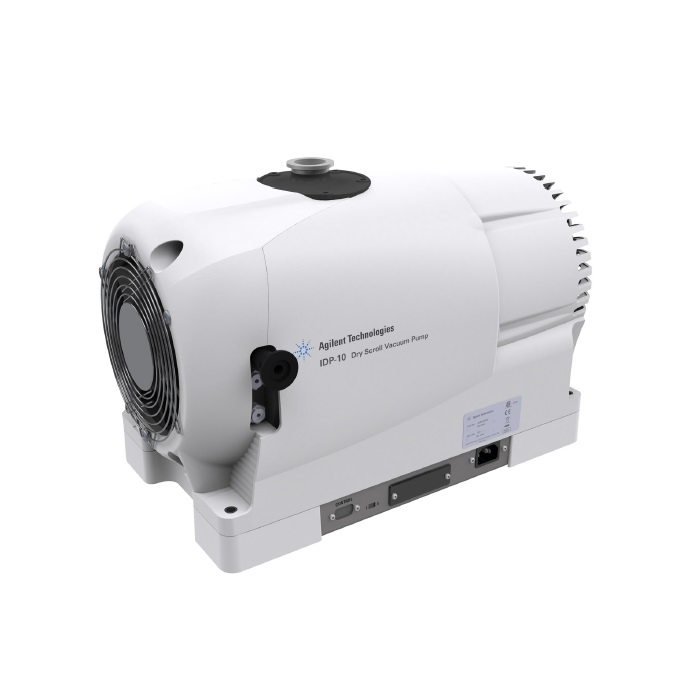

The Agilent Technologies IDP 10 Dry Scroll Vacuum Pump is an innovative, compact, high-performance, oil-free vacuum pump that is suitable for a wide variety of applications.
IDP-10 Scroll Pump made by Agilent Technologies has a Innovative hermetic design, which fully isolate the bearing and motor from the vacuum space, which prevents leakage and allows recovery of process gases.
Integral Inlet Valve installed
Agilent IDP10 pump offers easy installation and vacuum system integration
Small footprint and lighter weight makes this scroll pump a trully portable pump.
IDP-10 pump innovative scroll design reduces noise and vibration without using additional sound enclosures.
Agilent Scroll Pump has no hydrocarbon exhaust and oil mist filter is required.
Scroll Pump Features:
Agilent IDP Scroll Pump Applications Include:
IDP Scroll Pumps in Vacuum Research:
A&J Vacuum also repair / rebuild and service Agilent IDP7 / X3810-64000 Dry Scroll pumps along with all other Agilent Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Agilent IDP 10 Dry Scroll Pump with integral Inlet Valve 10.2 m3/h Single Phase, 100-127 / 200-240 VAC, 50/60 Hz, X3810-64000, Agilent IDP10, IDP-10
Integral Inlet Valve installed

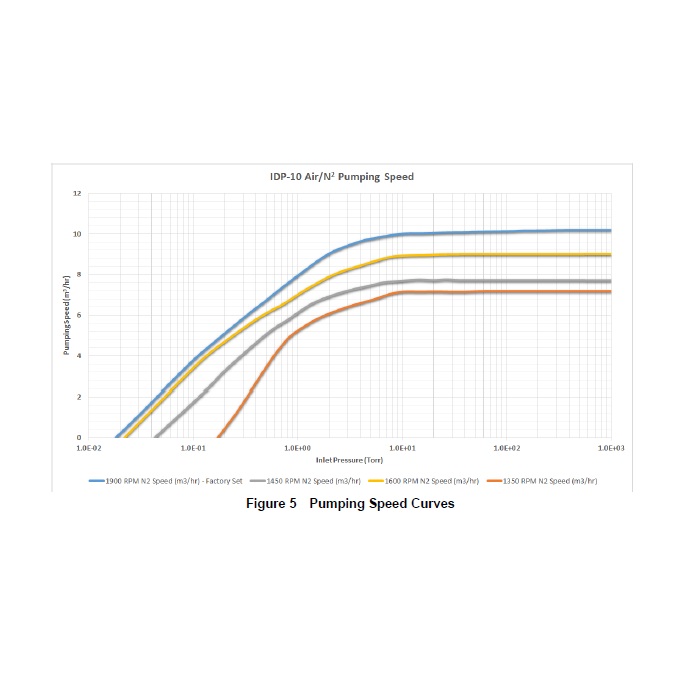

Peak pumping speed 10.2 m³/hr, 6 cfm
Ultimate pressure: 2.0 × 10-2 mbar / 1.5 x10-2 Torr
Inlet Connection: NW 25 KF
Exhaust Connection: NW 16 KF
Gas Ballast Connection: 1⁄8-in. female nat’l pipe thread
Maximum inlet pressure at nominal voltage 1.0 atmosphere (0 psig)
Maximum recommended continuous inlet pressure 300 Torr (400 mbar)
Ambient operating temperature 5 °C to 40 °C (41 °F to 104 °F)
Storage temperature –20 °C to 60 °C (–4 °F to 140 °F)
Motor rating 1/2 HP (370 W)
Cooling system Air-cooled
Water Vapor Handling 120 g/hr
Leak rate (with exhaust sealed) <1 x 10 -7 sccs helium
Noise Level (per ISO 11201) 53 +/- 2 dB(A)
Weight: 55 lbs
A&J Vacuum also repair / rebuild and service Agilent IDP7 / X3810-64000 Dry Scroll pumps along with all other Agilent Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
