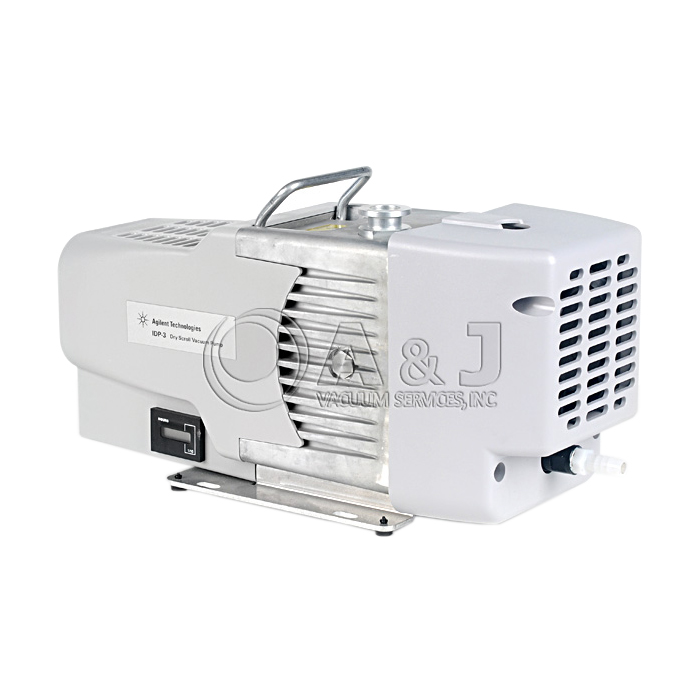

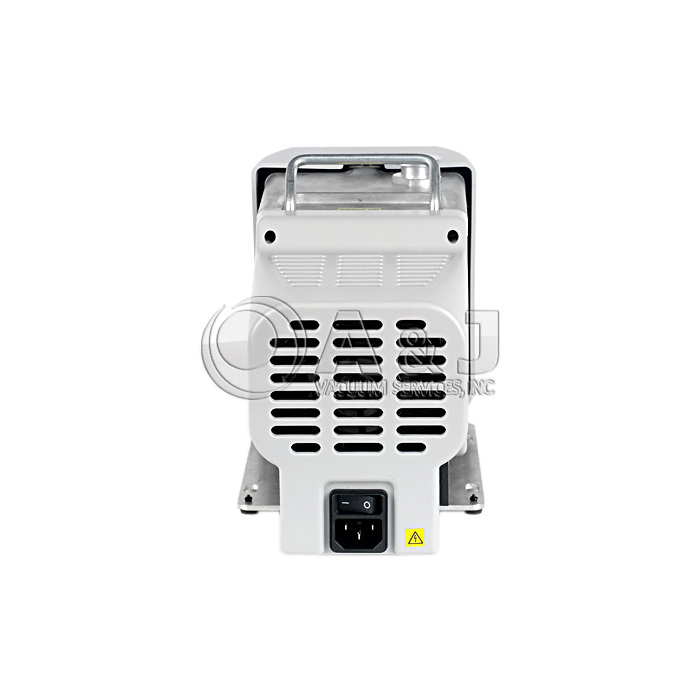

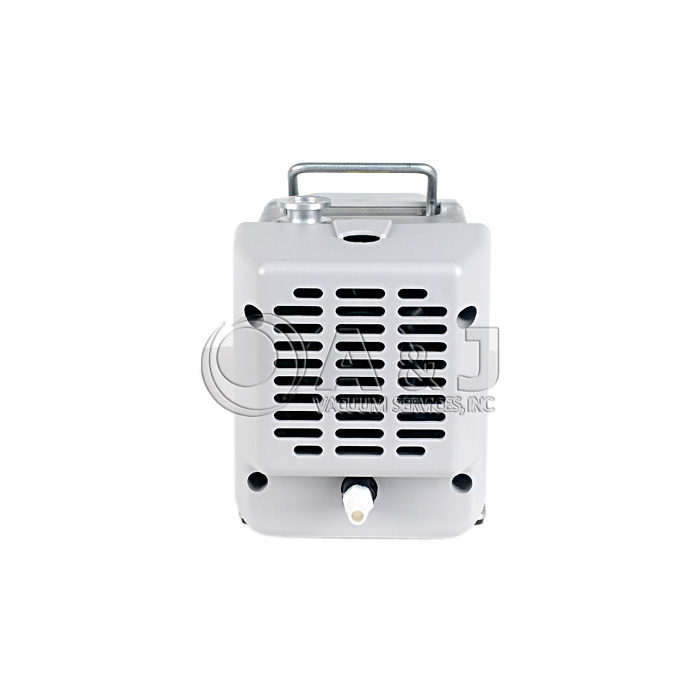

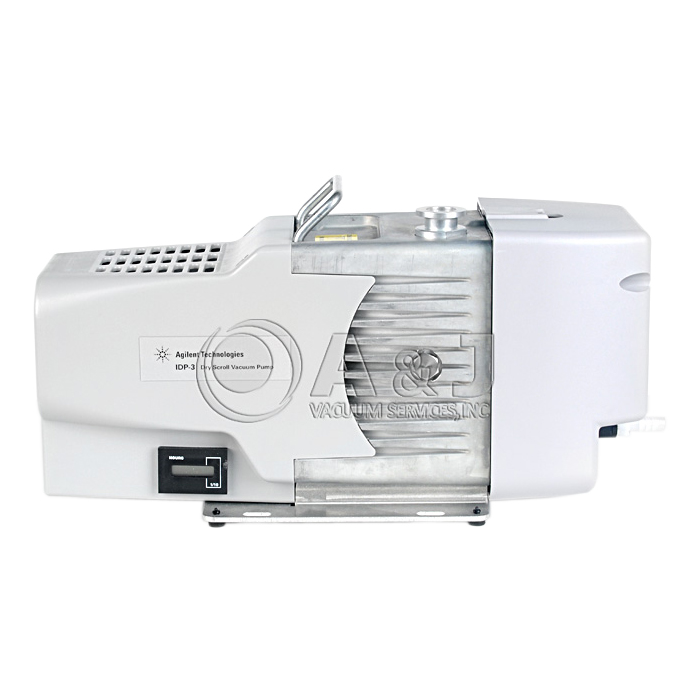

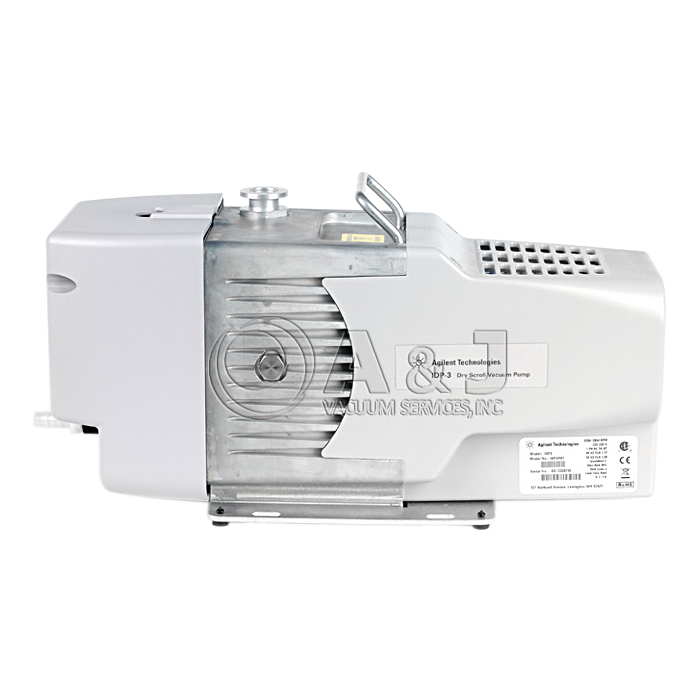

The Agilent Technologies IDP-3 / Varian IDP 3 Dry Scroll Vacuum Pump is an innovative, compact, high-performance, oil-free vacuum pump that is suitable for a wide variety of applications. It is the smallest scroll pump made for general vacuum applications, which makes it easy to integrate it into OEM systems, and IDP3 B01 weighs only 21 pounds (9.5 kg). Yet with a pumping speed of 60 liters/min and a very low base pressure of 250 millitorr, it is the highest-performing dry pump in its class.
Features:
Peak pumping speed (60 Hz): 60 L/m, 3.6 m³/hr, 2.1 cfm
Peak pumping speed (50 Hz): 50 L/m, 3.0 m³/hr, 1.8 cfm
Ultimate pressure: 2.5 × 10-1 torr (3.3 × 10-1 mbar, 33 Pa)
Exhaust Connection: 1⁄4-in. female nat’l pipe thread (10 mm hose barb provided)
Exhaust Connection Adapter: NW16 KF
Gas Ballast Connection: 1⁄8-in. female nat’l pipe thread
Weight: 9.5 kg (21 lbs)
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
