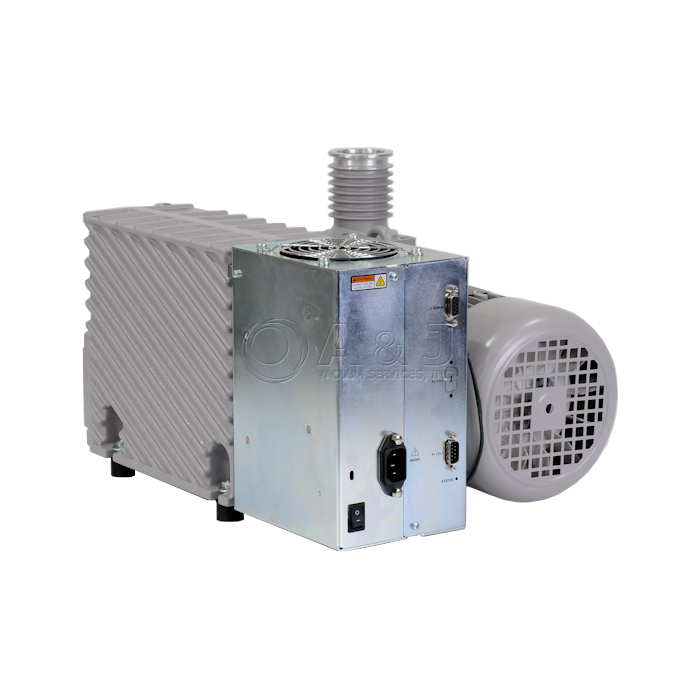

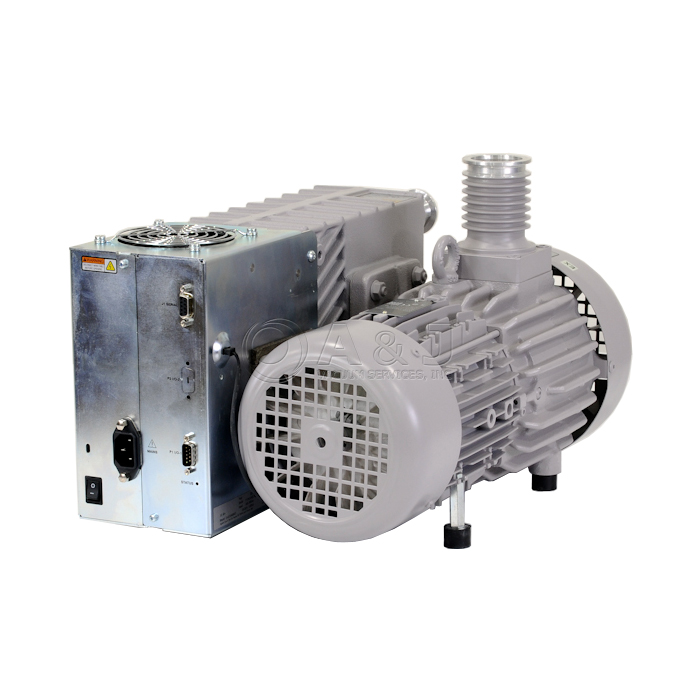

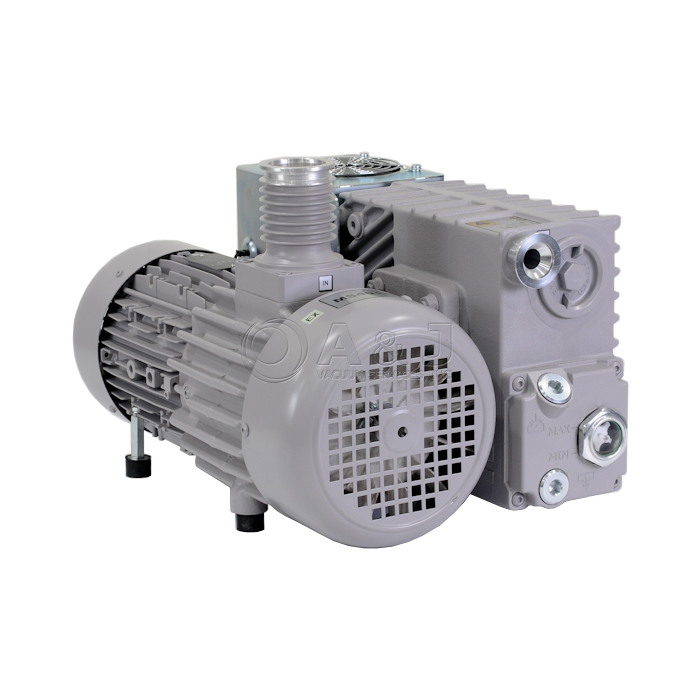

Fully Remanufactured Agilent MS 40+ Vacuum Pump Mono Stage Rotary Vane, KF40, 200-240 V, 50/60 Hz, 8499240, EX8499240
The Agilent Technologies MS 40+ Rotary Vane Pump is environmentally-friendly and the latest from the experts in vacuum technologies.
With a pumping speed of more than 45 m3/hour it's the highest in its class. Sophisticated electronics and excellent mechanical design allow high capacity roughing with a small footprint.
General applications served by the Agilent MS 40 pump are electron microscopy, mass spectrometry including LC-MS/ICP-MS/ GC-TOF-MS and other scientific instrumentation.
Pump MS 40+ Pump Features:
- High capacity pumping speed with the smallest footprint
- Proven inverter technology
- Ideal for mass spectrometry and electron microscopy
- Lowest noise, highest throughput
- Environmentally friendly and cost-effective due to reduced power requirements
- I/O and RS232/RS485 enable adjustment of operating parameters simplifying system integration
A&J Vacuum Repair / Rebuild and Service Varian Agilent MS 40+ Vacuum Pumps and Turbo Pumps along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, Varian Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully Remanufactured Agilent MS 40+ Vacuum Pump Mono Stage Rotary Vane, KF40, 200-240 V, 50/60 Hz, 8499240, EX8499240, MS40+
Free Air Displacement: 828 l/min
Pumping Speed (at 5 mbar inlet pressure): 40 m3/h
Ultimate Pressure: 5 x 10-2 mbar
Motor Rating 3ph: 0.75 kW
Rotational Speed: 1450 rpm
Inlet Flange: DN 40 KF
Outlet Flange: DN 25 KF
Input Voltage: 200-240 V
Input Frequency: 50/60 Hz
Weight: 33 kg / 73 lbs
A&J Vacuum Repair / Rebuild and Service Varian Agilent MS 40+ Vacuum Pumps and Turbo Pumps along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, Varian Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Agilent MS40, MS 40, and MS 40+ User-Manual-Operating-Instructions
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Fully Remanufactured Agilent MS 40+ Vacuum Pump Mono Stage Rotary Vane, KF40, 200-240 V, 50/60 Hz, 8499240, EX8499240
The Agilent Technologies MS 40+ Rotary Vane Pump is environmentally-friendly and the latest from the experts in vacuum technologies.
With a pumping speed of more than 45 m3/hour it's the highest in its class. Sophisticated electronics and excellent mechanical design allow high capacity roughing with a small footprint.
General applications served by the Agilent MS 40 pump are electron microscopy, mass spectrometry including LC-MS/ICP-MS/ GC-TOF-MS and other scientific instrumentation.
Pump MS 40+ Pump Features:
- High capacity pumping speed with the smallest footprint
- Proven inverter technology
- Ideal for mass spectrometry and electron microscopy
- Lowest noise, highest throughput
- Environmentally friendly and cost-effective due to reduced power requirements
- I/O and RS232/RS485 enable adjustment of operating parameters simplifying system integration
A&J Vacuum Repair / Rebuild and Service Varian Agilent MS 40+ Vacuum Pumps and Turbo Pumps along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, Varian Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Specifications
Fully Remanufactured Agilent MS 40+ Vacuum Pump Mono Stage Rotary Vane, KF40, 200-240 V, 50/60 Hz, 8499240, EX8499240, MS40+
Free Air Displacement: 828 l/min
Pumping Speed (at 5 mbar inlet pressure): 40 m3/h
Ultimate Pressure: 5 x 10-2 mbar
Motor Rating 3ph: 0.75 kW
Rotational Speed: 1450 rpm
Inlet Flange: DN 40 KF
Outlet Flange: DN 25 KF
Input Voltage: 200-240 V
Input Frequency: 50/60 Hz
Weight: 33 kg / 73 lbs
A&J Vacuum Repair / Rebuild and Service Varian Agilent MS 40+ Vacuum Pumps and Turbo Pumps along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, Varian Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
