- Pumping Speed: N2: 250 l/s
- Compression Ratio: N2: > 1 x 1011
- Inlet Flange; ISO 100
- Foreline Flange KF 16

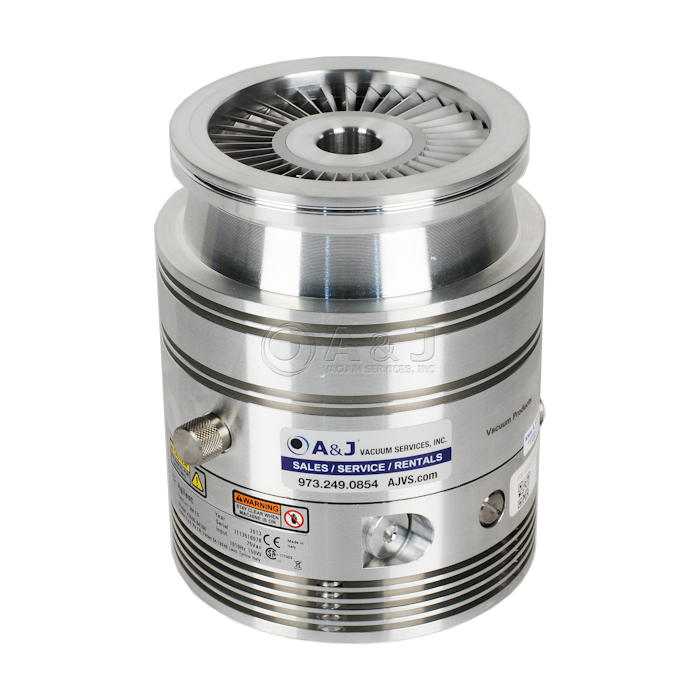

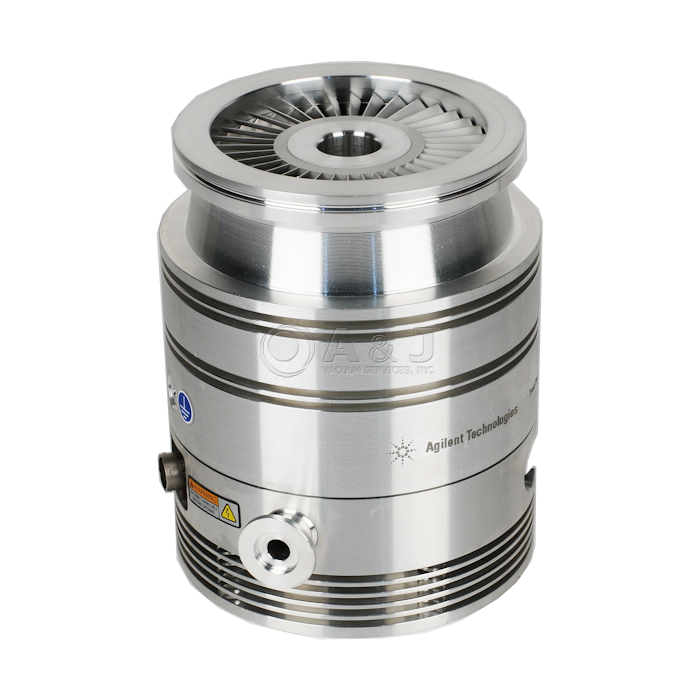

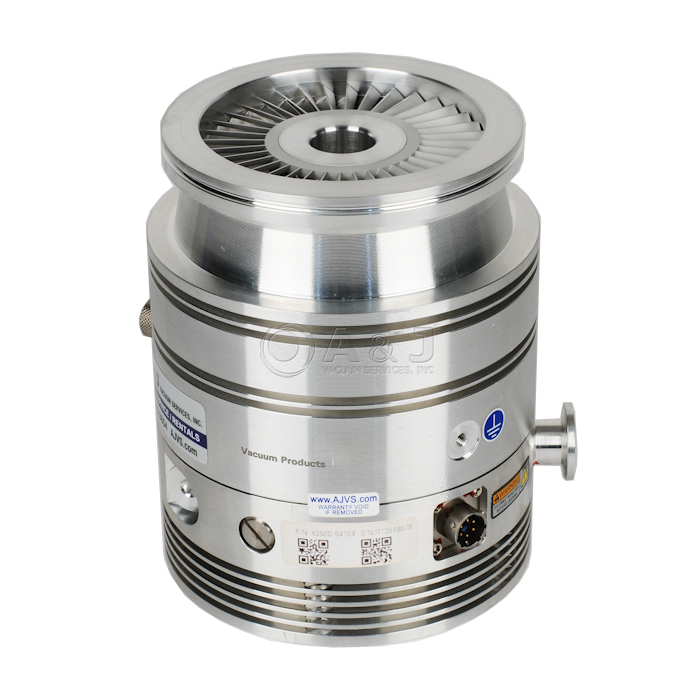

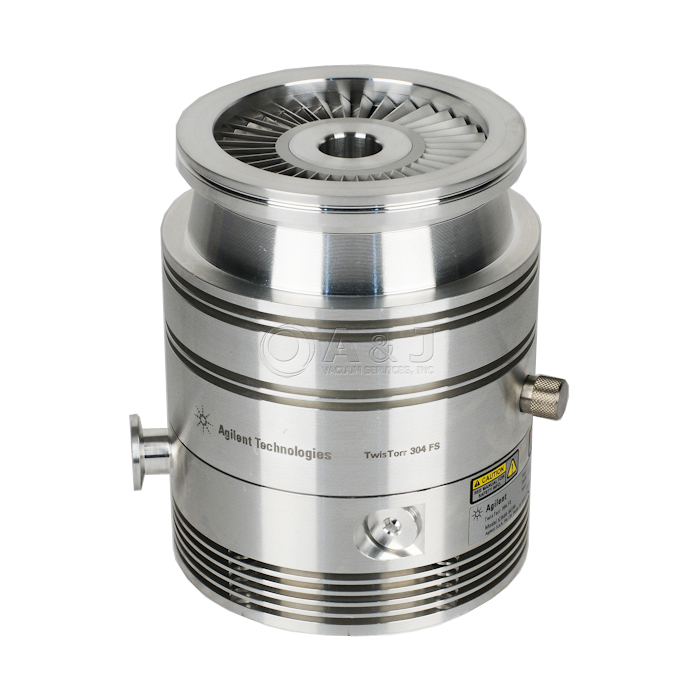

Agilent TwisTorr304 FS Turbo Pump with ISO 100, 250 l/sec Pumping Speed Air Cooled, X350064104, special pump used in Agilent’s 5977 GCMS Mass Spec.
Agilent TwisTorr 304 Overview
This TwisTorr304 is a special pump used in Agilent 5977 GCMS Mass Spectometers.
The Agilent Varian TwisTorr 304 FS is a Turbo Molecular pump with ISO 100 "X3500-64104" for high and ultra-high vacuum applications. Agilent Varian TwissTor 304 FS is a replacement for well known Varian TV 301 9698918 Turbo Pump. TwissTor 304 FS has new and Improved floating suspension bearings. Twisstor Drag stage technology create high compression rations for gases like Helium and Hydrogen to deliver high tolerance of forline pressure, permiting use of smaller backing pump.
TwisTorr 304 is able pump any type of non-corrosive gas or gas compound.
Agilent Varian TwisTorr 304 FS pumping action is obtained through a high speed turbine (max. 60000 rpm) driven by a high-performance 3-phase electric motor. The TwisTorr 304 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.

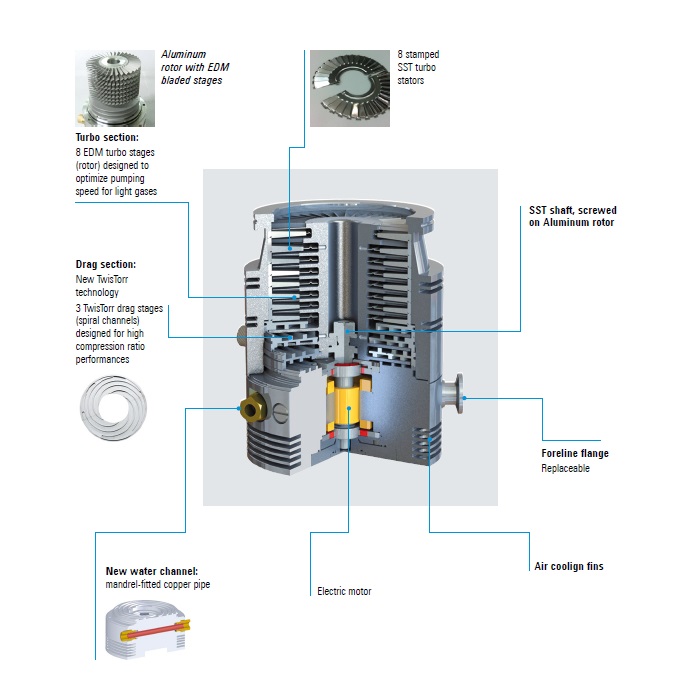

The Agilent Varian TwisTorr 304 FS X3500-64104 pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 3 TwisTorr drag stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The TwisTorr stages are in the form of three disks.
Recomended Agilent Varian Forline Backing Pump is Varian Agilent SH-110 P/N EXSH01101UNIV Dry Pump, or Agilent DS-102 P/N 9499315 Rotary Vane Pump
The TwisTor 304 FS turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. Varian TwisTorr 304 stators are in the form of selfpositioning machined disks. On each disk there are parallel spiral pumping channels designed to pump in centrifugal direction on one side and in centripetal direction on the other side. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1010 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Ordering Info for Agilent Varian TwisTorr 304 FS: X3500-64104
Agilent Varian TwisTorr Applications Include:
- Mass Spectrometry Time of Flight (TOF Systems)
- Gas Chromatography Mass Spectometry (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- ICP-MS Mass Spectrometry
Industrial Applications:
- Optical Coating
- Metal Coating
- High Vacuum Furnaces
- LCD Screens manufature
- Solid State Media Storeage
- Semiconductor process
- Gas Analysis
- Surface Analysis
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development

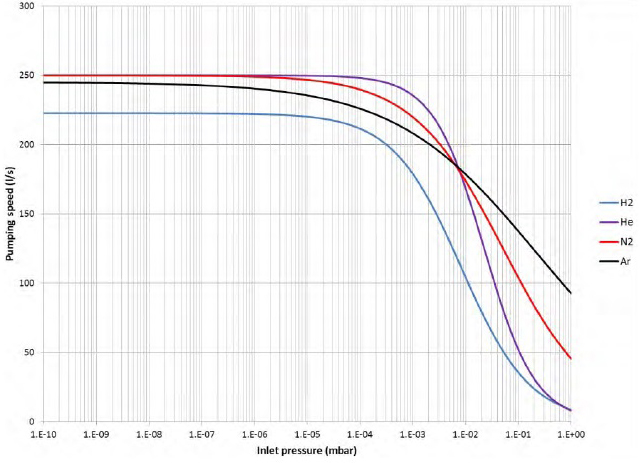

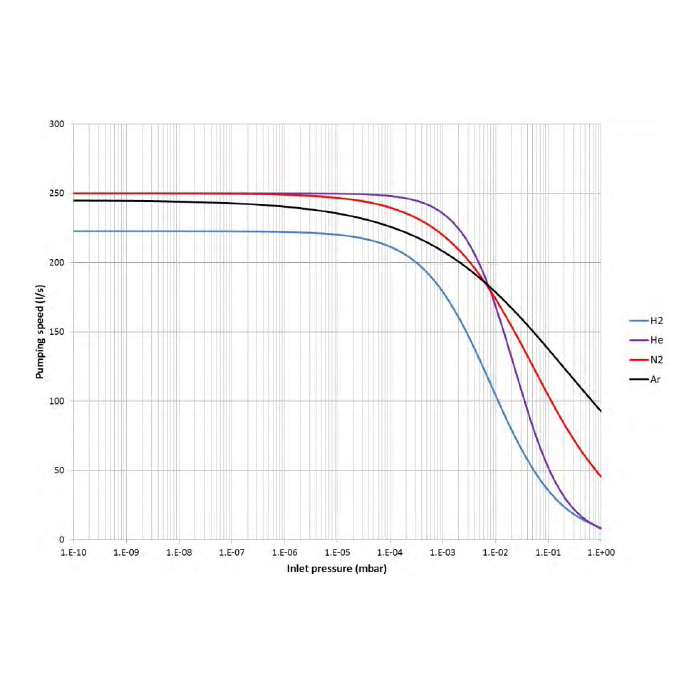

Agilent Pumping Speed vs. Inlet Pressure:

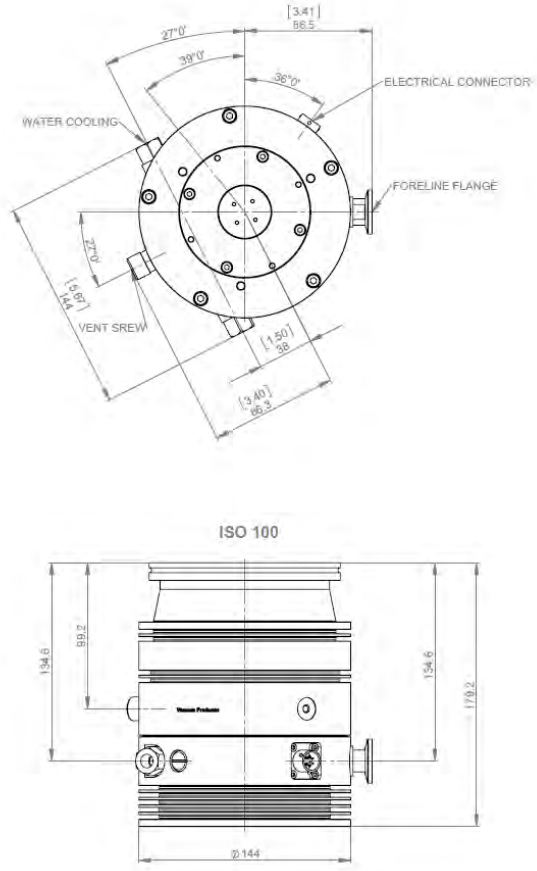

Agilent TwisTorr 304 Dimensions:
Click Here for Agilent TwisTorr 304 FS Manual
A&J Vacuum also repair / rebuild and service all Agilent Instrument TwisTorr 304 X3500-64000 Pumps Vacuum Pumps and Agilent Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Agilent TwisTorr304 FS Turbo Pump with ISO 100, 250 l/sec Pumping Speed Air Cooled, X350064104, special pump used in Agilent’s 5977 GCMS Mass Spec.

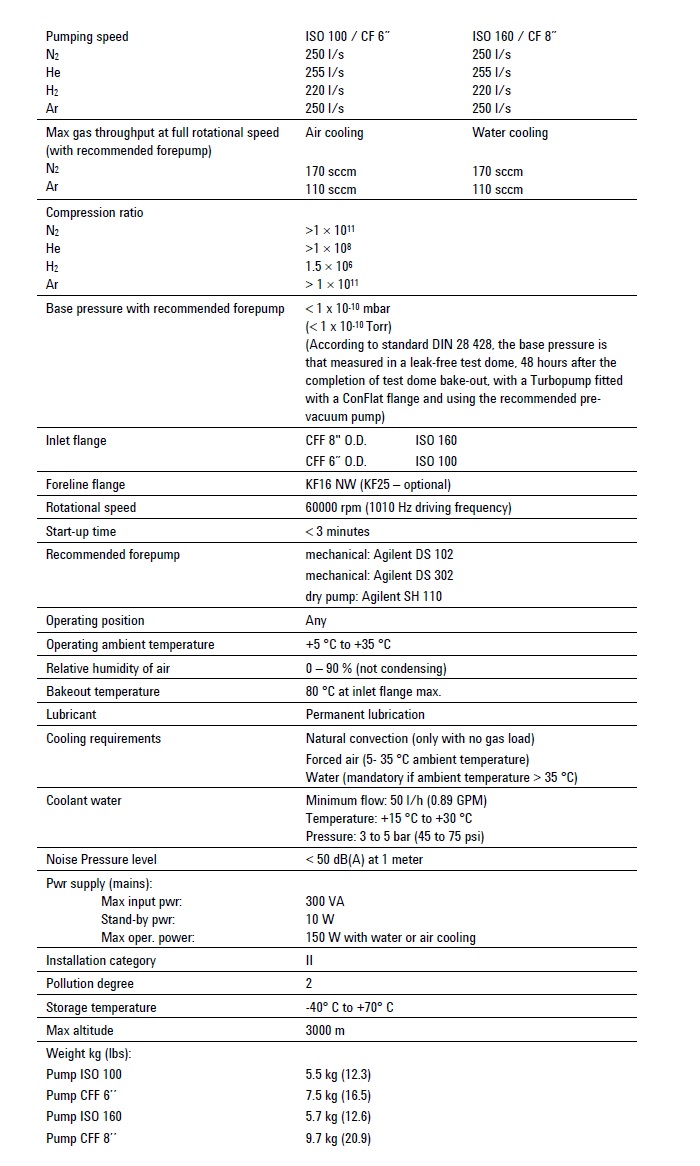

Agilent TwisTorr 304 Technical Data
Click Here for Agilent TwisTorr 304 FS Manual
A&J Vacuum also repair / rebuild and service all Agilent Instrument TwisTorr 304 X3500-64000 Pumps Vacuum Pumps and Agilent Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Agilent 5977 Series MSD Maintenance Manual Agilent MSD
Agilent_TwisTorr_304_FS_Turbo_Pump_Manual.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
