Overview:

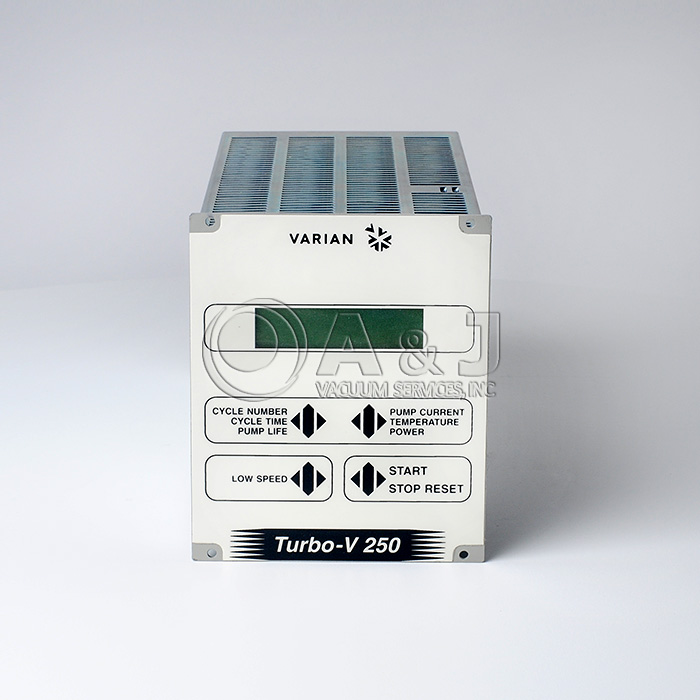

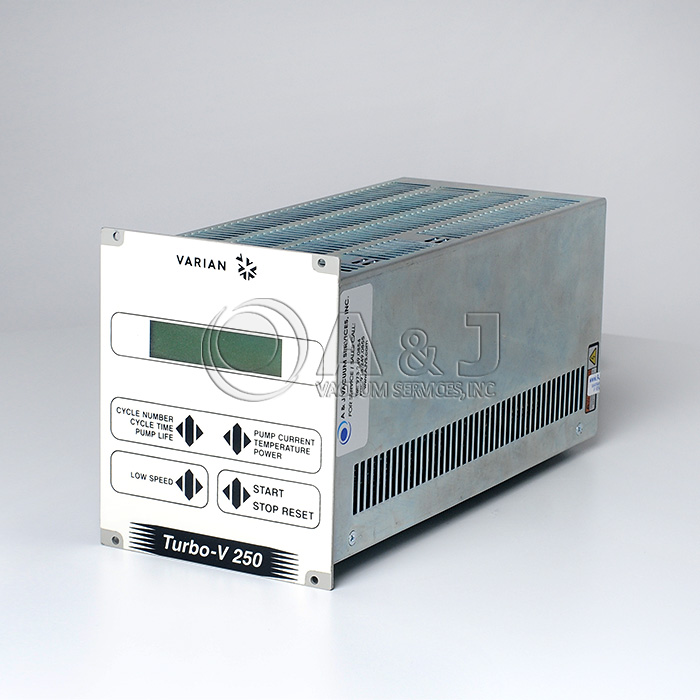

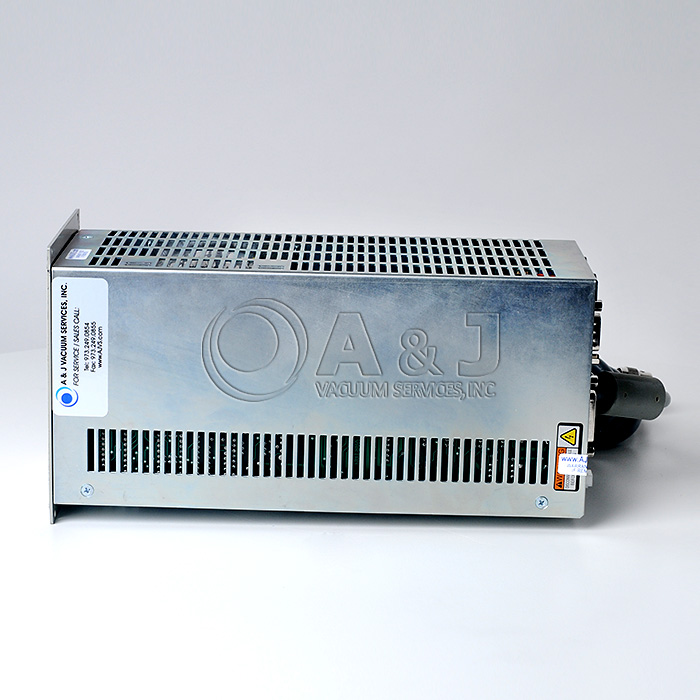

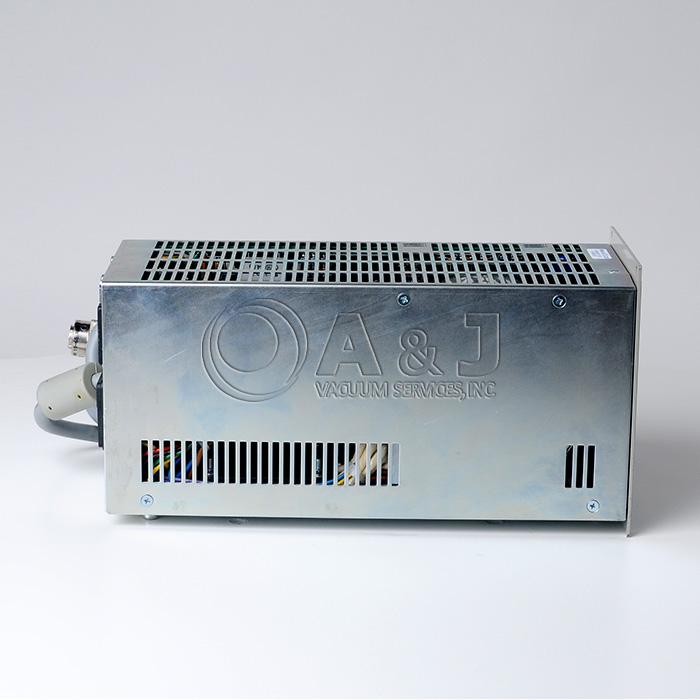

The models 969-9423 and 969-9523 are provided with a front panel with an LCD alphanumeric display to indicate the operating conditions/parameters of the Turbo-V pump and a keyboard, and a rear panel with input/output connectors. The model 969-9425 has the right panel with pump connector and hand held terminal connector, and the left panel with input/output connector, mains socket, forepump and vent coil output and fan connector. The following figure is a picture of the Turbo-V controllers. The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:
The power supply converts the single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump. The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump. Moreover, it manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation. A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time.
Technical Specifications:
Input: Voltage Frequency Power | 100, 120, 220, 240 Vac ±10%, 1-phase 47 to 63 Hz 450 VA maximum |
Output: Voltage Frequency Powe | 54 Vac nominal ±10%, 3-phase 933 Hz, ±2% 150 W maximum |
Operating temperature | 0 °C to ° |
Storage temperature | -20 °C to ° |
Fuse (mains) | 2 x T3A (slow blow) disregarding the main |
P1 optically insulated input J2 optically insulated output | Minimum ON 3 mA Maximum 5 mA 24 Vdc, 60 m |
P6 output fan | 100 mA |
J7 output (forepump coil, etc.) | 120 Vac, 1A disregarding the mains |
Radio interference suppression | EN 55011 class A group 1 IEC1000-4-2, 1000-4-3, 1000-4-4 |
Safety standard | EN 61010-1 |
Weight: Model 969-9423 and 969-9523 Model 969-9425 | 4.5 Kg (10 lbs) 4 Kg (8 lbs) |
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
