- Dual-Stage, High Performance Rotary Vane Pump
- Three-Phase Motor w/Various Voltage Settings
- Integrated Temperature Sensor (3TF)
- Integrated Gas Ballast & Safety Valve

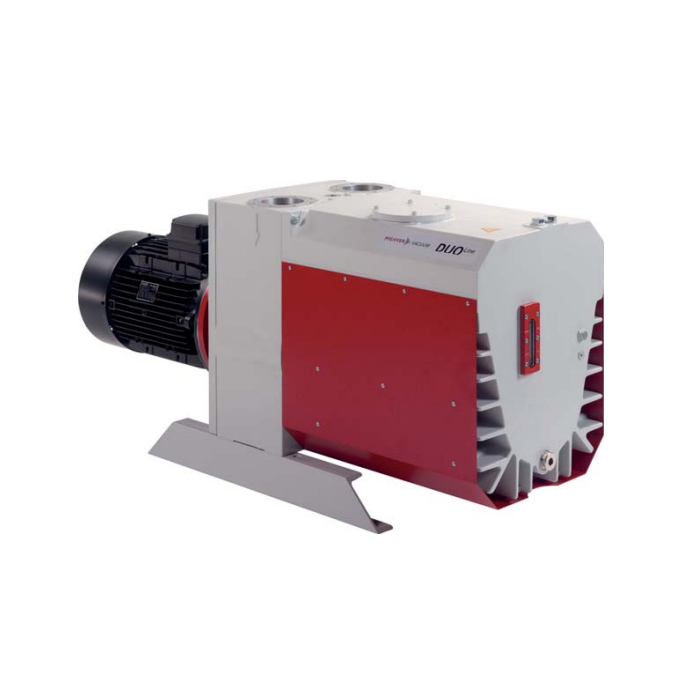

Pfeiffer Vacuum Duo 255 M Vacuum Pump, Dual Stage, 3-phase motor, 3TF, 230/400 V, 50 Hz; 265/460 V, 60 Hz, PKD48152 / PK D48 152
Pfeiffer DuoLine 255 M, 3-Phase Motor Rotary Vane Pump - Product Overview:
The Pfeiffer Duo 255 M (utilizing a three-phase motor) is a dual-stage rotary vane pump with a pumping speed of 255 cubic meters per hour (m^3/h).
DuoLine rotary vane pumps are ideally suited to cover applications in the low-to-medium vacuum range with pressures of up to 20^(-3) mbar. Our Pfeiffer DuoLine vacuum pumps offer reliable operation for critical industrial applications including drying processes, metallurgical processes, and resin potting and casting systems – serving either as a standalone pump or backing pump in our roots-pumping and turbo-pumping stations.
The use of a magnetic coupling minimizes maintenance requirements, contributing to considerable per-pump cost savings resulting from less-frequent maintenance intervals. The product likewise includes a temperature sensor (3TF) for enhanced protection.
The DuoLine 255 is a powerful vacuum, to be used exclusively for industrial applications. The product comes equipped with an integrated gas ballast and safety valve. Various motor voltages afford worldwide employment of the product. No non-ferrous metals are included within the DuoLine 255.
Pfeiffer Duo 255 (Three-Phase Motor) Key Features & Attributes:
- Dual-Stage, High-Performance Rotary Vane Pump w/ Pumping Speed of 255 m^3/h
- 3-Phase Motor for 190-210/330-365 V (± 5 %) 50 Hz or 200-230/360-400 V (± 5 %) 60 Hz Supply Voltages
- Integrated Temperature Sensor (3TF) for Optimum Motor Protection
- Integrated Gas Ballast and HV Safety Valve
- Ideally Utilized for Low-to-Medium Intensity Vacuum Applications
- Special Feature: Various Motor Voltages for Worldwide Standardization
Pfeiffer Rotary Vane Pumps - Technical Information:
Pfeiffer Vacuum manufactures some of the most widely-utilized varieties of advanced rotary vane used in a variety of industrial applications in the twenty-first century, including laboratory processes, chemical and process engineering, among others. These products are ideally utilized for the low-to-medium intensity vacuum range. Pfeiffer vacuum pumps are especially known for their durability and wide range of application.
A rotary vane pump functions as a displacement pump, creating a low-pulsation suction volume flow. Rotary vane pumps include an eccentrically-supported rotor with two rotating vanes, encased and revolving within a housing. The Pfeiffer Rotary Vane Pumps offered to our clients are oil-lubricated (wet-version pumps); these operating fluids help to enhance the insulation of pump components and ensure maximum durability and efficiency of the product.
We offer both single-stage and dual-stage Pfeiffer Rotary Vane Vacuum Pumps on our website. Single-stage pumps are the preferred choice for low-intensity vacuum applications, while dual-stage pumps are the recommended choices for the medium and upper intensity range of vacuum applications.
A&J Vacuum services and repairs Pfeiffer Duo 255 Pumps along with all other Pfeiffer Rotary Vane and Turbo Pumps offered on our website. Please contact us for additional information about our service program or visit http://www.ajvs.com/service.php to access our Service page. We likewise offer emergency service and repair upon request. If you have any questions or would like to obtain additional information, please call A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum Duo 255 M Vacuum Pump, Dual Stage, 3-phase motor, 3TF, 230/400 V, 50 Hz; 265/460 V, 60 Hz, PKD48152 / PK D48 152
| Emission sound pressure level without gas ballast at 50 Hz | 75 dB (A) |

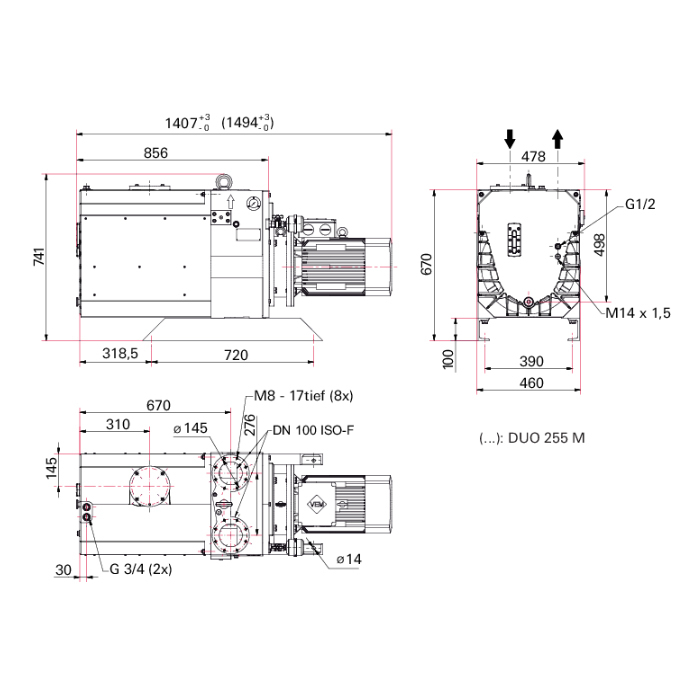

| Flange (in) | DN 100 ISO-F |
| Flange (out) | DN 100 ISO-F |
| Leak rate safety valve | ≤ 1 · 10-4 mbar l/s |
| Mains requirement: voltage (range) | 190-210/330-365 V (± 5 %) 50 Hz ; 200-230/360-400 V (± 5 %) 60 Hz |
| Operating fluid | P3 |
| Operating fluid filling | 25 l |

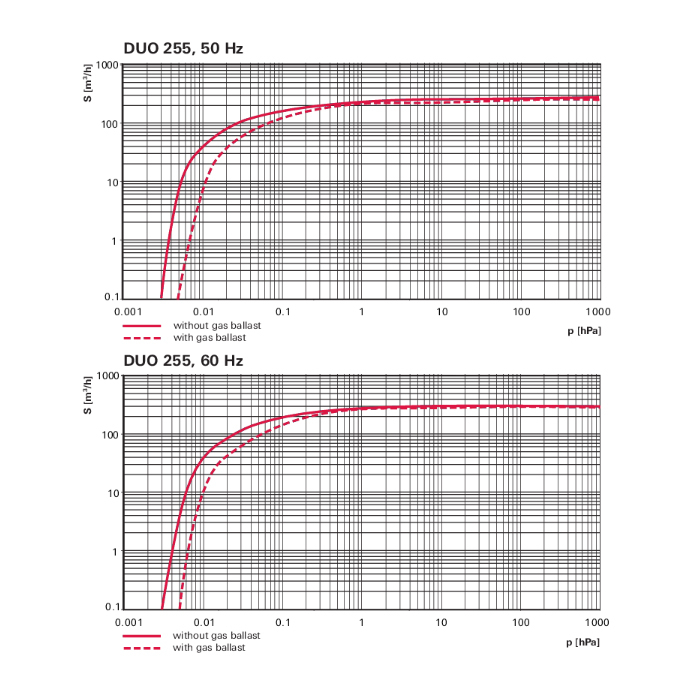

| Pumping speed at 50 Hz | 250 m3/h |
| Pumping speed at 60 Hz | 300 m3/h |
| Rated power 50 Hz | 7.5 kW |
| Rated power 60 Hz | 9 kW |
| Rotation speed at 50 Hz | 1000 rpm |
| Rotation speed at 60 Hz | 1200 rpm |
| Switch | No |
| Ultimate pressure with gas ballast | 6 · 10-3 mbar |
| Ultimate pressure without gas ballast | 3 · 10-3 mbar |
| Weight | 360 kg |

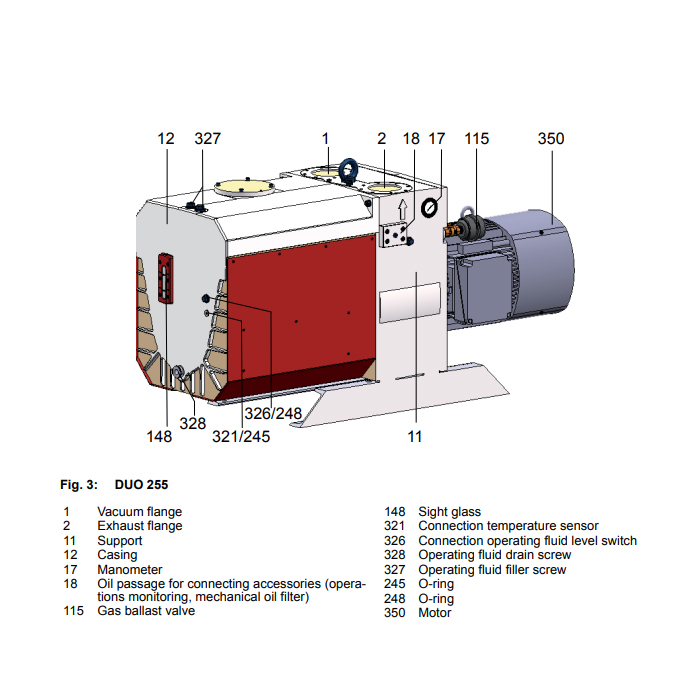

Pfeiffer DUO 255 Operating Instructions with parts exploded view, DUO255
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
