- Inlet Flange: DN 200 ISO-K
- Outlet Flange: DN 40 ISO-KF
- Pumping Speed: N2: 1450 l/s
- Compression Ratio: N2: > 1 x 108
Pfeiffer Vacuum HiPace 1800UC Turbo Vacuum Pump with TC 1200 Turbo Pump Controller, Upside Down Version, Corrosive, DN 200 ISO-K, PMP04078
Pfeiffer HiPace 1800UC Overview:
The Pfeiffer HiPace Series is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
Pfeiffer HiPace 1800UC Features:
- Powerful Turbo Pump with a pumping speed of up to 1450 l/s (N2)
- Integrated TC 1200 Drive Electronics with Power Supply
- Water Cooling
- Integrated sealing gas system with electric sealing gas valve - 24 V DC
- Interfaces: RS-485, Remote (Profibus/DeviceNet on request)
- Extensive Accessories Available

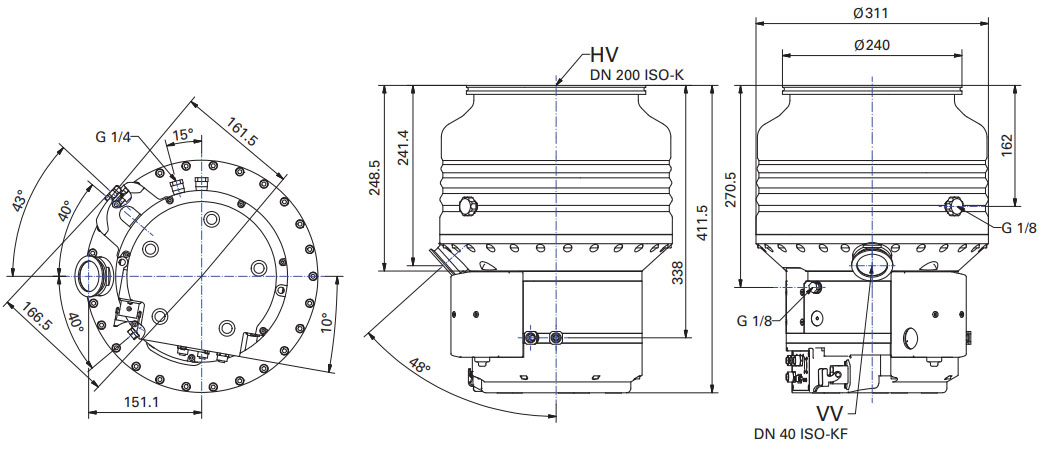

Pfeiffer HiPace 1800UC Dimensions:
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum HiPace 1800UC Turbo Vacuum Pump with TC 1200 Turbo Pump Controller, Upside Down Version, Corrosive, DN 200 ISO-K, PMP04078
Pfeiffer HiPace 1800 UC Technical Data:
| Inlet Flange: | DN 200 ISO-K |
| Outlet Flange: | DN 40 ISO-KF |
| Pumping Speed: |
N2: 1450 l/s |
|
He: 1650 l/s |
|
|
H2: 1700 l/s |
|
|
Ar: 1370 l/s |
|
| Compression Ratio: |
N2: > 1 x 108 |
|
He: 3 x 105 |
|
|
H2: 2 x 104 |
|
|
Ar: > 1 x 108 |
|
| Rotational Speed: | 31500 min-1 (+/- 2%) |
| Weight: | 34 kg / 75 lbs |
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer_HiPace_1800_Manuals.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer Vacuum HiPace 1800UC Turbo Vacuum Pump with TC 1200 Turbo Pump Controller, Upside Down Version, Corrosive, DN 200 ISO-K, PMP04078
Pfeiffer HiPace 1800UC Overview:
The Pfeiffer HiPace Series is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
Pfeiffer HiPace 1800UC Features:
- Powerful Turbo Pump with a pumping speed of up to 1450 l/s (N2)
- Integrated TC 1200 Drive Electronics with Power Supply
- Water Cooling
- Integrated sealing gas system with electric sealing gas valve - 24 V DC
- Interfaces: RS-485, Remote (Profibus/DeviceNet on request)
- Extensive Accessories Available
Pfeiffer HiPace 1800UC Dimensions:
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Specifications
Pfeiffer Vacuum HiPace 1800UC Turbo Vacuum Pump with TC 1200 Turbo Pump Controller, Upside Down Version, Corrosive, DN 200 ISO-K, PMP04078
Pfeiffer HiPace 1800 UC Technical Data:
| Inlet Flange: | DN 200 ISO-K |
| Outlet Flange: | DN 40 ISO-KF |
| Pumping Speed: |
N2: 1450 l/s |
|
He: 1650 l/s |
|
|
H2: 1700 l/s |
|
|
Ar: 1370 l/s |
|
| Compression Ratio: |
N2: > 1 x 108 |
|
He: 3 x 105 |
|
|
H2: 2 x 104 |
|
|
Ar: > 1 x 108 |
|
| Rotational Speed: | 31500 min-1 (+/- 2%) |
| Weight: | 34 kg / 75 lbs |
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
