The Edwards WRG-S-DN40CF Wide Range Gauge family offers the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar with a linear output. WRG Gauge P/N D14703000 Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications.
The Edwards WRG Vacuum Gauge has many advanced features, including a new patented striker, easy pushbutton calibration and set point controls and comprehensive diagnostics.
The Edwards WRG Gauge is a low maintenance and cost effective vacuum management solution when used either with a Edwards Gauge controller or directly integrated into the vacuum system controls.

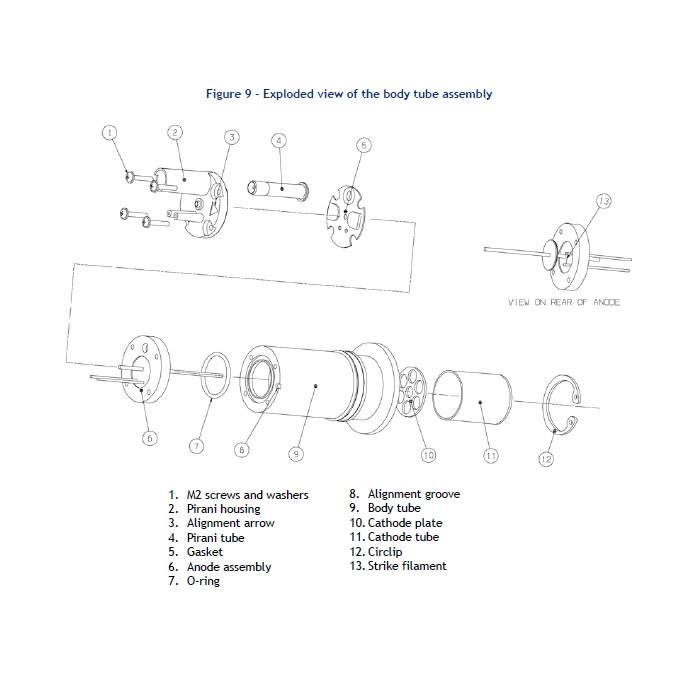

The Edwards WRG vacuum gauge has two gauges built in one, using Pirani technology for the upper pressure ranges, with a seamless switch over to an inverted magnetron for the lower range.
For ease of operation and more accurate pressure reading, the vacuum setting of the Edwards Pirani gauge is set automatically, while a single pushbutton sets atmospheric pressure. The Edwards WRG-S-DN40CF has an easy to program set-point which operates over the entire measurement range.
The Edwards WRG magnetron Gauge uses an advanced technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions. To optimize the lifetime of the gauge, the magnetron HT voltage is reduced after ignition and the magnetron operates with a low discharge current.
The Edwards WRG-S-DN40CF meets EMC requirements for both light industrial emissions and heavy industrial immunity.
Click here for Edwards WRG-S-NW25 Operation Manual D14701000
Click here for Edwards WRG Series Broshure
A&J Vacuum services and repairs Edwards Vacuum Measurement Transmitters, along with all other Edwards Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

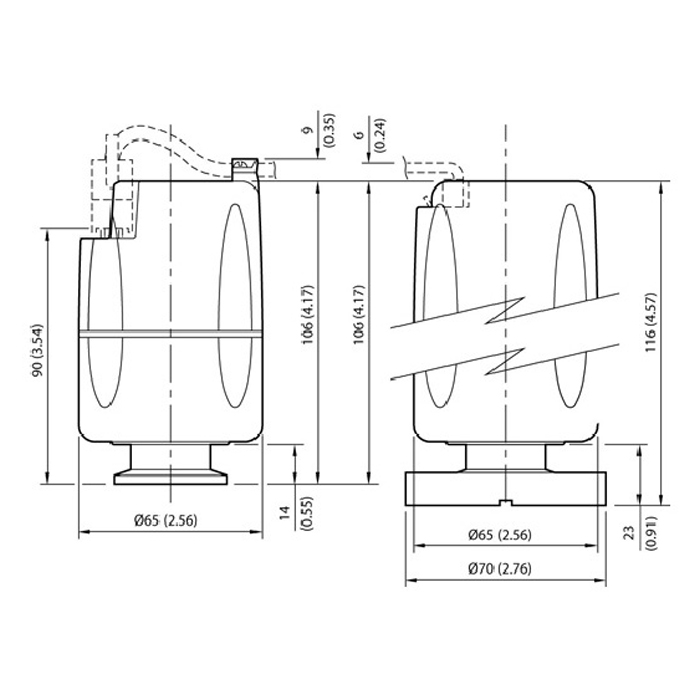

Pressure range | Atmosphere to 10-9 mbar/Torr |
Accuracy * | Typically ±15% <100 mbar and ±30%<10-3mbar |
Maximum over pressure | 6 bar absolute (87 psia) |
Power supply | +14.5 to +36 V d.c. |
Power consumption | 2 W maximum |

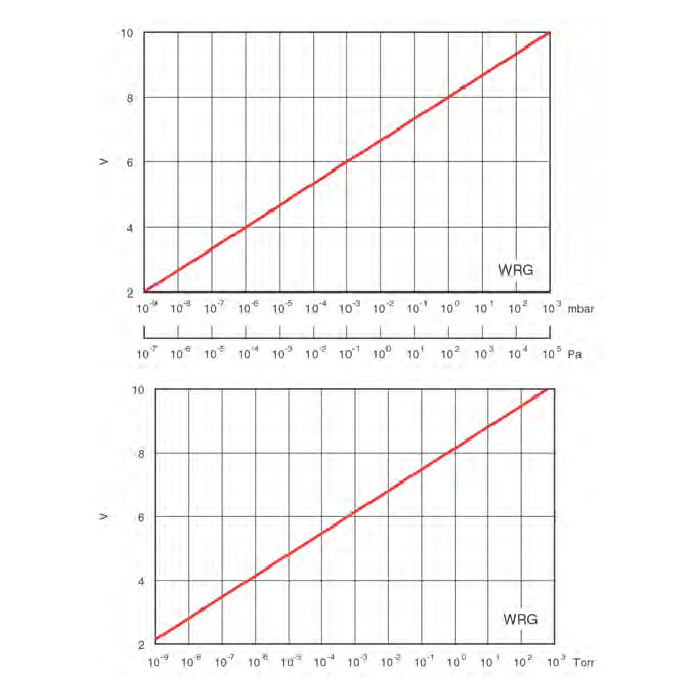

Output signal | 1.8 to 10.2 V d.c. |
Adjustments | Atmosphere and setpoint |
Set point | Open collector transistor |
Maximum voltage | 40 V d.c. |
Current | 100 mA maximum |
Temperature range | |
Operating | +5 to +60 oC |
Storage | 0 to +70 oC |
Materials exposed to vacuum (Both NW and CF versions) | Stainless steel (AISI 304, 316, 321, 347), Fluoroelastomer, soda lime glass, Tungsten, trace of Nickel and Nickel Iron |
Internal volume | 26 cm3 |
Weight | 0.8 kg |
External interface connector | 8-way FCC68 / RJ45 Socket |
Interface cables | Use range of active gauge cables |
Standards | |
Electromagnetic compatibility | EN 61326 Industrial Location, Class B emissions |
Enclosure rating | IP40 |
Pin allocation ** | |
1. Power supply positive | 5. Signal common |
2. Power supply common | 6. Set-point output |
3. Gauge output | 7. Atmosphere calibration |
4. Gauge identification | 8. Not connected |
Click here for Edwards WRG-S-DN40CF Operation Manual D14703000
