- Pressure range Atmosphere to 10-9 mbar/torr
- Maximum overpressure; 6 bar absolute (145 psi)
- Operating Temperature; +5 to +60 *C
Edwards WRG-S Wide Range Gauge, Electrode Kit Assembly D14701802
Overview
The Edwards WRG-S Wide Range Gauge Electrode Kit Assembly D14701802 allows user to replace and repair WRG Gauge on site.
WRG Gauge family offers the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar with a linear output. WRG Gauge P/N D14701803 Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications.
The Edwards WRG Vacuum Gauge has many advanced features, including a new patented striker, easy pushbutton calibration and set point controls and comprehensive diagnostics.
The Edwards WRG Gauge is a low maintenance and cost effective vacuum management solution when used either with a Edwards Gauge controller or directly integrated into the vacuum system controls.
Edwards WRG Technology
The Edwards WRG vacuum gauge has two gauges built in one, using Pirani technology for the upper pressure ranges, with a seamless switch over to an inverted magnetron for the lower range.
For ease of operation and more accurate pressure reading, the vacuum setting of the Edwards Pirani gauge is set automatically, while a single pushbutton sets atmospheric pressure. The Edwards WRG-S has an easy to program set-point which operates over the entire measurement range.
The Edwards WRG magnetron Gauge uses an advanced technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions. To optimize the lifetime of the gauge, the magnetron HT voltage is reduced after ignition and the magnetron operates with a low discharge current.
The Edwards WRG-S meets EMC requirements for both light industrial emissions and heavy industrial immunity.
Main WRG Gauge Features
- Microprocessor signal processing gives seamless transition between Pirani and magnetron outputs as well as linear output (log pressure scale)
- D-type version including cable strain relief and enhanced ingress protection - IP44
- Low magnetic field version (SL) available for sensitive applications e.g. mass spectrometry and electron microscopy
- Easily programmed set point covering entire measuring range
- Magnetron uses an advanced patented technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions
- Automatic vacuum setting of Pirani gauge element
- Single push button atmosphere setting
- Extended service intervals and gauge lifetime, through reduction of HT voltage after ignition and low discharge current
- Ultra compact, featuring recessed electrical connector
- Easy service; both Pirani and magnetron elements are individually replaceable
- Comprehensive failure mode diagnostics facility
Click here for Edwards WRG-S Operation Manual D14703801http://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf
Click here for Edwards WRG Series Broshurehttps://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf
A&J Vacuum also repair / rebuild and service all Edwards WRG Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
Edwards WRG-S Wide Range Gauge, Electrode Kit Assembly D14701802

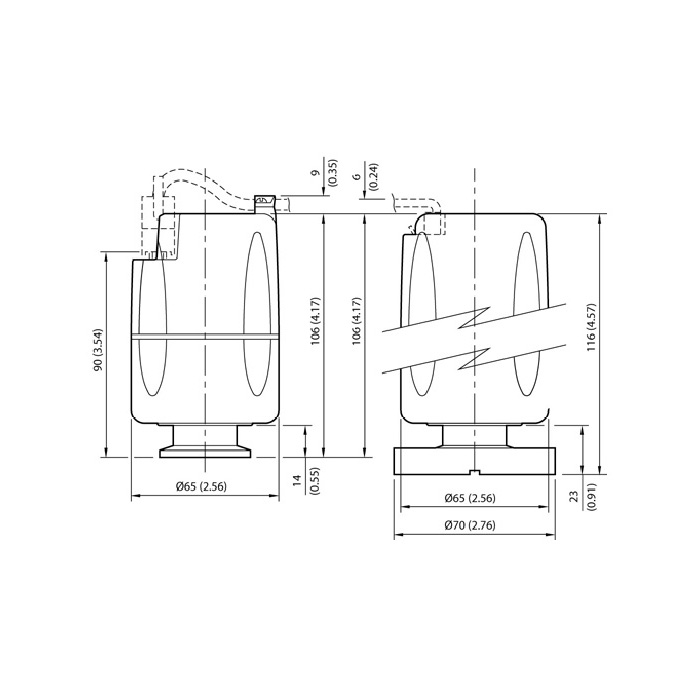

Technical Data;
- Pressure range Atmosphere to 10-9 mbar/torr.
- Maximum overpressure; 6 bar absolute (145 psi)
- Power Supply; +14.5 to +36V d.c. (max 1V ripple)
- Set Point; Open collector transistor
- Maximum Voltage; 40V d.c.
- Operating Temperature; +5 to +60 *C
- Storage Temperature; 0 to +70*C
- Internal volume - 26cm3
- External interface connector - 8-way FCC68/RJ45 socket
Materials exposed to vacuum
-
NW25 versions - Stainless steel 304 & 316, 321 & 347, Fluoroelastomer, soda lime glass, Tungsten, trace of Nickel and Nickel Iron
-
DN40CF - Stainless steel (AISI 304 and 306), copper, ceramic, very small amount of copper braze
Standards:
-
Electromagnetic compatibility - EN 61326 (Class B Emissions)
-
Enclosure rating - IP40
Weight:
-
AIM-X NW25 - 810 g
-
AIM-XL NW25 - 860 g
-
AIM-X DN40CF - 1090 g
-
AIM-XL DN40CF - 1140 g
Click here for Edwards WRG-S Operation Manual D14703801 https://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf
Click here for Edwards WRG Series Broshure https://www.ajvs.com/library/Edwards%20WRG%20Gauge%20-%20Instruction%20Manual.pdf
A&J Vacuum also repair / rebuild and service all Edwards WRG Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
Edwards WRG Gauge Instructions Manual D14701000, D14703000, D1470100C, D1470300C
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
