- One Rotatable Flange
- Flexible
- Stainless Steel
- 35 x 1000mm
Flexible Hose - 1 Flange Rotatable, CF 35 (275) x 1000 mm, Stainless Steel
Overview:
New Flexible Hose - 1 Flange Rotatable is available in the following sizes: CF 16 x 250mm, CF 16 x 500mm, CF 16 x 750mm, CF 16 x 100mm, CF 35 x 250mm, CF 35 x 500mm, CF 35 x 750mm, CF 35 x 1000mm, CF 63 x 250mm, CF 63 x 500mm, CF 63 x 750mm, CF 63 x 1000mm, CF 100 x 250mm, CF 100 x 500mm, CF 100 x 750mm, CF 100 x 1000mm
New Flexible Hose is made out of Stainless Steel.
The high sealing and the low leak rate performance of the CF Flange connection is due to the gasket material.
When the CF Flange is correctly assembled, the knife edge is compressed onto the flat copper gasket forcing the seal material outwards to the flange.
The gasket is entirely enclosed and will not edge out even under the highest bakeout temperatures.
The CF Flange is offered in both rotable and nonrotatable versions, with through holes, or tapped bolt holes.

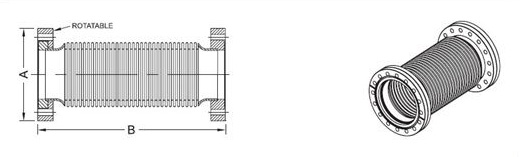

Technical Data:
- A: 2.74 in / 69.5 mm
- B: 39.37 in / 1000 mm
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Flexible Hose - 1 Flange Rotatable, CF 35 (275) x 1000 mm, Stainless Steel
Overview:
New Flexible Hose - 1 Flange Rotatable is available in the following sizes: CF 16 x 250mm, CF 16 x 500mm, CF 16 x 750mm, CF 16 x 100mm, CF 35 x 250mm, CF 35 x 500mm, CF 35 x 750mm, CF 35 x 1000mm, CF 63 x 250mm, CF 63 x 500mm, CF 63 x 750mm, CF 63 x 1000mm, CF 100 x 250mm, CF 100 x 500mm, CF 100 x 750mm, CF 100 x 1000mm
New Flexible Hose is made out of Stainless Steel.
The high sealing and the low leak rate performance of the CF Flange connection is due to the gasket material.
When the CF Flange is correctly assembled, the knife edge is compressed onto the flat copper gasket forcing the seal material outwards to the flange.
The gasket is entirely enclosed and will not edge out even under the highest bakeout temperatures.
The CF Flange is offered in both rotable and nonrotatable versions, with through holes, or tapped bolt holes.
Specifications
Technical Data:
- A: 2.74 in / 69.5 mm
- B: 39.37 in / 1000 mm
