- Unbraided Flexible Hose Coupling
- KF 40 (NW 40) Flange
- Stainless Steel
- 1000mm / 40"

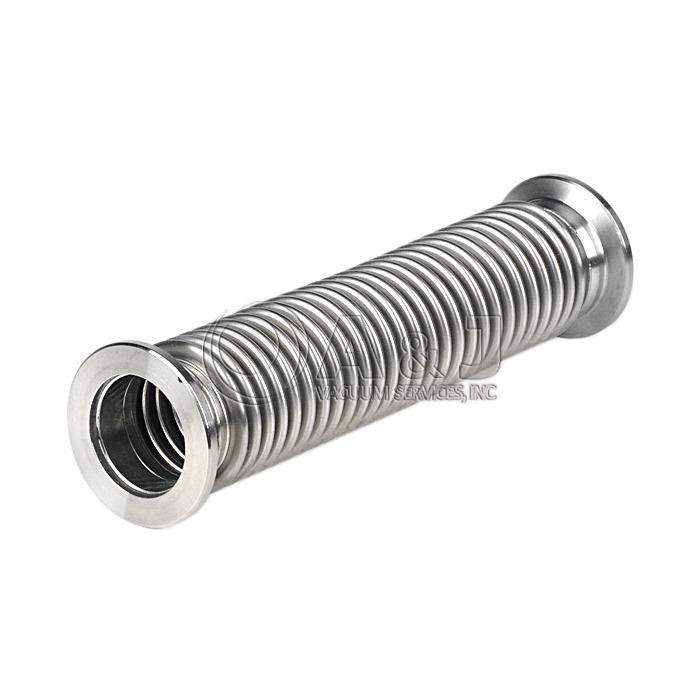

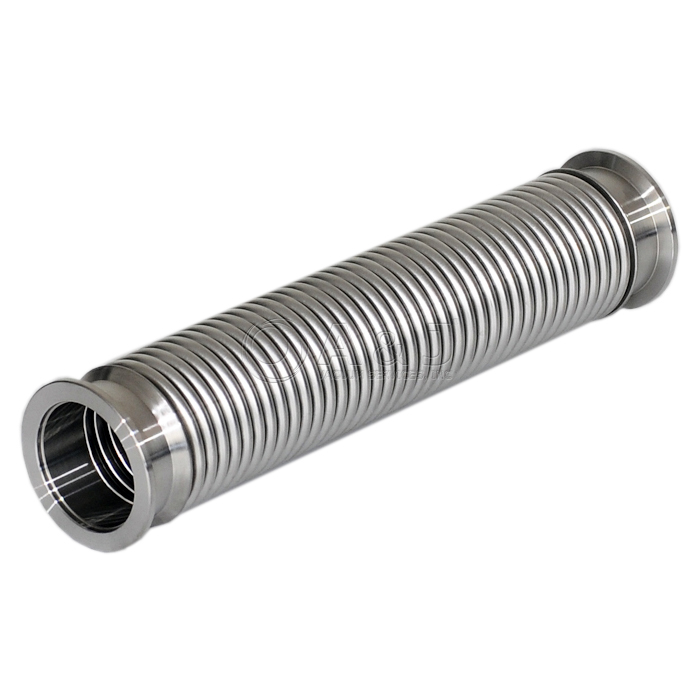

Flexible Hose Coupling, Unbraided Vacuum Hose, KF 40 (NW 40), Stainless Steel Vacuum Fitting, 40", 1000mm, PN07718
-
A: 2.17 in / 55 mm
-
B: 39.37 in / 1000 mm
-
0.2 mm wall
Overview
The KF Vacuum Hose Couplings are available in the following sizes: NW 16, NW 25, NW 40, and NW 50.
The KF 40, NW 40 Vacuum Hoses are available in the following lengths: 250 mm, 500 mm, 750 mm, and 1000 mm.
The Flexible KF-40 Hose Couplings (Also known as Flexible Bellows) are made out of 304 Stainless Steel.
KF (also referred to as NW) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.
Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your Flexible Hose Coupling, KF40 Vacuum Fitting.
Flexible Hose Coupling, Unbraided Vacuum Hose, KF 40 (NW 40), Stainless Steel Vacuum Fitting, 40", 1000mm, PN07718
Technical Data
-
A: 2.17 in / 55 mm
-
B: 39.37 in / 1000 mm
-
0.2 mm wall
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
