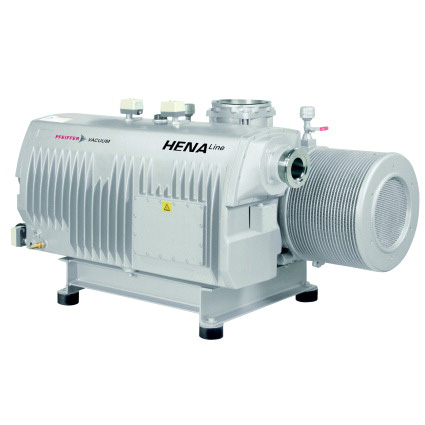

Single-stage, oil-sealed rotary vane pump with a pumping speed of 1000 m3/h
For industrial applications - very powerful. Various motor voltages afford worldwide employment. Integrated oil mist separator provides the highest degree of separation. Special vane material for long service life
Emission sound pressure level without gas ballast at 50 Hz | 82 dB (A) |
Emission sound pressure level without gas ballast at 60 Hz | 82 dB (A) |
Flange (in) | DN 160 ISO-K |
Flange (out) | DN 100 ISO-K ( 2 x ) |
Mains requirement: voltage | 400-690 V, 50 Hz ; 430-745 V, 60 Hz |
Mains requirement: voltage (range) | 380-420 V, 660-720 V (± 5 %) 50 Hz ; 380-480 V, 660-830 V (± 5 %) 60 Hz |
Nominal rotation speed at 50 Hz | 1000 rpm |
Nominal rotation speed at 60 Hz | 1200 rpm |
Operating fluid | D1 |
Operating fluid filling | 30 l |
Pumping speed at 50 Hz | 1000 m3/h |
Pumping speed at 60 Hz | 1200 m3/h |
Rated power 50 Hz | 22 kW |
Rated power 60 Hz | 25 kW |
Switch | No |
Ultimate pressure with gas ballast | 1.2 mbar |
Ultimate pressure without gas ballast | 1 mbar |
Weight | 1080 kg |
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
