- Displacement: 32.5 cfm
- Pumping Speed: 55 m3/h
- Ultimate Pressure: < 2x10-3 mbar
- Inlet Flange: DN 40 KF

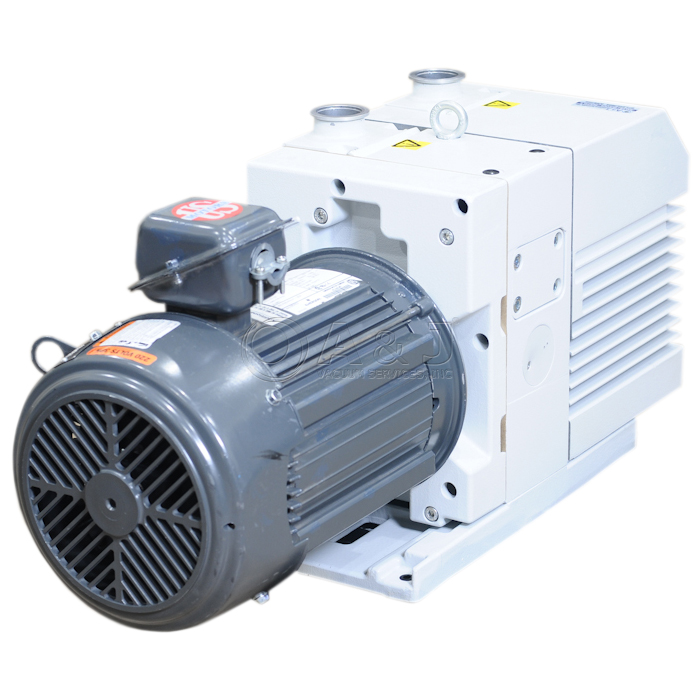

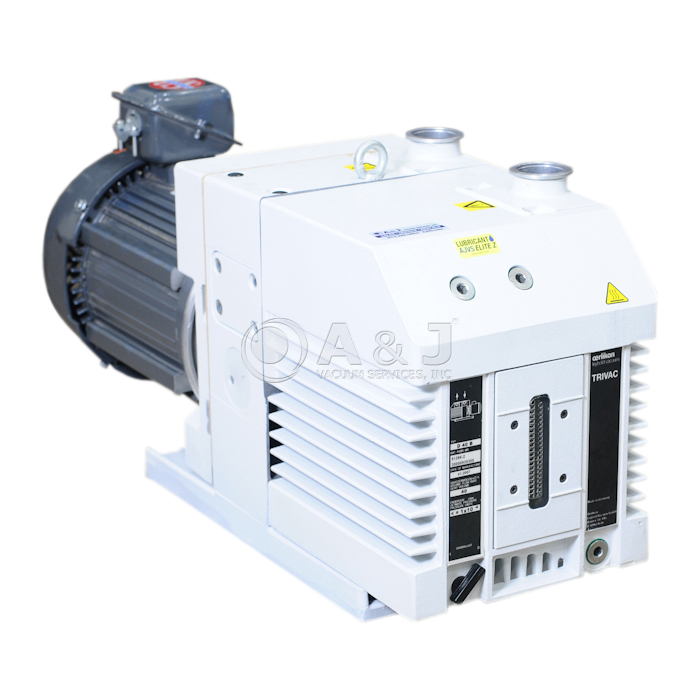

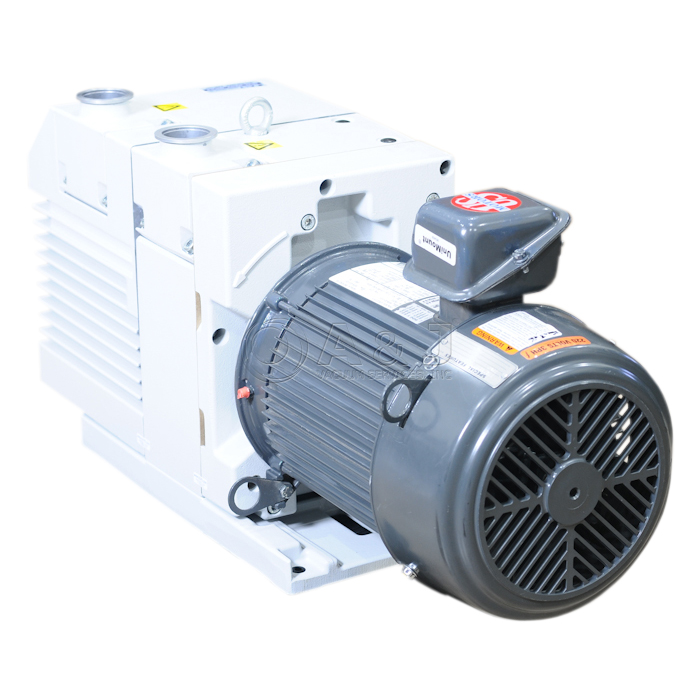

Fully remanufactured Leybold D40B TRIVAC Vacuum Pump 3-Phase 230/400V 50/60 HZ, 32.5 CFM, 912862, D 40 B, Hydrocarbon Oil
Leybold D40B TRIVAC Overview:
The LEYBOLD D 40 B TRIVAC vacuum pumps are oil-sealed rotary vane vacuum pumps. The Leybold D40B is a excelent two stage vacuum pump for vapor handling. The Leybold D40B pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D40B is perfectly suitable for many Industrial and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D40B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D40B oil requirement 1.7 L min, 2.6 L max. The TRIVAC D40 Pump has grate water vapor capacity of 1184 g/h.
Leybold D 40 B pumps are also very quiet with nise level of 57 db(A) without gass ballast, and 59 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 40 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D40B vane vacuum pumps are available as corrosive PFPE application pumps, and are called D40BCS models, Leybold Part Number 11388
Leybold D 40B Pump can be easily configured into Pump and Vacuum Pump Booster package. There are several different options and booster pumps available build vacuum puming system. Leybold Roots pump called ROVAC WA 251, WAU 251, WS 251 and WSU 251. Direct booster mounting adapter alows quick and easy booster pump installation on top of D40B Vacuum Pump.

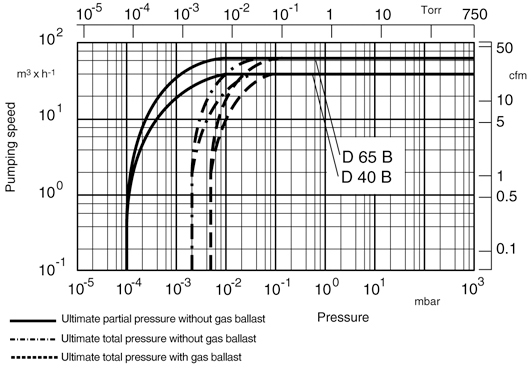

Leybold D40B TRIVAC Pumping speed:
Available D40B pump optional accessories configurations:
Leybold D 40 B Roots pump adaptor for Leybold RUVAC 151 and RUVAC 251, Part Number 16830
Leybold D40B ARS 40-64 Exhaust Filter with Lubricant Return, Leybold Part Number 18957
D40B Oil Filter Unit CFS 40-65 Part Number 10177
Leybold D40B IGS40-64 Inert Gas System, Part Number 16177
Click Here to view D40B and D65B Operation Manual to view all pump configurations
New TRIVAC D40B Pump is supplied with the following accessories:
- 1 Centering Ring
- 1 Centering ring with dirt trap
- 2 clamps DN 40 KF
- Operating instructions
- Spare parts list
- For pump protection during transit, both Inlet and exhaust ports are blanked with rubber diaphragms and supporting rings.
Typical D 40 B Vacuum pump Applications:
- Vacuum oating
- Chemistry and pharmaceuticals
- Matallurgy / Vacuum furnaces
- Lamps and tubes manufacturing
- Space simulation
- Envirment engineering
- Cooling and air conditioning industry
- As a backing pump for large turbomolecular pump systems
- Freeze drying systems
- High vacuum pumping systems

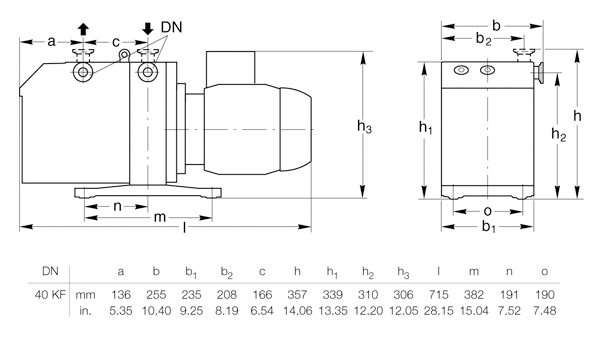

Leybold D40B Dimensions:
Click Here for Leybold D40B and D65B operation Instructions
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all Leybold D40B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully remanufactured Leybold D40B TRIVAC Vacuum Pump 3-Phase 230/400V 50/60 HZ, 32.5 CFM, 912862, D 40 B, Hydrocarbon Oil

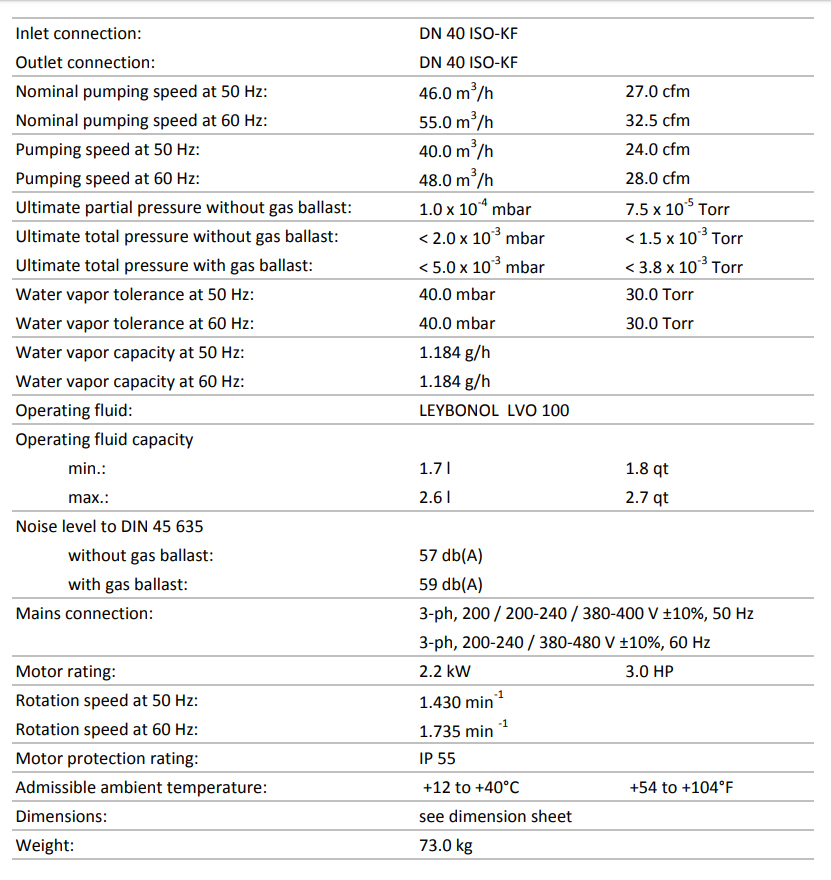

Leybold D40B TRIVAC Technical Data:
Click Here for Leybold D40B and D65B operation Instructions
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all Leybold D40B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Leybold D40B TRIVAC Vacuum Pump 3-Phase 230/400V 50/60 HZ 30 CFM, 912862, D 40 B
|
