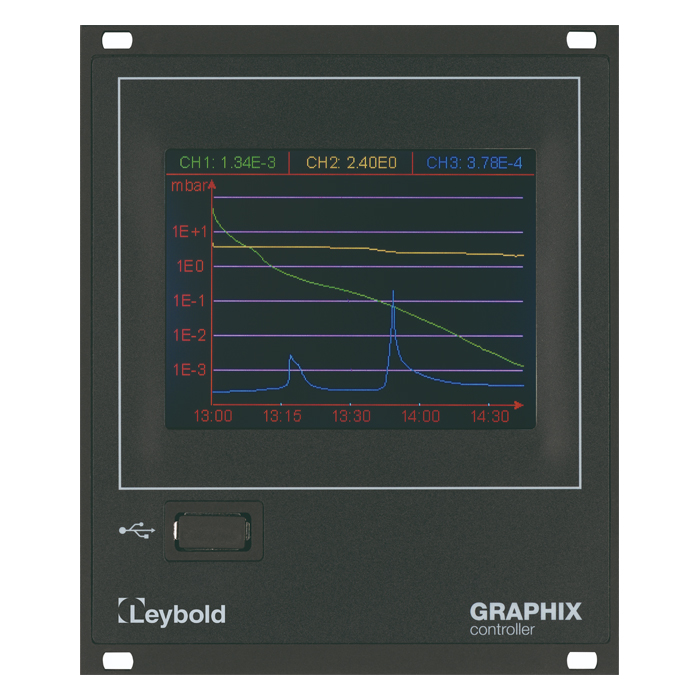

Universal 1 channel display and operating unit with persistent display of all measurement channels, suited for the active sensors of the THERMOVAC, CERAVAC, linear sensors (DU series), PENNINGVAC and IONIVAC series.
THERMOVAC
CERAVAC
Linear pressure sensors
PENNINGVAC
IONIVAC
Other brands
Click Here for Graphix One Operating Manual.pdf
Click Here for Leybold Graphix One Broshure.pdf
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Display range: | 10-10 - 2000 mbar |
Number of measurement channels: | 1 |
Possible active sensors: | CTR 90/91, CTR 100/101 series DU 200/201, DU2000/2001/2001 rel. Series TTR 90/91/96, TTR 100/101 series TTR 211/216/, TTR 911/916 series PTR 90, PTR 225 series ITR 90/200 series |
Unit of measurement: | mbar, Torr, Micron, Pascal, Psi |
Interfaces: | RS 232, RS 485 |
Relay interface: | 25 pol. Sub-D Buchse |
Relay load rating: | 1A, 30V AC/30V DC |
Mains connection: | 100-240V, 50/60Hz |
Protection class: | IP 20 |
Dimensions: (W x H x D) | 106,4 x 128,5 x 164,5 mm |
Click Here for Graphix One Operating Manual.pdf
Click Here for Leybold Graphix One Broshure.pdf
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
