Leybold Phoenix L300i represents next Generation in Helium Leak Testing. Phoenix L300i Helium Leak Detector opens up new domensions of productivity and reliability for your applications.

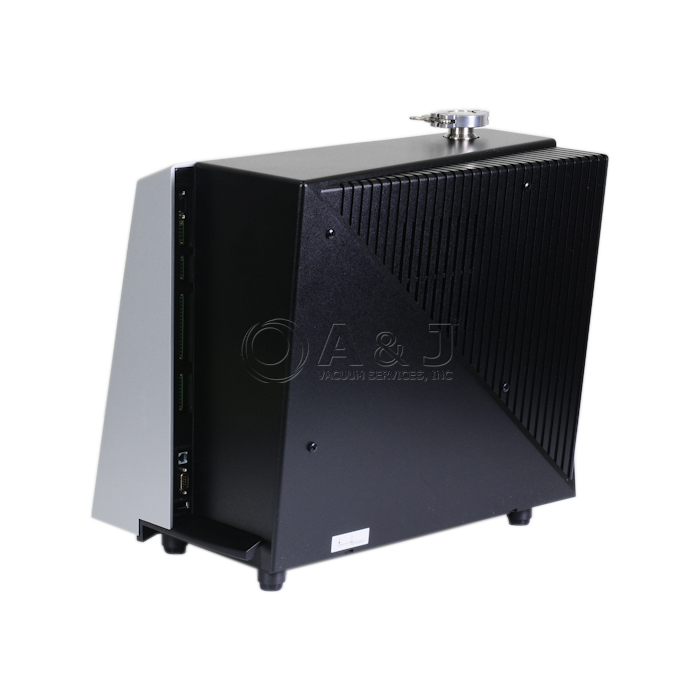

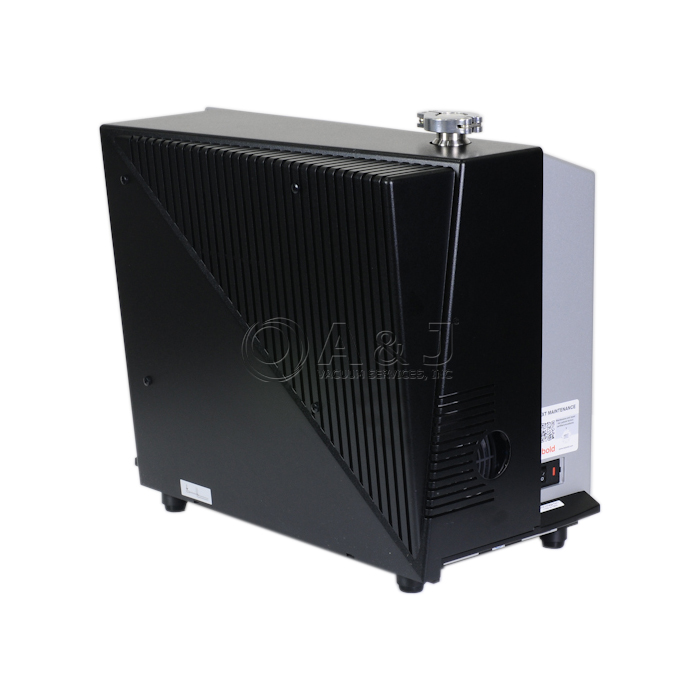

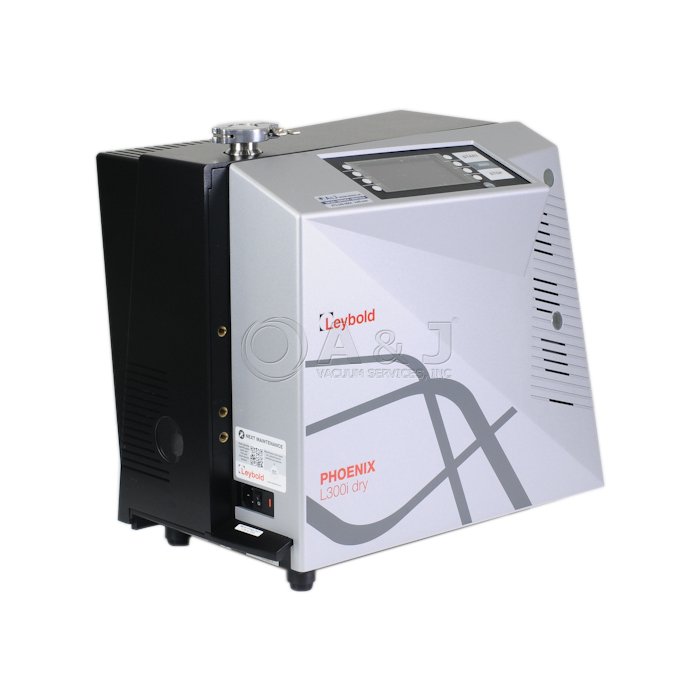

The Leybold Phoenix L300i is a portable multipurpose helium leak detector and equally well suited to both service and series production testing. The rugged modular design and its ease of use make the Phoenix L300i one of the most user-friendly leak detectors in its class.
Leybold Helium Leak Detectors permit the localization of leaks and the quantitative determination of the leak rate. In practice the leak detector performs this task by firstly evacuating the part which is to be tested, so that gas from the outside may enter through an existing leak due to the pressure difference present. If only helium is brought in front of the leak (for example by using a spray gun) this helium flows through the leak and is pumped out by the leak detector. The helium partial pressure present in the leak detector is measured by a sector mass spectrometer and is displayed as a leak rate. This is usually given in terms of volume flow of the helium.
Click Here for Leybold Phoenix L300i Operating Instructions Manual
Click Here for Product Brochure
Click Here for Leybold Phoenix Leak Detector Instruments Catalog
A&J Vacuum repair / rebuild and service all Leybold Oerlikon Phoenix 300i Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Vacuum Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Minimum Detectable Helium Leak Rate: |
Vacuum Mode: < 5 x 10-12 mbar x l x s-1 |
Minimum Detectable Helium Leak Rate: |
Sniffer Mode: < 1 x 10-7 mbar x l x s-1 |
Minimum Detectable Hydrogen Leak Rate: |
Vacuum Mode: < 1 x 10-8 mbar x l x s-1 |
Minimum Detectable Hydrogen Leak Rate: |
Sniffer Mode: < 1 x 10-7 mbar x l x s-1 |
Leak Rate Measurement Range: | 1 x 10-12 to 1 x 10-1 mbar x l x s-1 |
Measurement Ranges: | 12 decades |
Maximum Inlet Pressure: | 15 mbar |
Pumping Speed (50 Hz): | 1.5 cfm |
Pumping Speed (60 Hz): | 1.8 cfm |
Inlet Flange: | DN 25 ISO-KF |
Weight: | 40 kg / 88 lbs |
Click Here for Leybold Phoenix L300i Operating Instructions Manual
Click Here for Product Brochure
Click Here for Leybold Phoenix Leak Detector Instruments Catalog
A&J Vacuum repair / rebuild and service all Leybold Oerlikon Phoenix 300i Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Vacuum Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
