Leybold SV 40 BI FC (PTFE) Vacuum Pump Repair Kit, Obsolete EK971472990, OEM Kit EK9603P3
Oerlikon / Leybold SV40BI FC Rotary Vane Vacuum Pump Major Repair / Maintenance Kit.
This Kit will fit the following SV65BIFC pump p/n
960362V01

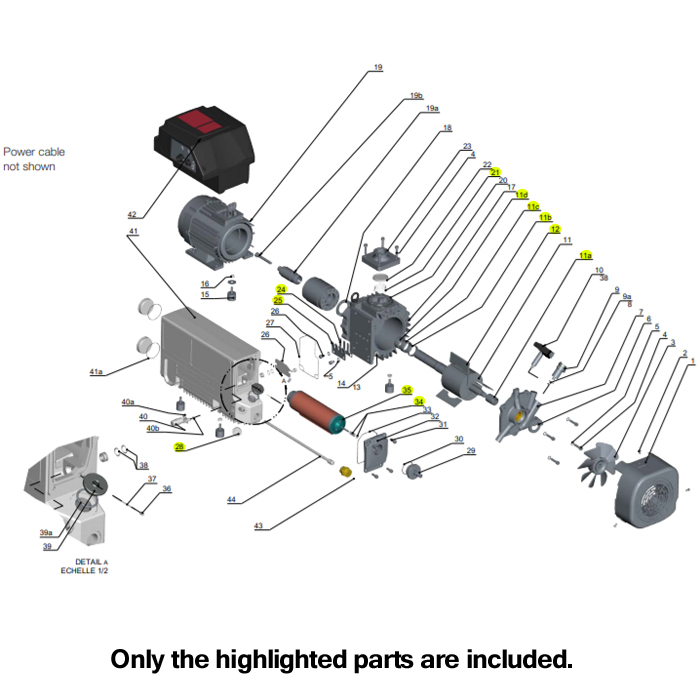

This Original OEM Leybold pump repair kit for SV40 BI FC contains the following parts:
| DESCRIPTION | PART NO. | QTY |
| O-Ring, 8 x 2 mm | 79134 | 1 |
| O-Ring, 10.77 x 2.62 mm | 82007 | 2 |
| O-Ring, 63.09 x 3.53 mm | 320067 | 1 |
| O-Ring, 4.42 x 2.62 mm | 900048 | 1 |
| O-Ring, 42 x 2 mm | 923031 | 1 |
| O-Ring, 50 x 3 mm | 23970211 | 1 |
| O-Ring, 56 x 2.5 mm | 48663500 | 2 |
| Intake Valve | 71015460 | 1 |
| Float Seal | 71212503 | 1 |
| O-Ring, 33 x 3.5 mm | 71217410 | 1 |
| O-Ring, 27 x 2.5 mm | 71217582 | 1 |
| Flat Gasket | 71416730 | 1 |
| Shaft Seal | 71417010 | 1 |
| Disk Membrane | 71417060 | 1 |
| O-Ring, 126.59 x 3.53 mm | 71417240 | 1 |
| O-Ring, 9.12 x 3.53 mm | 71417260 | 2 |
| Shaft Seal | 71417570 | 1 |
| Exhaust Gasket | 71420740 | 1 |
| O-Ring, 82.14 x 3.53 mm | 71421340 | 1 |
| Sight Glass | 71212428 | 1 |
| Vane | 71420810 | 3 |
| Valve Plate | 71417090 | 1 |
| Valve Stop | 71417100 | 1 |
| Exhaust Filter | 71417300 | 1 |
| Steel Sleeve | 71418310 | 1 |
| Oil Filter | 71420980 | 1 |
| Steel Sleeve | 71421700 | 1 |
| Bearing Sleeve | 472105822 | 1 |
| Spring | 490054 | 1 |
| Hex Nut | 410007 | 1 |
A&J Vacuum Services, Inc. Repairs / Rebuilds and Services Leybold SV 40 BI FC Vacuum Pumps including Leybold Rotary Vane Pumps. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold SV 40 BI FC (PTFE) Vacuum Pump Repair Kit, Obsolete EK971472990, OEM Kit EK9603P3
Oerlikon / Leybold SV40BI FC Rotary Vane Vacuum Pump Major Repair / Maintenance Kit.
We also do minor and major repairs for all Leybold Rotary Vane Vacuum Pumps.
This Original OEM Leybold pump repair kit for SV40 BI FC contains the following parts:
| DESCRIPTION | PART NO. | QTY |
| O-Ring, 8 x 2 mm | 79134 | 1 |
| O-Ring, 10.77 x 2.62 mm | 82007 | 2 |
| O-Ring, 63.09 x 3.53 mm | 320067 | 1 |
| O-Ring, 4.42 x 2.62 mm | 900048 | 1 |
| O-Ring, 42 x 2 mm | 923031 | 1 |
| O-Ring, 50 x 3 mm | 23970211 | 1 |
| O-Ring, 56 x 2.5 mm | 48663500 | 2 |
| Intake Valve | 71015460 | 1 |
| Float Seal | 71212503 | 1 |
| O-Ring, 33 x 3.5 mm | 71217410 | 1 |
| O-Ring, 27 x 2.5 mm | 71217582 | 1 |
| Flat Gasket | 71416730 | 1 |
| Shaft Seal | 71417010 | 1 |
| Disk Membrane | 71417060 | 1 |
| O-Ring, 126.59 x 3.53 mm | 71417240 | 1 |
| O-Ring, 9.12 x 3.53 mm | 71417260 | 2 |
| Shaft Seal | 71417570 | 1 |
| Exhaust Gasket | 71420740 | 1 |
| O-Ring, 82.14 x 3.53 mm | 71421340 | 1 |
| Sight Glass | 71212428 | 1 |
| Vane | 71420810 | 3 |
| Valve Plate | 71417090 | 1 |
| Valve Stop | 71417100 | 1 |
| Exhaust Filter | 71417300 | 1 |
| Steel Sleeve | 71418310 | 1 |
| Oil Filter | 71420980 | 1 |
| Steel Sleeve | 71421700 | 1 |
| Bearing Sleeve | 472105822 | 1 |
| Spring | 490054 | 1 |
| Hex Nut | 410007 | 1 |
A&J Vacuum Services, Inc. Repairs / Rebuilds and Services Leybold SV 40 BI FC Vacuum Pumps including Leybold Rotary Vane Pumps. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
