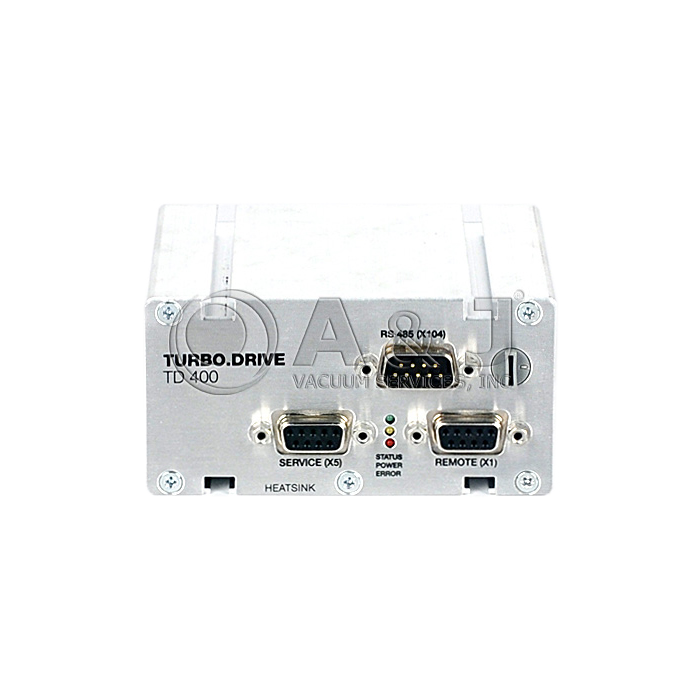

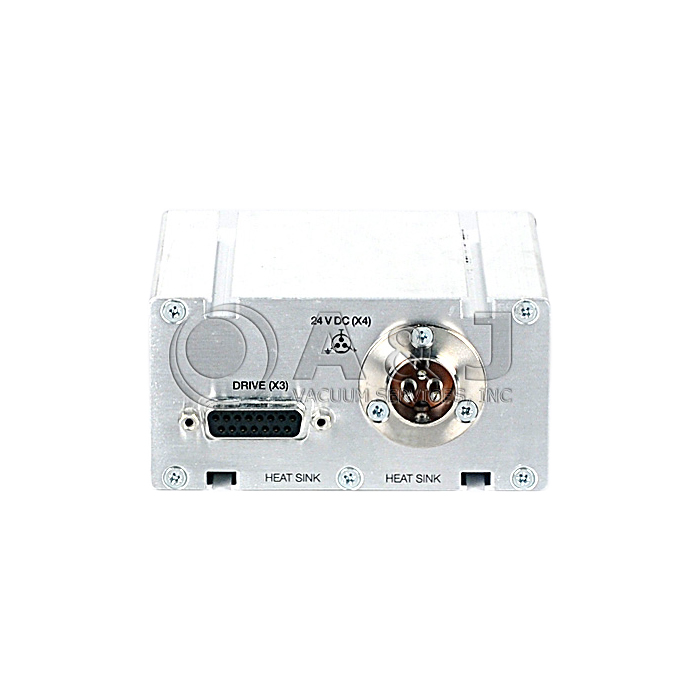

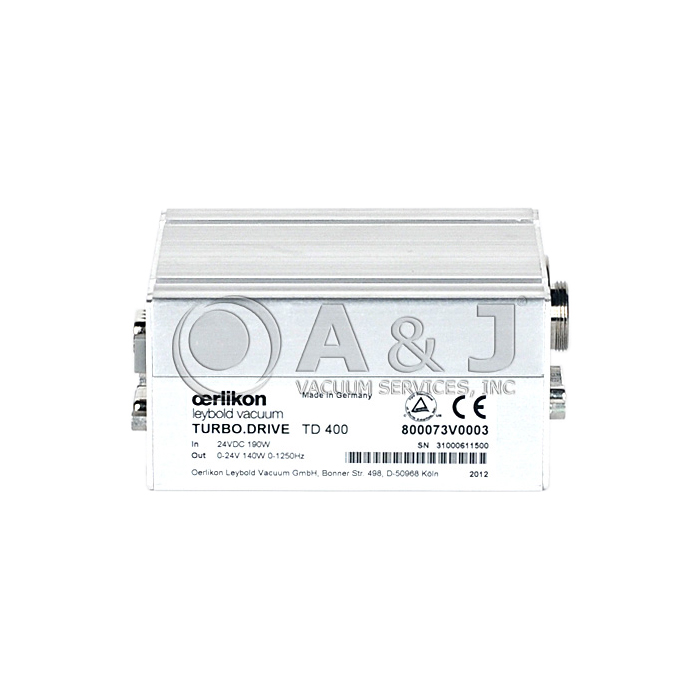

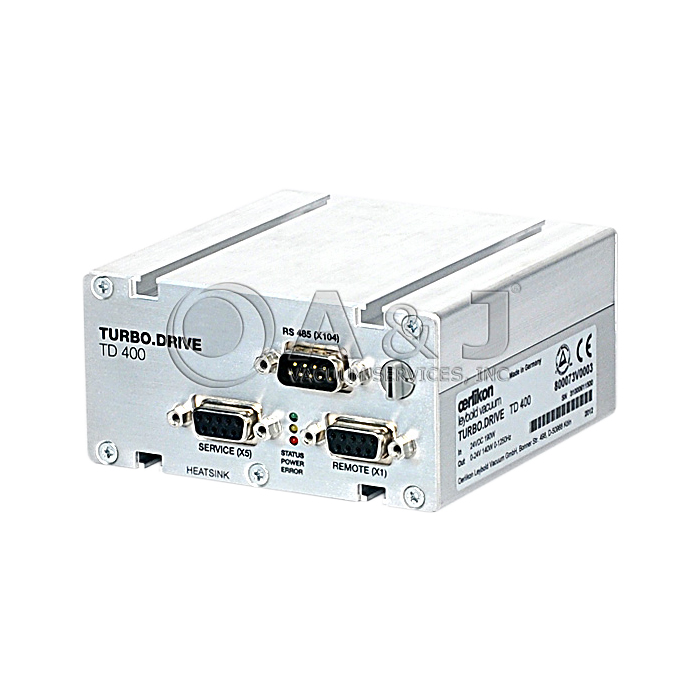

Leybold TD400 Turbo Drive Oerlikon TD 400 Turbo Vacuum Pump Controller, RS 485, 800073V0003
The Oerlikon / Leybold Turbo Drive TD 400 supplies power to the TW series turbo pumps and is used to control their operation.
The Turbo Drive TD 400 is suited for operation of the following pumps:
- TURBOVAC TW 70 H
- TURBOVAC TW 220/150 S, TW 220/150/15 S
- TURBOVAC TW 250 S
- TURBOVAC TW 300, TW 300 H
Other pumps may only be operated after approval from Leybold or if the operation of such pumps is expressly permitted in the Operating Instructions for the specific pump. The Turbo Drive TD 400 is either integrated in the pump or it is separate and linked to the pump by means of a connecting cable. The Turbo Drive TD 400 requires a supply voltage of 24 V DC. It is equipped with interfaces for programmable controls (REMOTE) and an optional interface for serial communication. The Turbo Drive TD 400 complies with SELV requirements (Safety Extra Low Voltage).
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Leybold TD400 Turbo Drive Oerlikon TD 400 Turbo Vacuum Pump Controller, RS 485, 800073V0003
Supply Voltage: 24 V DC 5%
When Operating a TW 300, TW 300 H, TW 220/150(/15) S:
- Maximum Power Consumption: 190 W
- Maximum Peak Current, Input Side: 8 A DC
- Required Power Output From The Power Supply: 200 W
When Operating a TW 70 H, TW 250 S:
- Maximum Power Consumption: 140 W
- Maximum Peak Current, Input Side: 6 A DC
- Required Power Output From The Power Supply: 150 W
Load Capability, Relay Output: 42 V, 0.5 A
Weight: 0.7 kg / 1.5 lbs
Oerlikon_Leybold_TW 400, TW400, TW 200, TW200 Turbovac_Cartridge_Pump_User_Manual, 800160V0017, 800160V0011, 800160V0019
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Leybold TD400 Turbo Drive Oerlikon TD 400 Turbo Vacuum Pump Controller, RS 485, 800073V0003
The Oerlikon / Leybold Turbo Drive TD 400 supplies power to the TW series turbo pumps and is used to control their operation.
The Turbo Drive TD 400 is suited for operation of the following pumps:
- TURBOVAC TW 70 H
- TURBOVAC TW 220/150 S, TW 220/150/15 S
- TURBOVAC TW 250 S
- TURBOVAC TW 300, TW 300 H
Other pumps may only be operated after approval from Leybold or if the operation of such pumps is expressly permitted in the Operating Instructions for the specific pump. The Turbo Drive TD 400 is either integrated in the pump or it is separate and linked to the pump by means of a connecting cable. The Turbo Drive TD 400 requires a supply voltage of 24 V DC. It is equipped with interfaces for programmable controls (REMOTE) and an optional interface for serial communication. The Turbo Drive TD 400 complies with SELV requirements (Safety Extra Low Voltage).
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Specifications
Leybold TD400 Turbo Drive Oerlikon TD 400 Turbo Vacuum Pump Controller, RS 485, 800073V0003
Supply Voltage: 24 V DC 5%
When Operating a TW 300, TW 300 H, TW 220/150(/15) S:
- Maximum Power Consumption: 190 W
- Maximum Peak Current, Input Side: 8 A DC
- Required Power Output From The Power Supply: 200 W
When Operating a TW 70 H, TW 250 S:
- Maximum Power Consumption: 140 W
- Maximum Peak Current, Input Side: 6 A DC
- Required Power Output From The Power Supply: 150 W
Load Capability, Relay Output: 42 V, 0.5 A
Weight: 0.7 kg / 1.5 lbs
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
