Overview:
The Oerlikon / Leybold D60A, D90A, D60AC, D90AC Major Repair / Rebuild Kit includes everything needed for major overhauls on the Oerlikon / Leybold D60A, D90A, D60AC, D90AC Rotary Vane Vacuum Pump.
We also do minor and major repairs for all Oerlikon / Leybold Rotary Vane Vacuum Pumps.

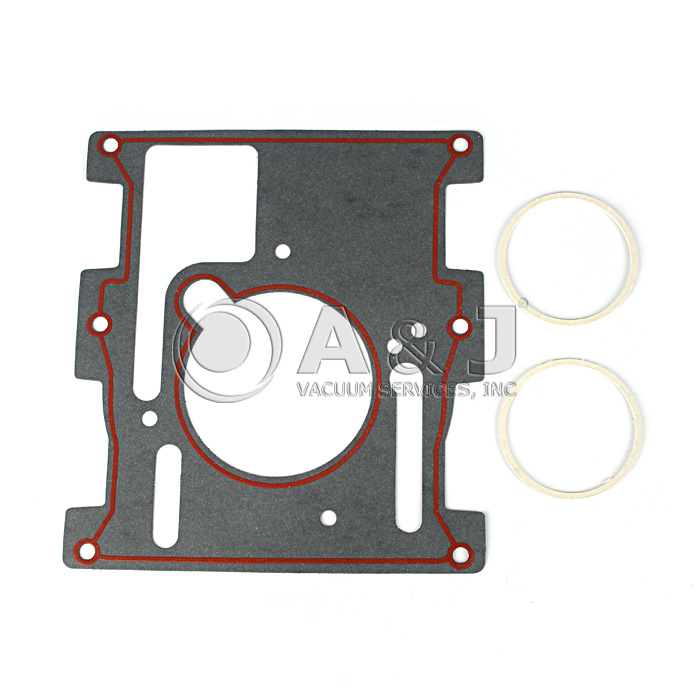

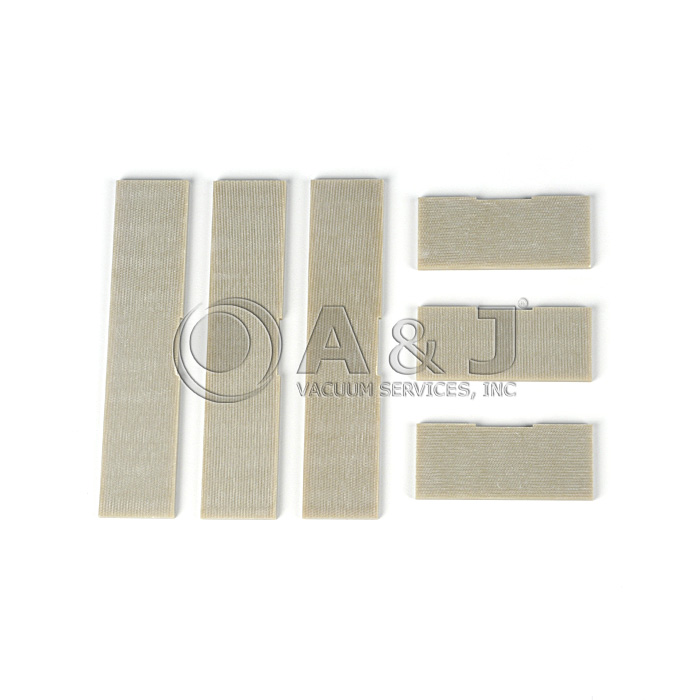

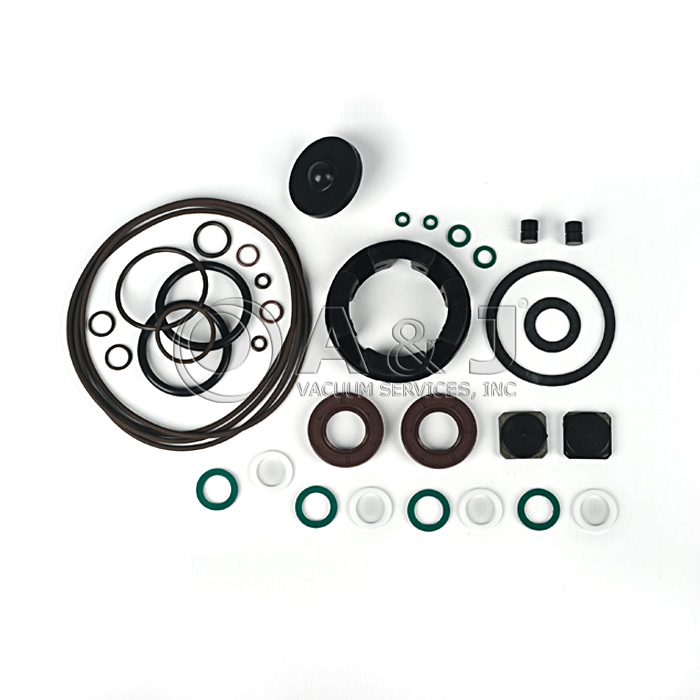

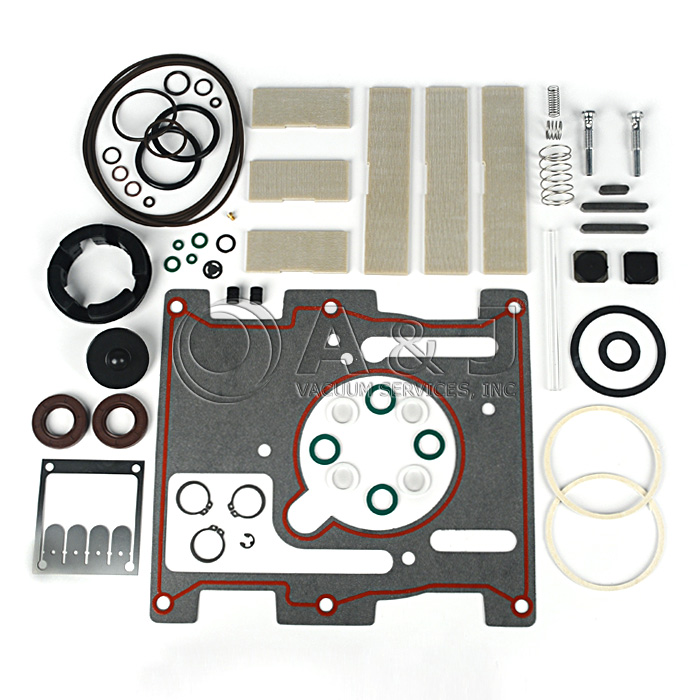

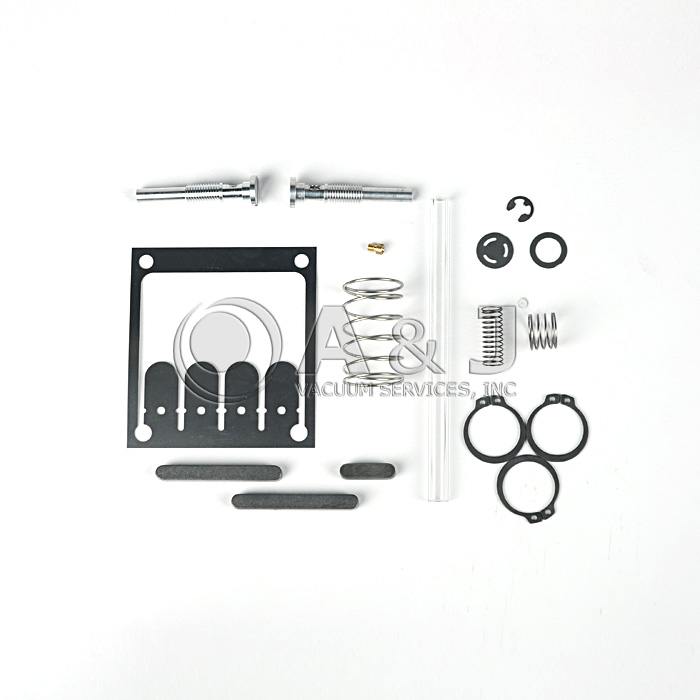

Oerlikon / Leybold D60A, D90A, D60AC, D90AC Rotary Vane Vacuum Pump Major Repair / Rebuild Kit contains the following parts:
DESCRIPTION | PART NO. | QTY |
2nd Stage Vane |
L20010846 |
3 |
1st Stage Vane |
L20010880 |
3 |
Coupling Key |
L22116179 |
1 |
Rotor Key |
L22116188 |
2 |
Spring |
L22162140 |
1 |
Spring |
L22162141 |
1 |
Spring |
L22162142 |
1 |
Retaining Ring |
L23103111 |
3 |
Snap Ring |
L23105108 |
1 |
Case Gasket |
L23811142 |
1 |
Flat Gasket |
L23820158 |
2 |
Flat Gasket |
L23925225 |
1 |
Viton Shaft Seal |
L23953110 |
2 |
Plug Gasket |
L23955165 |
4 |
Plug Gasket |
L23955165T |
4 |
Flat Gasket |
L23955171 |
1 |
O-Ring |
L23970147 |
1 |
O-Ring |
L23970148 |
2 |
O-Ring |
L23970304 |
1 |
O-Ring |
L23970411 |
4 |
O-Ring |
L23970436 |
1 |
O-Ring |
L23970516 |
2 |
Lever Seal |
L23973131 |
1 |
Buna Lever Seal |
L23973131B |
1 |
Oil Nozzle |
L39225124 |
2 |
Air Nozzle |
L39225204 |
1 |
Valve Disk |
L40050137 |
1 |
Valve |
L40050138 |
2 |
Valve Plate |
L40164114 |
1 |
Valve Plate |
L40164117 |
1 |
Coupling Element |
L70100196 |
1 |
Mounting Bolt |
L72000129 |
2 |
Sight Glass Tube |
L72211004 |
1 |
Flat Gasket |
L72590000 |
2 |
Flat Gasket |
L72590001 |
2 |
O-Ring |
L72591000 |
2 |
O-Ring |
L72591001 |
2 |
THERE ARE NO RETURNS ON THIS PRODUCT.
Leybold D60A, Leybold D90A, Leybold D60AC and Leybold D90AC Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 10171
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
