- SCFM Rated Flow: 24
- Minimum 99.97% D.O.P. on 0.3 micron particles
- Temp (continuous): min 40°F (4.4°C) max 220°F (104°C)
- Steel construction w/Nickel plated finish

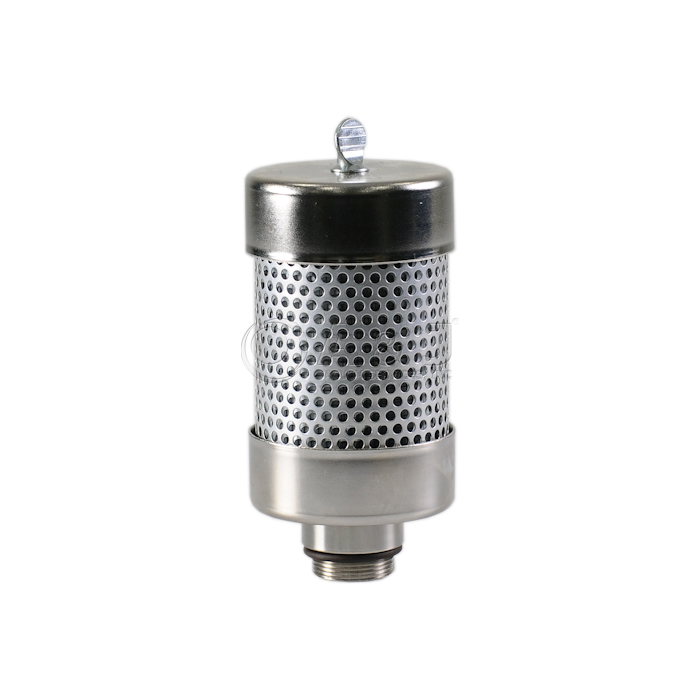

Oil Mist Exhaust Filter, EF Series, 1-20 UNEF Thread, EF-FG10-103
EF Series Oil Mist Exhaust Filter, 1"-20 UNEF Thread
AJVS EF Series Features:
- Expanded metal on both sides of the media
- Helps purify surrounding environment
- Steel construction with nickel plated finish
- Easy thumbscrew access for maintenance
- Coalescing media is 99.97% removal efficiency at 0.3 micron diameter particles
- Compact, low profile design utilizing high performance coalescing media
AJVS EF Series Applications:
- Blower Exhaust Oil Mist
- Hydraulic Breathers - fine filtration
- Leak Detection
- Vacuum Coating
- Vacuum Freeze Dry
- Vacuum Outgassing
- Industrial Vacuum Processes
- Capture oil fog, mist or smoke from exhaust on oil flooded vacuum pumps
- Refrigeration and Air Conditioning evacuation service
- Semiconductor Industry
- Laboratory Industry
- Autoclaving, Sterilization
- Electronic tube and light bulb evacuation
AJVS EF Series Dimensions:
A: 179 mm
B: 23 mm
C: 129 mm
A&J Vacuum Services offers full repair/service of AJVS, along with all other brands offered on our website. AJVS also services AJVS. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Oil Mist Exhaust Filter, EF Series, 1-20 UNEF Thread, EF-FG10-103
EF Series Oil Mist Exhaust Filter, 1"-20 UNEF Thread
AJVS EF Series Technical Data:
| Rated Flow: | 24 SCFM |
| Minimum 99.97% D.O.P. on 0.3 micron particles | |
| Temp (continuous): min 40°F (4.4°C) max 220°F (104°C) |
A&J Vacuum Services offers full repair/service of AJVS, along with all other brands offered on our website. AJVS also services AJVS. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
AJVS_EF_Series_Exhaust_Filter_Brochure.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
