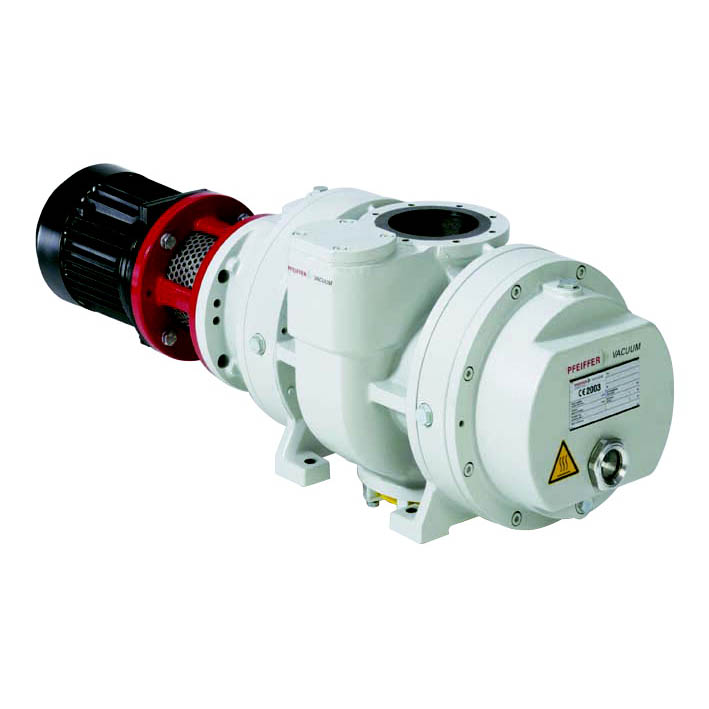

The pumping speed of our OktaLine Roots Pumps (Vacuum Boosters, Vacuum Blowers) ranges from 250 to 25,000 m³/h. They can be optimally employed for a wide variety of low and medium vacuum applications.
The gear and bearing chambers in our Roots Pumps (Vacuum Boosters, Vacuum Blowers) are completely separate from the gas pumping chamber. Because the rotors operate without making contact, dry operation is assured.
A further advantage: thanks to air cooling, operating costs are significantly lower than with water cooling. The design principle of our proven Roots Pumps (Vacuum Boosters, Vacuum Blowers) has been expanded to include magnetic couplings. Thanks to these hermetically sealed pumps we very low leak rates. We have developed special pumps that meet the highest explosion protection requirements for processes that take place in explosive environments or for evacuating explosive gases.
The portfolio includes both standard pumping stations from the CombiLine series as well as customer-specific system solutions in combination with various backing pumps, such as rotary vane, screw or rotary piston pumps.
Technical Data:
Differential pressure at the overflow valve | 75 mbar |
Emission sound pressure level (EN ISO 2151) at intake pressure 10 mbar | 75 dB (A) |
Emission sound pressure level (EN ISO 2151) at intake pressure 1 mbar | 70 dB (A) |
Flange (in) | DN 63 ISO-F |
Flange (out) | DN 63 ISO-F |
Leak rate | 1 · 10-5 mbar l/s |
Mains requirement: voltage (selectable) | 230/400 V, 60 Hz |
Motor rating | 1.1 kW |
Nominal pumping speed | 324 m3/h |
Operating fluid filling | 1.5 l |
Rotation speed | 3600 rpm |
Version | Hermetically sealed |
Weight | 125 kg |
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
