Power cable is not included. Please view the accessories tab for compatible cables.
Product Overview:
The Pfeiffer Adixen Pascal 2021 I Rotary Vane Pump incorporates a direct drive motor, creating a highly effective, compact machine. An electrically-insulated fold-away handle is attached for facility when carrying. The anti-suckback system ensures enhanced tightness of the pump during accidental or voluntary shutdowns. Additionally, the universal single phase motor can be disassembled independently of the remainder of the pump, without the need to drain the oil case. With regard to the case, a vertical sight glass can be used to inspect the oil level easily while filling the tank, as well as during the operation of the pump. A gas ballast enables the pumping of condensable vapors.
The inlet and exhaust fittings for Adixen 2021 I are standardized. They are fitted vertically on the pump; however, they can be repositioned onto the horizontal openings if required to do so by operating conditions. The main replacement parts for Adixen Pascal 2021 I are interchangeable. This enables faster assembly, disassembly, and replacement without altering the performance of the pump. Various accessories can be utilized and incorporated to adapt the pump to meet the requirements of your application.
A&J Vacuum services and repairs Pfeiffer Pascal I, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum Adixen 2021I Pascal Rotary Vane Vacuum Pump, Single Phase, 180-254 V 50/60 Hz, 221AEMHEM
Product Technical Data:
Flange (in) | DN 25 ISO-KF |
Flange (out) | DN 25 ISO-KF |

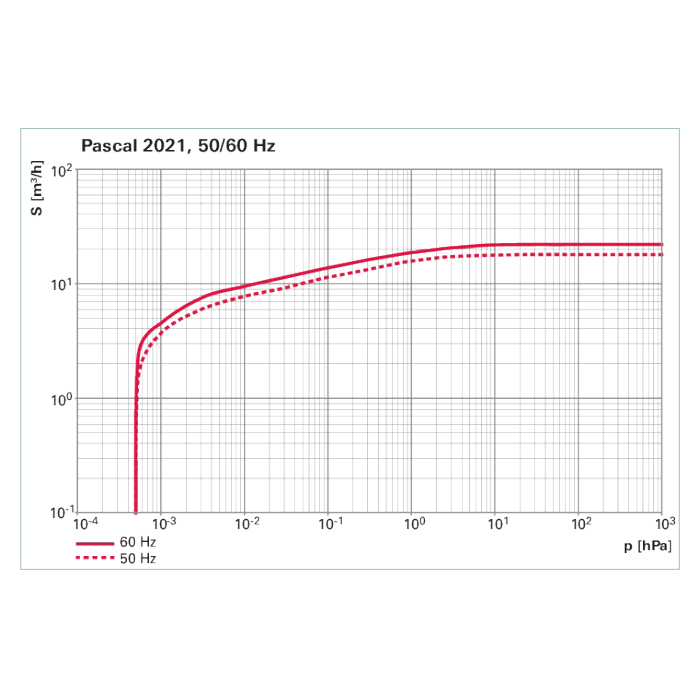

Pumping speed at 50 Hz | 18 m³/h | 10.59 cfm | 300 l/min |
Pumping speed at 60 Hz | 22 m³/h | 12.95 cfm | 366.67 l/min |
Ultimate pressure | 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar |
Ultimate pressure with gas ballast | 1 · 10-2 hPa | 7.5 · 10-3 Torr | 1 · 10-2mbar |
Ultimate pressure without gas ballast | 5 · 10-4 hPa | 3.75 · 10-4 Torr | 5 · 10-4 mbar |
Motor version | 1-ph motor |
Mains requirement: voltage 50 Hz | 180 – 254 V |
Mains requirement: voltage 60 Hz | 180 – 254 V |
Mains cable | Yes, EU power cable |
Operating fluid | Mineral oil |
Rated power 50 Hz | 0.45 kW |
Rated power 60 Hz | 0.55 kW |
Protection category | IP43 |
Weight | 28 kg | 61.73 lb |
A&J Vacuum services and repairs Pfeiffer Pascal I, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
