Quantity | Product and Description | |
2 | Vane for roughing stage DUO 1 | |
2 | Vane, 2nd Stage for DUO 10 | |
1 | Vane, Hydraulic, PEE for DUO 5/10/20 | |
4 |
Compression Spring 0.5 x 3 x 45 |
|
1 | Leak Nozzle 0.25 mm Duo 010 M | |
1 | Plate Spring | |
2 | Valve Buffer for DUO 5-5 C/10-10 | |
2 | Valve Plate for UNO/DUO 5-65 D-D | |
1 | Hydraulic Piston for UNO/DUO 5-65 D/D | |
1 | Sight glass plate for DUO 010 M | |
4 | Rubber Foot for MZ2T | |
2 | Sieve DN 25 ISO-KF | |
1 | ZYL-SHR-I6KT, A2-70, M 5X 10 | |
1 | Compression Spring 0.41 x 4.57 x 15.75 | |
1 | Ball, d = 5mm | |
2 | Locking Ring I 10 x 1, DIN 472 | |
2 | Compression Spring 0.5 x 6.3 x 13.5 | |
1 | Feather Key, 5 x 5 x | |
1 | Zylinderschraube mit Innensechskant DIN 6 | |
1 | Set of Seals for DUO 10 | |
1 | Quick fitting coupling for DUO 5 / 10, FPM | |
1 | Seal for sight glass for DUO 5/10 - FPM | |
1 | O-Ring, FPM 40 x 2 | |
2 | O-Ring, FPM 6 x 2.2 | |
2 | O-Ring, FPM 8 x 2 | |
1 | O-Ring, FPM 10 x 2.5 | |
1 | O-Ring, FPM 15 x 2.5 | |
1 | O-Ring, FPM 18 x 2 | |
1 | O-Ring, FPM 22 x 3 | |
1 | O-Ring, FPM 26 x 3 | |
1 | O-Ring, FPM 27 x 2.5 | |
2 | O-Ring, FPM 28 x 5 | |
2 | O-Ring, FPM 32 x 3 | |
1 | O-Ring, FPM 38 x 3 | |
1 | O-Ring, FPM 50 x 3 | |
1 | O-Ring, FPM 75 x 3 | |
1 | O-Ring, FPM 88 x 3 | |
1 | O-Ring, FPM 165 x 3 | |
1 | O-Ring, FPM 48.9 x 2.62 |
Pfeiffer Vacuum DUO10M Major Maintenance Service kit, PK E32 001-T / PKE32001-T, DUO10M OEM Kit

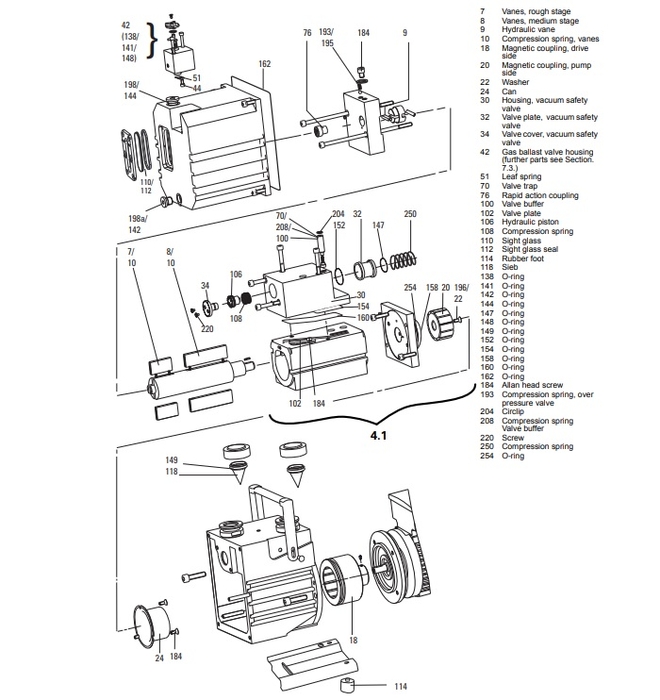

DUO 10M PM E32 001-T Ovrhaul kit includes the folwing parts from Exploded View;

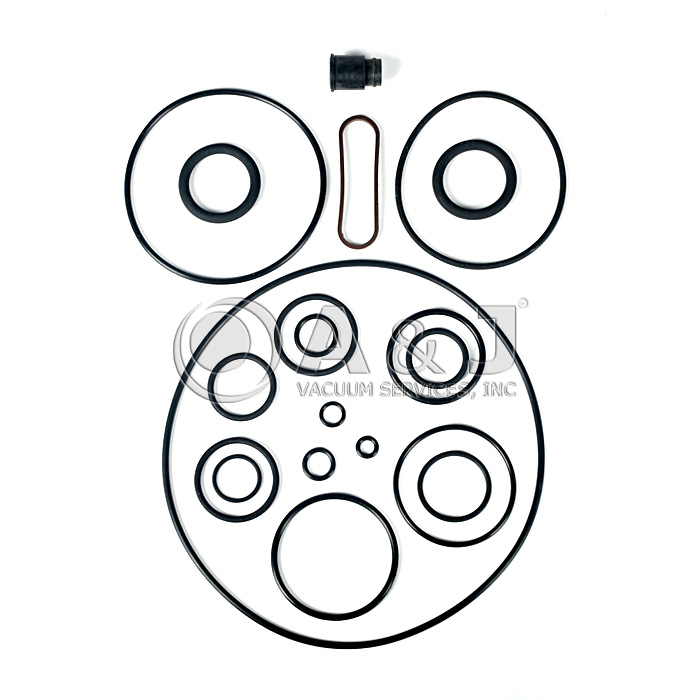

Set of Seals (PK E30 001-T), 7, 8, 9, 10, 44, 51, 100, 102, 106, 110, 114, 118, 184, 193, 195, 204, 217
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
