- Agilent G3170-80024
- Pfeiffer P/N PKD41063E
- Fully Refurbished
- 190-210/200-220 VAC, 50/60 Hz

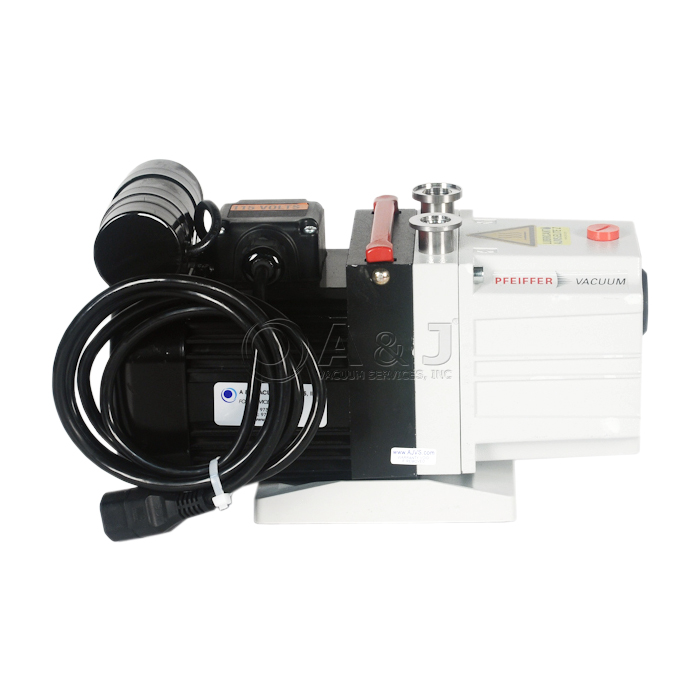

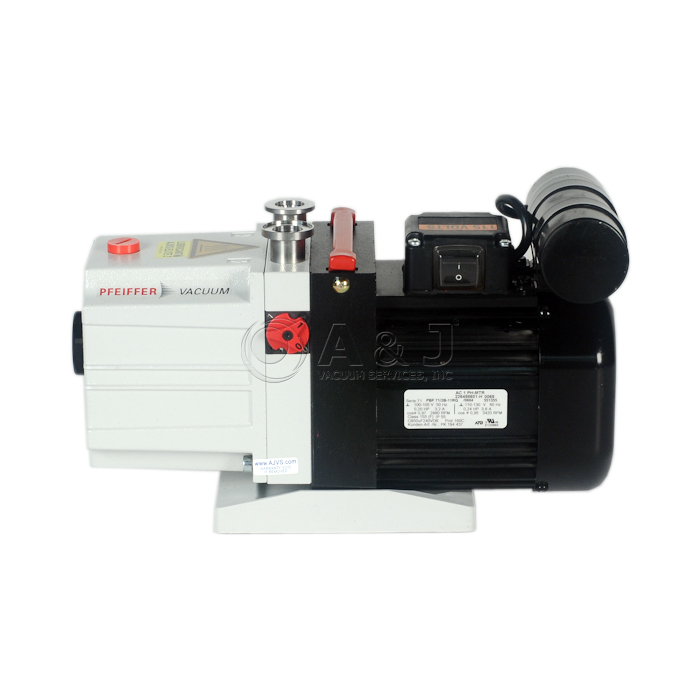

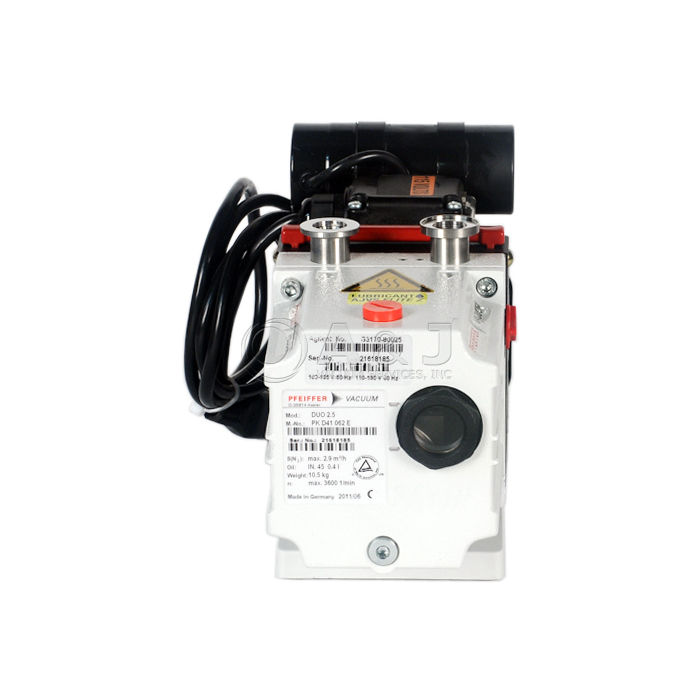

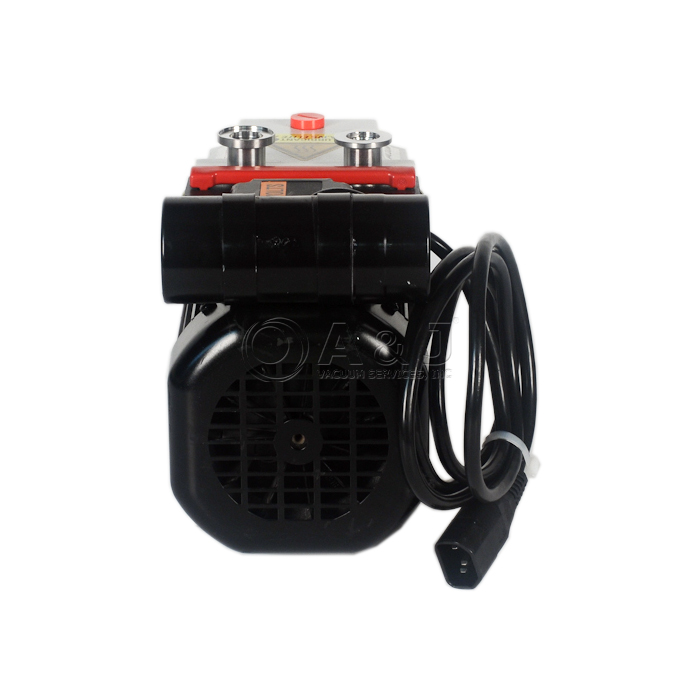

Fully Rerfurbished Pfeiffer Vacuum DUO 2.5 also known as Agilent G3170-80024, 1-phase motor, 190-210/200-220 VAC, 50/60 Hz, PKD41063E, G317080024
Pump to be used with Agilent gas chromatography / Agilent mass spectrometry series 5975, systems 5975A, 5975B, 5975C, 5975E and 5975T
Pfeiffer DUO 2.5 Overview:
DuoLine rotary vane pumps cover all applications in the low and medium vacuum range of up to 10-3 mbar. These pumps offer reliable operation even for such critical industrial applications as drying processes, metallurgical processes or resin potting and casting systems – either as a standalone pump or as a backing pump in our roots pumping stations or turbo pumping stations.
The use of a magnetic coupling minimizes maintenance requirements and leads to considerable cost savings per pump and maintenance interval.
Compact design - Excellent performance data. Integrated safety and gas ballast valve. Contain no non-ferrous metals. Various motor voltages afford worldwide employment. The most compact pumps in this pumping speed class

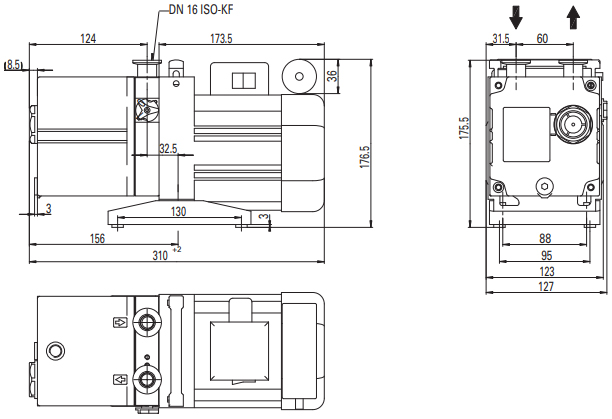

Pfeiffer DUO 2.5 Dimensions:
Click Here for Pfeiffer DUO 2.5 Manual
A&J Vacuum repair / rebuild and service Agilent G317080024 Vacuum Pumps, PKD41063E Pfeiffer Turbo Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully Rerfurbished Pfeiffer Vacuum DUO 2.5 also known as Agilent G3170-80024, 1-phase motor, 190-210/200-220 VAC, 50/60 Hz, PKD41063E, G317080024
Pfeiffer DUO 2.5 Technical Data:
|
Emission sound pressure level without gas ballast |
≤ 53 dB (A) |
| Flange (in) | DN 16 ISO-KF |
| Flange (out) | DN 16 ISO-KF |
| Leak rate safety valve | 1 · 10-4 mbar l/s |
| Mains requirement: voltage (range) | 190-210/200-220 VAC, 50/60 Hz |
| Operating fluid | P3 |
| Operating fluid filling | 0.4 l |
| Pumping speed at 50 Hz | 2.5 m3/h |
| Pumping speed at 60 Hz | 2.9 m3/h |
| Rated power 50 Hz | 0.15 kW |
| Rated power 60 Hz | 0.18 kW |
| Rotation speed at 50 Hz | 3000 rpm |
| Rotation speed at 60 Hz | 3600 rpm |
| Switch | Yes, with 2 m mains cable without plug |
| Ultimate pressure with gas ballast | ≤ 6 · 10-3 mbar |
| Ultimate pressure without gas ballast | ≤ 6 · 10-3 mbar |
| Weight | 10.5 kg |
A&J Vacuum repair / rebuild and service Agilent G317080024 Vacuum Pumps, PKD41063E Pfeiffer Turbo Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Pfeiffer DUO2.5, Pfeiffer UNO2.5, DUO5, UNO5 Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Fully Rerfurbished Pfeiffer Vacuum DUO 2.5 also known as Agilent G3170-80024, 1-phase motor, 190-210/200-220 VAC, 50/60 Hz, PKD41063E, G317080024
Pump to be used with Agilent gas chromatography / Agilent mass spectrometry series 5975, systems 5975A, 5975B, 5975C, 5975E and 5975T
Pfeiffer DUO 2.5 Overview:
DuoLine rotary vane pumps cover all applications in the low and medium vacuum range of up to 10-3 mbar. These pumps offer reliable operation even for such critical industrial applications as drying processes, metallurgical processes or resin potting and casting systems – either as a standalone pump or as a backing pump in our roots pumping stations or turbo pumping stations.
The use of a magnetic coupling minimizes maintenance requirements and leads to considerable cost savings per pump and maintenance interval.
Compact design - Excellent performance data. Integrated safety and gas ballast valve. Contain no non-ferrous metals. Various motor voltages afford worldwide employment. The most compact pumps in this pumping speed class
Pfeiffer DUO 2.5 Dimensions:
Click Here for Pfeiffer DUO 2.5 Manual
A&J Vacuum repair / rebuild and service Agilent G317080024 Vacuum Pumps, PKD41063E Pfeiffer Turbo Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Specifications
Fully Rerfurbished Pfeiffer Vacuum DUO 2.5 also known as Agilent G3170-80024, 1-phase motor, 190-210/200-220 VAC, 50/60 Hz, PKD41063E, G317080024
Pfeiffer DUO 2.5 Technical Data:
|
Emission sound pressure level without gas ballast |
≤ 53 dB (A) |
| Flange (in) | DN 16 ISO-KF |
| Flange (out) | DN 16 ISO-KF |
| Leak rate safety valve | 1 · 10-4 mbar l/s |
| Mains requirement: voltage (range) | 190-210/200-220 VAC, 50/60 Hz |
| Operating fluid | P3 |
| Operating fluid filling | 0.4 l |
| Pumping speed at 50 Hz | 2.5 m3/h |
| Pumping speed at 60 Hz | 2.9 m3/h |
| Rated power 50 Hz | 0.15 kW |
| Rated power 60 Hz | 0.18 kW |
| Rotation speed at 50 Hz | 3000 rpm |
| Rotation speed at 60 Hz | 3600 rpm |
| Switch | Yes, with 2 m mains cable without plug |
| Ultimate pressure with gas ballast | ≤ 6 · 10-3 mbar |
| Ultimate pressure without gas ballast | ≤ 6 · 10-3 mbar |
| Weight | 10.5 kg |
A&J Vacuum repair / rebuild and service Agilent G317080024 Vacuum Pumps, PKD41063E Pfeiffer Turbo Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Spare Parts
Accessories
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
