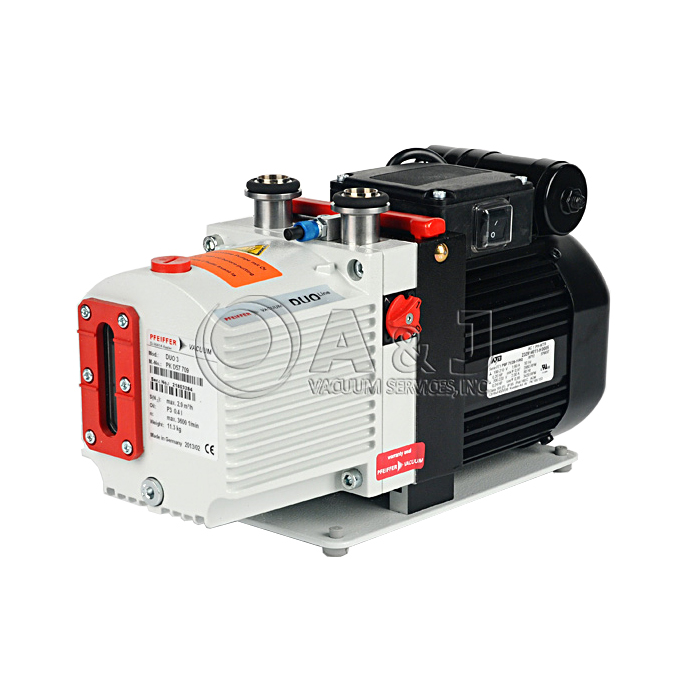

Pfeiffer Vacuum DUO 3 Rotary Vane Vacuum Pump, 115/230 V, 50/60 Hz, 0.4 Liter of P3 Oil Included, PKD57711, PK D57 711, Pfeiffer DUO3
Power cable is not included. Please view the accessories tab for compatible cables.
Pfeiffer DUO3 Rotary Vane Pump - Product Overview:
The Pfeiffer DUO 3 Rotary Vane Vacuum Pump is a direct replacement for the now-obsolete Pfeiffer DUO 2.5 Vacuum Pump. The Pfeiffer DUO 3 Vacuum Pump series includes oil-sealed, two-stage Rotary Vane Vacuum Pumps.
The Pfeiffer DUO 3 Rotary Vane Pump is equipped with a high vacuum safety valve, which, when the pump is at a standstill, tightly closes the vacuum chamber while simultaneously allowing for ventilation of the pump.
A power cable is not included within this product. Please refer to the recommended items below for appropriate choices.
Pfeiffer DUO 3, 1-Phase Motor, 115/230 V, 50/60 Hz Key Features & Attributes:
- Dual Stage, High Performance Rotary Vane Pump
- Integrated Gas Ballast and Safety Valve Utilized for All Low and Medium Vacuum Applications
- Optional w/ Magnetic Coupling
- Included Special Feature: Various Motor Voltages for
Worldwide Employment & Application - Other Motor Voltages Available Upon Request
Pfeiffer Rotary Vane Pumps - Technical Information:
Pfeiffer Vacuum manufactures some of the most widely-utilized varieties of advanced rotary vane used in a variety of industrial applications in the twenty-first century, including laboratory processes, chemical and process engineering, among others. These products are ideally utilized for the low-to-medium intensity vacuum range. Pfeiffer vacuum pumps are especially known for their durability and wide range of application.
A rotary vane pump functions as a displacement pump, creating a low-pulsation suction volume flow. Rotary vane pumps include an eccentrically-supported rotor with two rotating vanes, encased and revolving within a housing. The Pfeiffer Rotary Vane Pumps offered to our clients are oil-lubricated (wet-version pumps); these operating fluids help to enhance the insulation of pump components and ensure maximum durability and efficiency of the product.
We offer both single-stage and dual-stage Pfeiffer Rotary Vane Vacuum Pumps on our website. Single-stage pumps are the preferred choice for low-intensity vacuum applications, while dual-stage pumps are the recommended choices for the medium and upper intensity range of vacuum applications.
Product Dimensions:
A&J Vacuum services and repairs Pfeiffer DUO 3 DUO 3M, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum DUO3 Vacuum Pump Rotary Vane, 115/230 V, 50/60 Hz, 0.4 Liter of P3 Oil Included, PKD57711, PK D57 711, DUO-3
Technical Data DUO 3, 1-phase motor, 115/230 V, 50/60 Hz
| Flange (in) | DN 16 ISO-KF |
| Flange (out) | DN 16 ISO-KF |
| Pumping speed at 50 Hz | 2.5 m³/h | 1.47 cfm | 41.67 l/min |
| Pumping speed at 60 Hz | 2.9 m³/h | 1.71 cfm | 48.33 l/min |
| Ultimate pressure with gas ballast | 3 · 10-3 hPa | 2.25 · 10-3Torr | 3 · 10-3 mbar |
| Ultimate pressure without gas ballast | 3 · 10-3 hPa | 2.25 · 10-3Torr | 3 · 10-3 mbar |
| Exhaust pressure, max. | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Exhaust pressure, min. | 250 hPa | 187.5 Torr | 250 mbar |
| Rotation speed at 50 Hz | 3,000 rpm | 3,000 min-1 |
| Rotation speed at 60 Hz | 3,600 rpm | 3,600 min-1 |
| Cooling method, standard | Air |
| Motor version | 1-ph motor |
| Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
| Emission sound pressure level without gas ballast at 50 Hz | 53 dB(A) |
| Switch | Yes |
| Mains requirement: voltage (range) | ±10 % |
| Mains requirement: voltage 50 Hz | 115 V/230 V |
| Mains requirement: voltage 60 Hz | 115 V/230 V |
| Recommended mains fuse capacity | 6/4 A |
| Mains cable | No |
| Operating fluid | P3 |
| Operating fluid filling | 0.4 l |
| Leak rate safety valve | 1 · 10-5 Pa m3/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s |
| Dimensions (L x W x H) | 335 x 129 x 222 mm | 13.19 x 5.08 x 8.74 inch |
| Rated power 50 Hz | 0.15 kW |
| Rated power 60 Hz | 0.18 kW |
| Protection category | IP40 |
| Weight | 11.5 kg | 25.35 lb |
A&J Vacuum services and repairs Pfeiffer DUO 3, DUO 3M, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
AJVS_Pfeiffer_DUO3_Repair_and_Service_115_230v.pdf
AJVS_High_Vacuum_Pump_Service_and_Repair.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
