- P/N PD Z10 000 / PDZ10000
- ES 25 M External Silencer for Outlet
- DN 25 ISO-KF Connecting Flange
- Reduces the sound level by up to 5 dB(A)
Pfeiffer External Silencer ES 25 M External Silencer, KF 25 Flange, PD Z10 000 / PDZ10000, ES25M
Pfeiffer / Adixen ES 25 M Overview:
Use of the External Exhaust Silencer ES25M will significantly reduce the noise level (up to 5 db(A) when used with Hiscroll Series pumps with pumping speed up to 19 m3/h.
The Pfeiffer Vacuum ES25 M External Silencer can be used at the exhaust of the following vacuum pumps:
-
Pfeiffer Vacuum Hiscroll 6
-
Pfeiffer Vacuum Hiscroll 12
-
Pfeiffer Vacuum Hiscroll 18

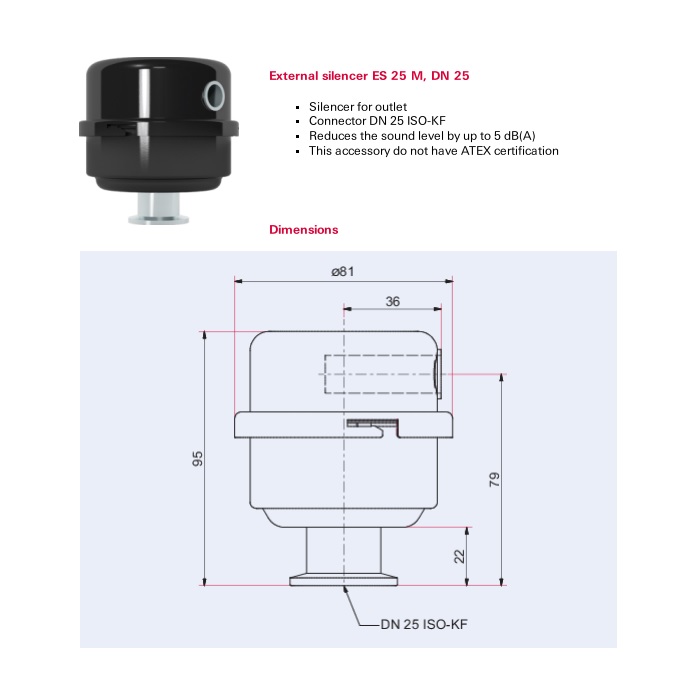

Pfeiffer ES 25 M / PD Z10 000 Dimensions:
Scope of Delivery;
- Silencer with integrated filter insert
- Protective cap for the connection flange (mounted)
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer External Silencer ES 25 M External Silencer, KF 25 Flange, PD Z10 000 / PDZ10000, ES25M

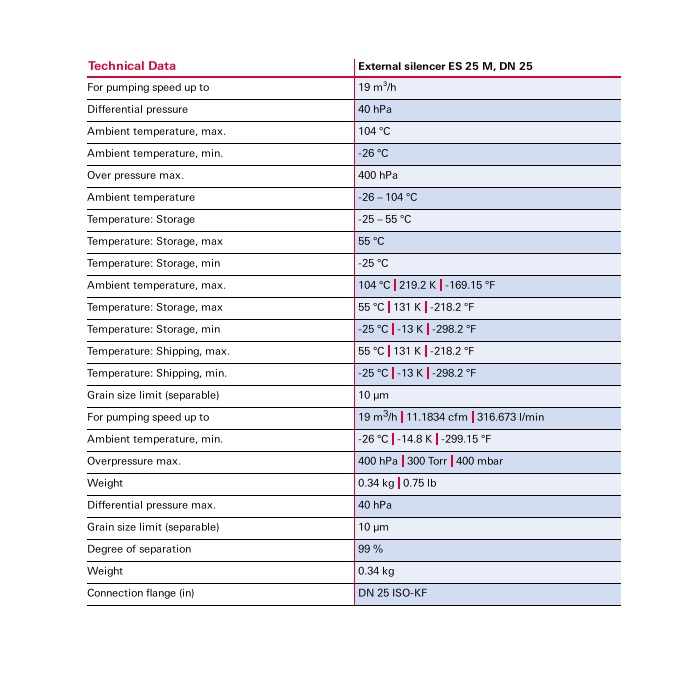

Pfeiffer Vacuuum ES 25 M Silencer Technical Data:
Ambient temperature - 26 – 104 °C | -1.48 · 101 - 219.2 °F | 247.15 - 377.15 K
Degree of separation - 99 %
For pumping speed up to - 19 m³/h | 11.18 cfm | 316.67 l/min
Inlet pressure max. - Atmospheric pressure
Weight - 0.34 kg | 0.75 lb
Connection flange (in) - DN 25 ISO-KF
Differential pressure - 40 hPa | 30 Torr | 40 mbar
Grain size limit (separable) - 10 µm
Overpressure max. - 400 hPa | 300 Torr | 400 mbar
Replacement filter element kit - PD E60 000-T / PN41300
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer External Silencer ES 25 M External Silencer, KF 25 Flange, PD Z10 000 / PDZ10000, ES25M
Pfeiffer / Adixen ES 25 M Overview:
Use of the External Exhaust Silencer ES25M will significantly reduce the noise level (up to 5 db(A) when used with Hiscroll Series pumps with pumping speed up to 19 m3/h.
The Pfeiffer Vacuum ES25 M External Silencer can be used at the exhaust of the following vacuum pumps:
-
Pfeiffer Vacuum Hiscroll 6
-
Pfeiffer Vacuum Hiscroll 12
-
Pfeiffer Vacuum Hiscroll 18
Pfeiffer ES 25 M / PD Z10 000 Dimensions:
Scope of Delivery;
- Silencer with integrated filter insert
- Protective cap for the connection flange (mounted)
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Specifications
Pfeiffer External Silencer ES 25 M External Silencer, KF 25 Flange, PD Z10 000 / PDZ10000, ES25M
Pfeiffer Vacuuum ES 25 M Silencer Technical Data:
Ambient temperature - 26 – 104 °C | -1.48 · 101 - 219.2 °F | 247.15 - 377.15 K
Degree of separation - 99 %
For pumping speed up to - 19 m³/h | 11.18 cfm | 316.67 l/min
Inlet pressure max. - Atmospheric pressure
Weight - 0.34 kg | 0.75 lb
Connection flange (in) - DN 25 ISO-KF
Differential pressure - 40 hPa | 30 Torr | 40 mbar
Grain size limit (separable) - 10 µm
Overpressure max. - 400 hPa | 300 Torr | 400 mbar
Replacement filter element kit - PD E60 000-T / PN41300
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
