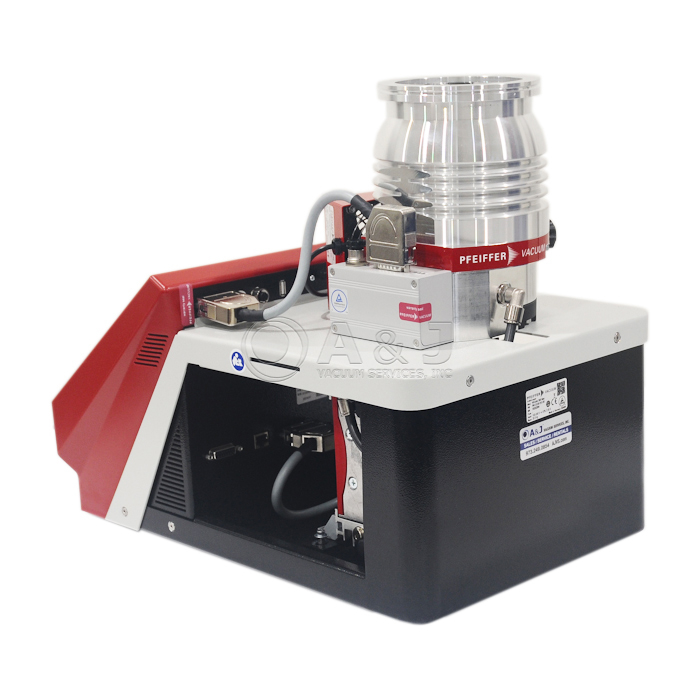

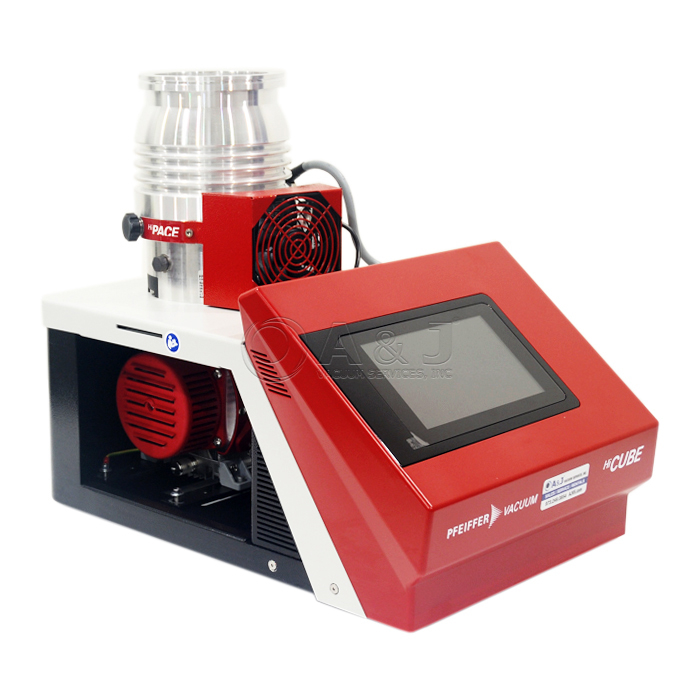

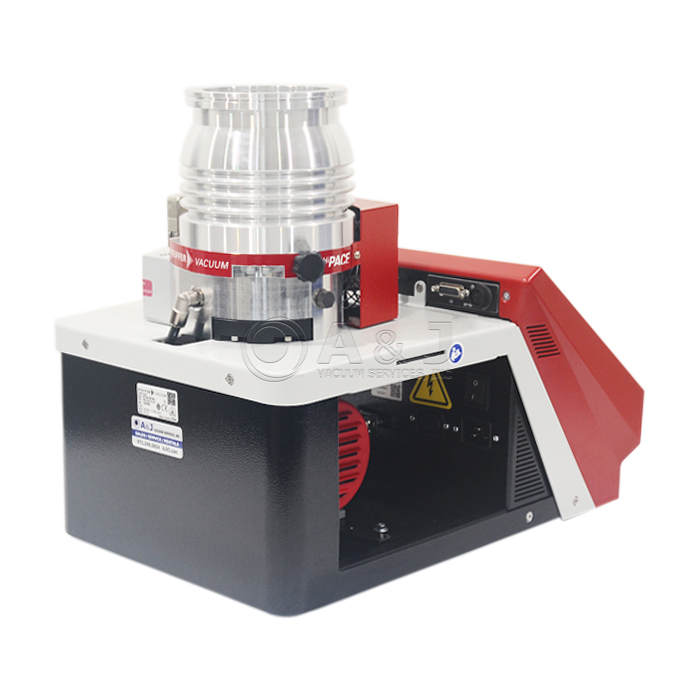

Pfeiffer HiCube 300 Neo Station with MVP 030-3 PM Q120 013 00 Features:
Click Here for Pfeiffer HiCube Neo Manual
Click Here for Pfeiffer HiPace 300 Manual
Click Here for Pfeiffer MVP 030-3 Manual
Backing pump | MVP 030-3 Three Stage Diaphragm Pump |
Cooling method, standard | Air (Forced convection) |
Flange (in) | DN 100 ISO-K |
Flange (out) | Silencer, G 1/8" |
Mains connection: Voltage | 100 – 240 V |
Mains requirement | 110 – 240 V AC, 50/60 Hz |
Mains requirement: frequency (range) | 50/60 Hz |
Mains requirement: power consumption | 170 W |
Power consumption max. | 170 W |
Pumping speed backing pump at 50 Hz | 1.8 m³/h | 1.06 cfm | 30 l/min |
Pumping speed for N2 | 260 l/s |
Sound pressure level | ≤50 dB(A) |
Turbopump | HiPace 300 with TC110 Controller |
Type | Turbo pumping station |
Ultimate pressure | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
Ultimate pressure without gas ballast | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
Weight | 20.5 kg | 45.19 lb |
Click Here for Pfeiffer HiCube Neo Manual
Click Here for Pfeiffer HiPace 300 Manual
Click Here for Pfeiffer MVP 030-3 Manual
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
