- Inlet flange: DN 63 ISO-K
- Pumping speed (N2: 67 l/s
- Ultimate pressure: < 1 x 10-7 mbar
- MVP 015 Diaphragm pump

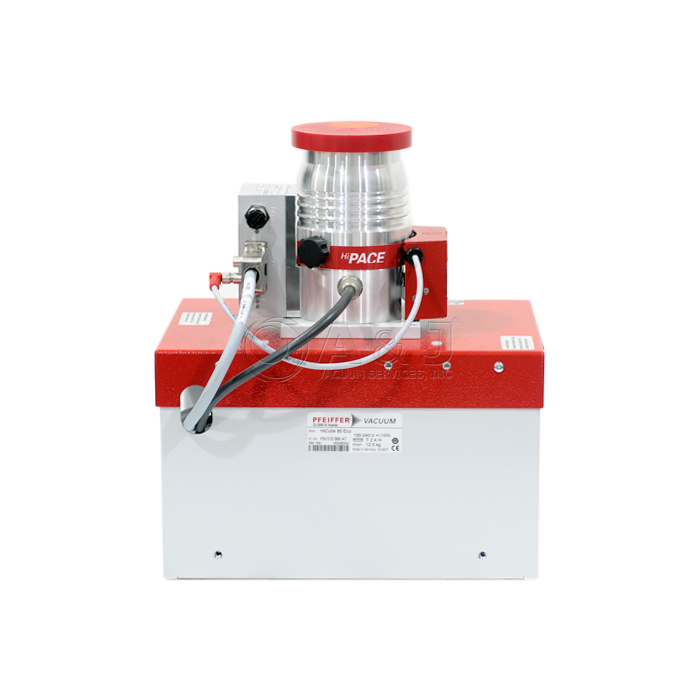

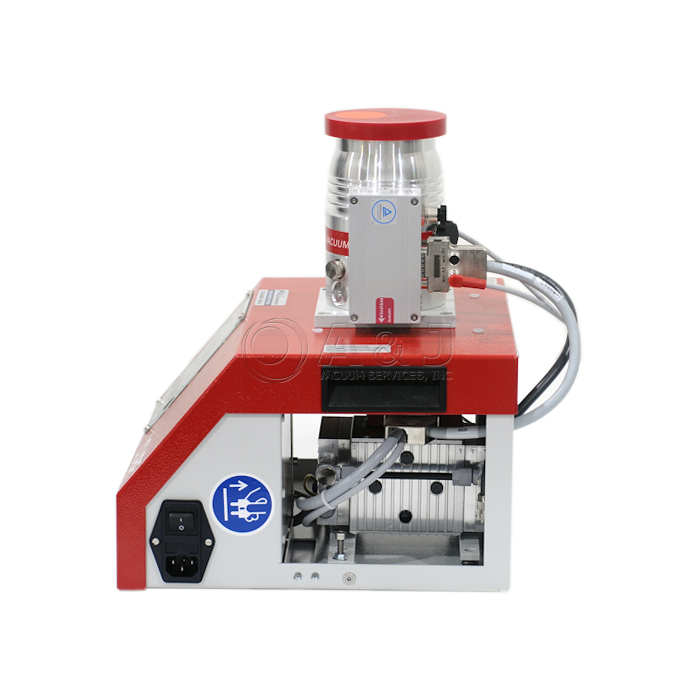

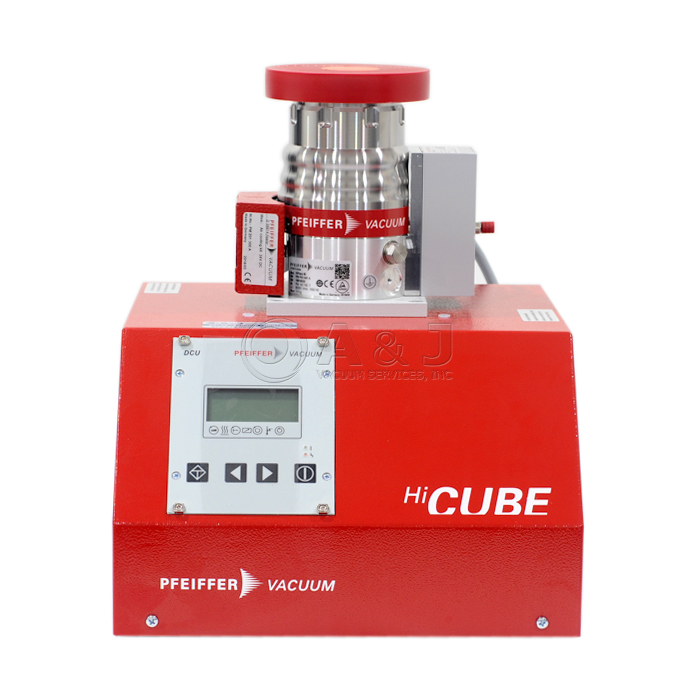

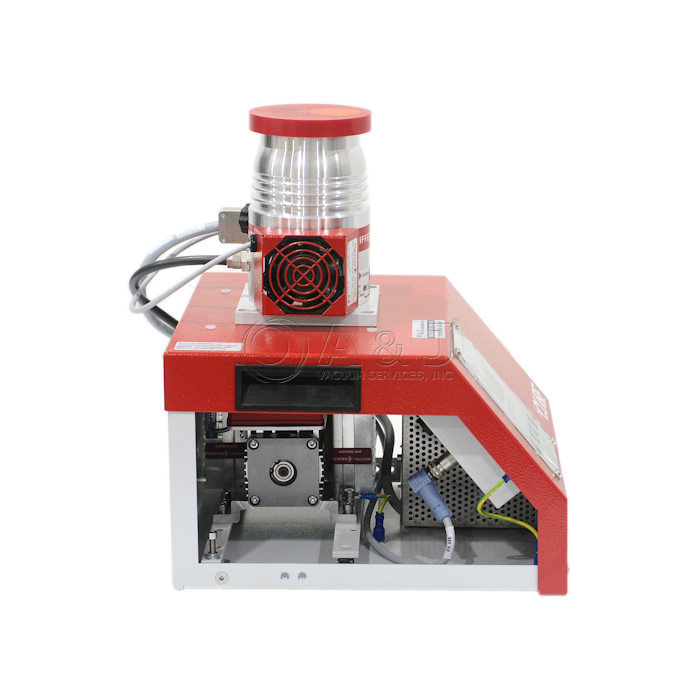

PFEIFFER HICUBE80 ECO Turbo Pumping Station, Includes HiPace 80 Turbo Vacuum Pump (DN 63 ISO-K), MVP 015 Diaphragm Pump, DCU 002 Control Unit, PKR 361 Transmitter Gauge (KF 25), 3m Cable, PM 163 935 BT, PM163395
Pfeiffer HiCube 80 ECO Overview
HiCube 80 Eco / PM 163 935 BT / Turbo Pumping Stations are fully automatic pump units which are ready for connection. A turbo pumping station consists of a portable vacuum pumping unit with a turbo pump and specially matched backing pump.
The Pfeiffer HiCube80 Eco / PM163935 BT is equipped with the DCU 002 control unit to monitor the pumping station. The DCU can be detached from the station and used together with a connection M12 cable as a remote control.
What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. We offer you the HiCube in Pro and Classic versions; available with dry compressing or oil-sealed backing pump and an ultimate pressure of up to 5 · 10-10 hPa.
The HiCube Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.
HiCube 80 Eco / PM 163 935 BT / Features:
- Compact pumping station for all high vacuum applications.
- Air cooled and ready for operation with HiPace 80 and MVP 015 dry diaphragm backing pump
- DN 63 ISO-K
- DCU 002 Control Unit
- 90-132 V AC, 50/60 Hz ; 185-265 V AC, 50/60 Hz
- PKR 361 Transmitter Gauge (KF 25), 3m Cable Included
Pfeiffer HiCube 80 ECO Applications:
- Analytical
- Leak Detection
- Vacuum Process Technology
- Research, Development and Scientific
- Particle Accelerators
- Electron-Beam Welding
- Solar Energy
Pfeiffer HiCube 80 Dimensions:
Pfeiffer PKR 361 Dimensions:
Click Here for Pfeiffer HiCube 80 Turbo Pump Station Manual
Click Here for Pfeiffer HiPace 80 Turbo Pump Manual
Click Here for Pfeiffer MVP 015-2 Diaphragm Pump Manual
Click Here for Pfeiffer PKR 361 Gauge Manual
A&J Vacuum repair / rebuild and service all Pfeiffer HiCube Turbo Pumping Stations PM 163 935 BT, along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
New PFEIFFER HICUBE80 ECO Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 ISO-K), MVP 015 Diaphragm Vacuum Pump and DCU 002 Control Unit, PMS03555, PM015886-T, HICUBE 80 ECO
Pfeiffer HiCube 80 Technical Data:
| Backing pump | MVP 015-2 |
| Cooling method, standard | Air |
| Flange (in) | DN 63 ISO-K |
| Flange (out) | Silencer, G 1/8" |
| Mains connection: Voltage | 100 – 240 V |
| Mains requirement | 110 – 240 V AC, 50/60 Hz |
| Mains requirement: frequency (range) | 50/60 Hz |
| Mains requirement: power consumption | 170 W |
| Power consumption max. | 170 W |
| Pumping speed backing pump at 50 Hz | 1 m³/h | 0.59 cfm | 16.67 l/min |
| Pumping speed for N2 | 67 l/s |
| Sound pressure level | ≤50 dB(A) |
| Turbopump | HiPace 80 |
| Type | Turbo pumping station |
| Ultimate pressure | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
| Ultimate pressure without gas ballast | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
| Weight | 12.1 kg | 26.68 lb |

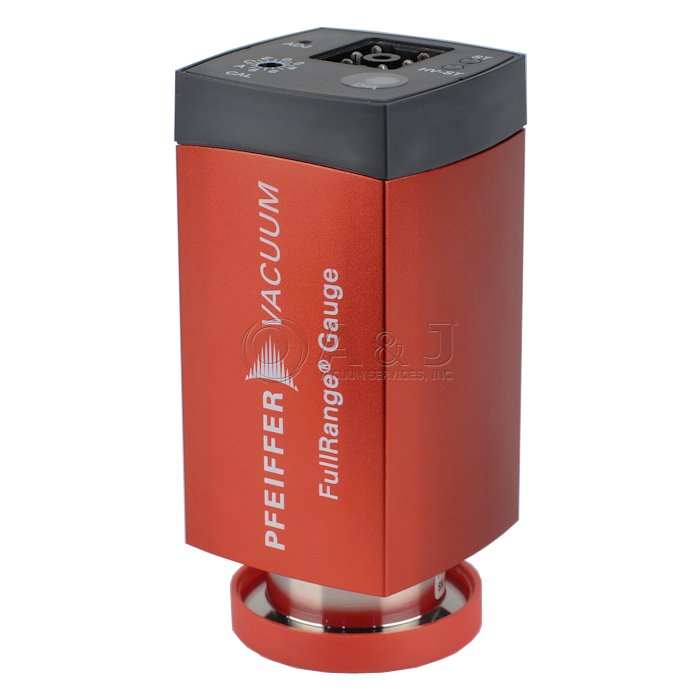

Pfeiffer PKR 361 Technical Data:
| Accuracy: 1 · 10-8 – 1 · 100 hPa | ± 30 % |
| Ambient temperature | 5-55 °C | 41-131 °F | 278-328 K |
| Anode | Molybdenum |
| Bakeout temperature | Electronics removed, ≤ 150 °C |
| Feedthrough | Glass |
| Filament | Tungsten |
| Flange, Material | Stainless Steel 1.4435 |
| Measurement range | 1 · 10-9 – 1 · 103 hPa |
| Method of measurement | Pirani/Cold Cathode |
| Nominal diameter | DN 25 ISO-KF |
| Output signal: Measurement range | 2 – 8.6 V |
| Output signal: Minimum load | 10 kΩ |
| Pressure max. | 10,000 hPa | 7,500 Torr | 10,000 mbar |
| Repeatability: 1 · 10-8 – 100 hPa | ± 5 % |
| Sensor cable length min. | 300 m |
| Supply: Power consumption max. | 2 W |
| Supply: Voltage V DC | 14.5 – 30 V DC |
| Temperature: Storage | -40-70 °C | -40-158 °F | 233-343 K |
| Volume | 19.9 cm³ |
| Weight | 280 g |
Click Here for Pfeiffer HiCube 80 Turbo Pump Station Manual
Click Here for Pfeiffer HiPace 80 Turbo Pump Manual
Click Here for Pfeiffer MVP 015-2 Diaphragm Pump Manual
Click Here for Pfeiffer PKR 361 Gauge Manual
A&J Vacuum repair / rebuild and service all Pfeiffer HiCube Turbo Pumping Stations PM 163 935 BT, along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Pfeiffer_HiCube_80_Eco_Turbo_Pumping_Stations_Info.pdf
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
