- Inlet flange: DN 63 ISO-K
- Pumping speed N2 67 l/s
- Ultimate pressure: < 5 x 10-10/ mbar
- Ultra Quiet Hiscroll 6 Backing Pump

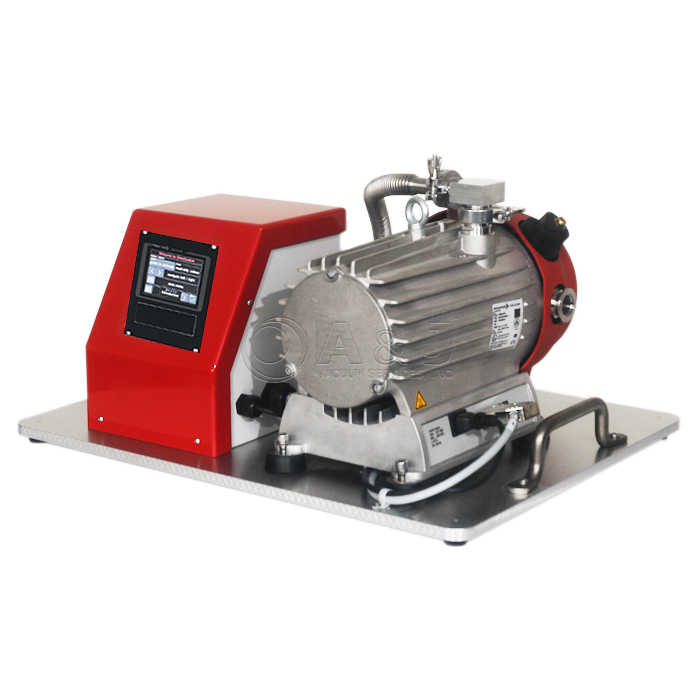

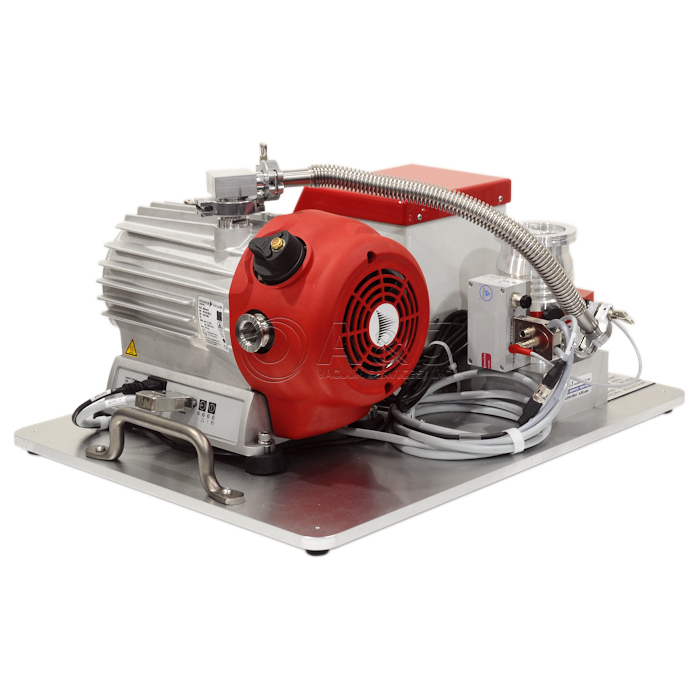

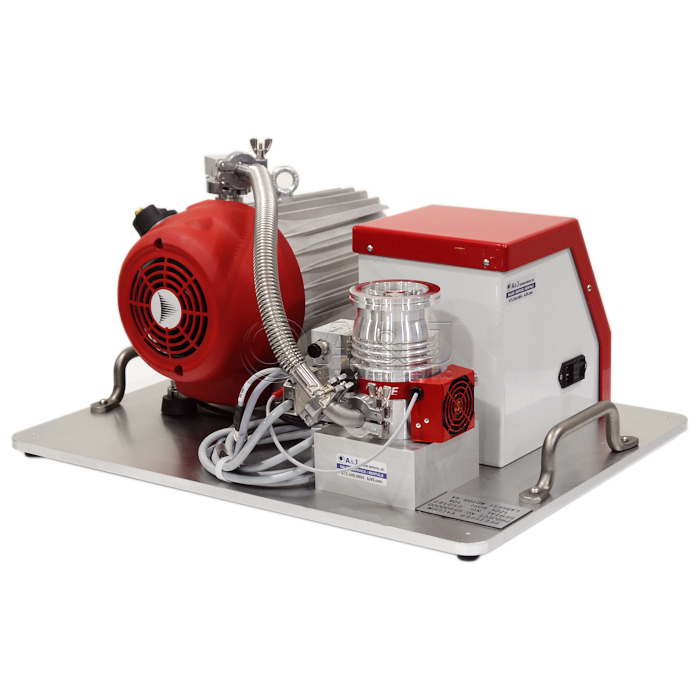

Pfeiffer HiCube S80 Eco Turbo Pumping Station, Includes HiPace S80 Turbo Pump (DN 63 ISO-K), HiScroll 6 Dry Scroll Vacuum Pump and OmniControl 001 Control Unit, HSCAJ00110N

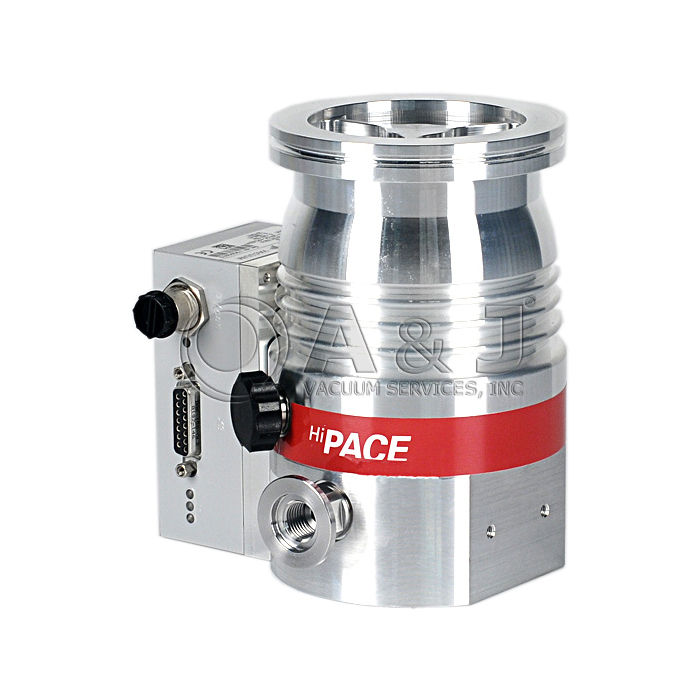

Pfeiffer HiPace S80 with DN 63 ISO Inlet Flange Overview:
The pump system consists of a HiPace 80 turbopump controlled by a digital system controller with integrated display and a HiScroll 6 rough pump. The scroll type backing pump is quiet and when combined with the HiPace turbopump, provides robust high vacuum performance with long maintenance intervals.
The Pfeiffer Vacuum HiCube S80 Eco Turbo Pumping Station is the reliable and robust bench top pumping unit for many of the High Vacuum Applications. CF-F Inlet Flange makes this system trully Ultra High Vacuum (UHV).
The Hicube S80 Station has a modern design with the latest turbo pump and electronics technology.
What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a Pfeiffer Hiscroll 6 dry scroll backing pump designed for the user’s specific application needs.
The Pfeiffer HiCube S80 Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube S80 Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.
All Pfeiffer HiCube S80 Eco turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the
vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.
Pfeiffer HiPace S80 Eco Features:
- Compact series of pumping stations for all high vacuum applications
- Air-cooled and ready for operation with HiPace 80 Turbo Pump and Hiscroll 6 Dry Scroll Backing Pump
- Pfeiffer HiCube S80 Eco comes with DN 40 ISO-K inlet flange
- DCU 002 Control Unit
- Pfieffer HiCube S80 Eco voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz
Typical High Vacuum Hicube S80 Eco Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
Pfeiffer HiCube S80 Includes:
Pfeiffer HiPace 80 Turbo Pump / PMP03942

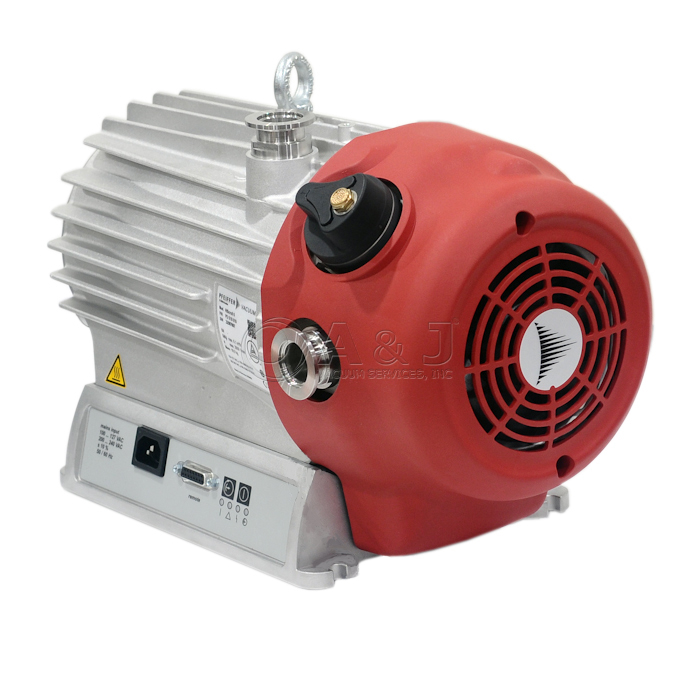

Pfeiffer HiSCroll 6 Dry Scroll Pump / PDS10000
Pfeiffer OmniControl 001 / PE D40 100 0
Click Here for Pfeiffer HiPace 80 Manual
Click Here for Pfeiffer Hiscroll 6 Manual
A&J Vacuum also repair / rebuild and service all Pfeiffer HiCube S 80 ECO Pumping Stations along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Pfeiffer HiCube S80 Eco Turbo Pumping Station, Includes HiPace S80 Turbo Pump (DN 63 ISO-K), HiScroll 6 Dry Scroll Vacuum Pump and OmniControl 001 Control Unit, HSCAJ00110N
Pfeiffer HiPace S80 with DN 63 ISO-K Inlet Flange Technical Data:
| Backing pump | HiScroll 6 |
| Cooling method, standard | Air |
| Flange (in) | DN 63 ISO-K |
| Flange (out) | DN 25-KF |
| Mains connection: Voltage | 100 – 240 V |
| Mains requirement | 110 – 240 V AC, 50/60 Hz |
| Mains requirement: frequency (range) | 50/60 Hz |
| Mains requirement: power consumption | 170 W |
| Pumping speed backing pump at 50 Hz | 6 m³/h | 3.59 cfm |
| Pumping speed for N2 | 67 l/s |
| Sound pressure level | ≤50 dB(A) |
| Turbopump | HiPace 80 |
| Type | Turbo pumping station |
| Ultimate pressure | < 5 · 10-10 hPa |
| Ultimate pressure without gas ballast | < 5 · 10-10 hPa |
| Weight | 12.1 kg | 26.68 lb |
Click Here for Pfeiffer HiPace 80 Manual
Click Here for Pfeiffer Hiscroll 6 Manual
Pfeiffer HiCube S80 Includes:
Pfeiffer HiPace 80 Turbo Pump / PMP03940
Pfeiffer HiSCroll 6 Dry Scroll Pump / PDS10000
Pfeiffer OmniControl 001 / PE D40 100 0
A&J Vacuum also repair / rebuild and service all Pfeiffer HiCube S 80 ECO Pumping Stations along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
HiPace 80 with TC110 and OPS 70, HIpace80, Pfeiffer 80 Hipace
Pfeiffer DCU-002, DCU002, PM061348T Operation Manual, DCU110, Pfeiffer DCU Controll Unit
Pfeiffer Hiscroll 6 Pump manual, Hi Scroll 6 Dry pump, PDS10000
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
