- Complete Package
- DN 63 CF-F Inlet Flange
- Controller, Cable and Air Cooling
- PM 153 906-BT

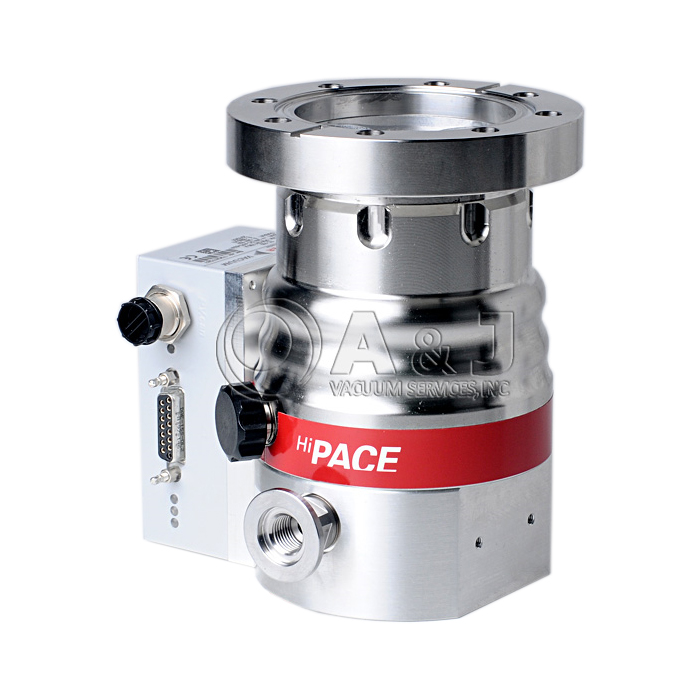

Pfeiffer Vacuum HiPace 80 Turbo Vacuum Pump, DN 63 CF-F, with TC 110 Controller, Omnicontrol 200 / PED501000 Display Unit, Cooling Fan and Memory Stick with PV Viewer Software, PM153906-BT
Pfeiffer HiPace 80 Turbo Pump Package.
Package Includes:
- HiPace 80 Turbo Pump, PM P03 941A / PMP03941A
- TC 110 Turbo Pump Controller / PM C01 790AT / PMC01790
- Omnicontrol 200 Controller Display Unit / PE D50 100 0 / PED501000
- Hipace 80 Cooling Fan / PM Z01 300AT / PMZ01300AT
- 2 Port Cable / PM 061 351-T / PM061351-T
- RS485 cable / PM 061 283T / PM061283T
The Pfeiffer HiPace 80 Series is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
Features of Hipace 80 Turbo Pump:
- Powerful Turbo Pump with a pumping speed of up to 67 l/s (N2)
- Ideal for dependable systems integration
- Installation in any orientation
- Extensive accessories available
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 80, HiPace 300, HiPace 700 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum HiPace 80 Turbo Vacuum Pump, DN 63 CF-F, with TC 110 Controller, Omnicontrol 200 / PED501000 Display Unit, Cooling Fan and Memory Stick with PV Viewer Software, PM153906-BT
Inlet Flange: DN 63 CF-F
Outlet Flange: DN 16 ISO-KF / G 1/4"
Pumping Speed:
- N2: 67 l/s
- He: 88/s
- H2: 48 l/s
- Ar: 66 l/s
Compression Ratio:
- N2: > 1 x 1011
- He: 1.3 x 107
- H2: 1.4 x 105
- Ar: > 1 x 1011
Rotational Speed: 90000 min-1 ( 2%)
Weight: 3.8 kg / 8 lbs
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 80, HiPace 300, HiPace 700 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Omnicontrol 200 Manual / Operating Instructions
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
