- Pumping speed of up to 1.8 m3/h
- 24 V DC direct voltage supply
- Dry and oil-free vacuum
- Ultimate Pressure: 3 hPa

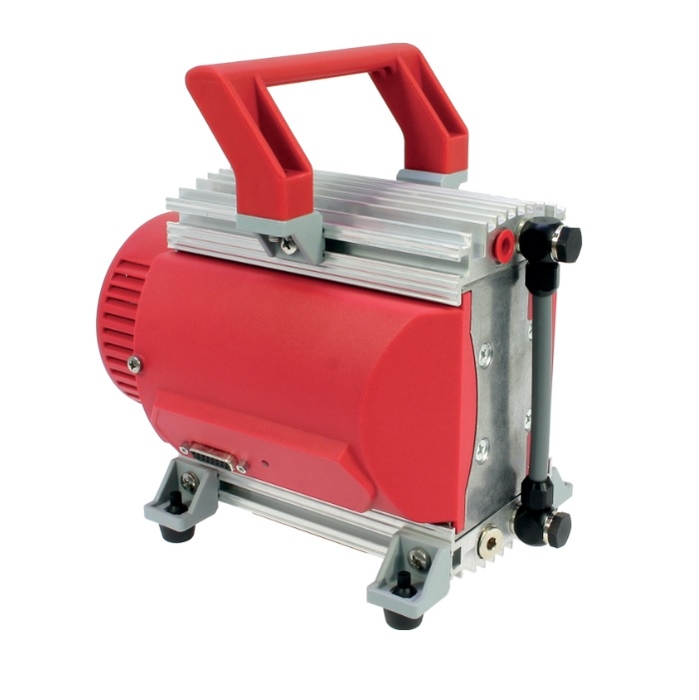

Pfeiffer MVP 030-3 DC Diaphragm Vacuum Pump, 24 V, PK T01 500
The Pfeiffer MVP 030-3 DC / PKT01500 Diaphragm Pump Overview:
The Pfeiffer Vacuum MVP 030-3 DC / PK T01 500 Diaphragm pumps are three stage, dry compressor vacuum pumps. The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
The Pfeiffer Vacuum MVP 030-3 DC Diaphragm Pump Features:
-
High-performance diaphragm pump with a pumping speed of up to 1.8 m3/h
-
For 24 V DC direct voltage supply
-
Interval operation and rotation speed control
-
Optimal process adaptation
-
Ideal for applications where a dry and oil-free vacuum is required
A&J Vacuum repairs, rebuilds, and services Pfeiffer Vacuum Pumps, including Diaphragm Pumps and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer MVP 030-3 DC Diaphragm Vacuum Pump, 24 V, PK T01 500
Technical Data
| Pumping speed | 1.8 m³/h | 1.06 cfm | 30 l/min |
| Ultimate pressure with gas ballast | 3 hPa | 2.25 Torr | 3 mbar |
| Ultimate pressure without gas ballast | 2.5 hPa | 1.88 Torr | 2.5 mbar |

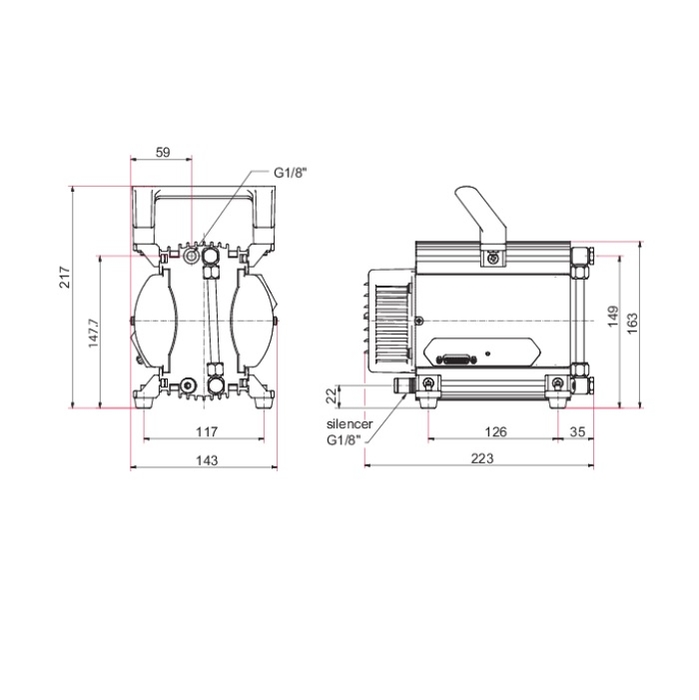

| Flange (in) | G 1/8" + hose clamp DN 6 |
| Number of pumping stages | 4 |
| Flange (out) | G 1/8” with silencer |
| Motor version | DC motor |
| Voltage: Range | ± 10 % |
| Current max. | 5.5 A |
| Rated current absorption | 4.5 A |
| Protection category | IP20 |
| Operating altitude, max. | 2000 m |
| Rotation speed | 300-2,400 rpm | 300-2,400 min-1 |
| Cooling method, standard | Convection cooled |
| Ambient temperature | 10-40 °C | 50-104 °F | 283-313 K |
| Temperature: Storage | -10-60 °C | 14-140 °F | 263-333 K |
| Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Sound pressure level | 48 dB(A) |
| Emission sound pressure level without gas ballast or purge | 48 dB(A) |
| Switch New | No |
| Leak rate | ≤ 1 · 10-2 Pa m3/s | ≤ 7.5 · 10-2 Torr l/s | ≤ 1 · 10-1mbar l/s |
| Weight | 4.3 kg | 9.48 lb |
Pfeiffer MVP 030-3 DC Diaphragm Pump Operating Instructions Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer MVP 030-3 DC Diaphragm Vacuum Pump, 24 V, PK T01 500
The Pfeiffer MVP 030-3 DC / PKT01500 Diaphragm Pump Overview:
The Pfeiffer Vacuum MVP 030-3 DC / PK T01 500 Diaphragm pumps are three stage, dry compressor vacuum pumps. The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
The Pfeiffer Vacuum MVP 030-3 DC Diaphragm Pump Features:
-
High-performance diaphragm pump with a pumping speed of up to 1.8 m3/h
-
For 24 V DC direct voltage supply
-
Interval operation and rotation speed control
-
Optimal process adaptation
-
Ideal for applications where a dry and oil-free vacuum is required
A&J Vacuum repairs, rebuilds, and services Pfeiffer Vacuum Pumps, including Diaphragm Pumps and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Specifications
Pfeiffer MVP 030-3 DC Diaphragm Vacuum Pump, 24 V, PK T01 500
Technical Data
| Pumping speed | 1.8 m³/h | 1.06 cfm | 30 l/min |
| Ultimate pressure with gas ballast | 3 hPa | 2.25 Torr | 3 mbar |
| Ultimate pressure without gas ballast | 2.5 hPa | 1.88 Torr | 2.5 mbar |
| Flange (in) | G 1/8" + hose clamp DN 6 |
| Number of pumping stages | 4 |
| Flange (out) | G 1/8” with silencer |
| Motor version | DC motor |
| Voltage: Range | ± 10 % |
| Current max. | 5.5 A |
| Rated current absorption | 4.5 A |
| Protection category | IP20 |
| Operating altitude, max. | 2000 m |
| Rotation speed | 300-2,400 rpm | 300-2,400 min-1 |
| Cooling method, standard | Convection cooled |
| Ambient temperature | 10-40 °C | 50-104 °F | 283-313 K |
| Temperature: Storage | -10-60 °C | 14-140 °F | 263-333 K |
| Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
| Sound pressure level | 48 dB(A) |
| Emission sound pressure level without gas ballast or purge | 48 dB(A) |
| Switch New | No |
| Leak rate | ≤ 1 · 10-2 Pa m3/s | ≤ 7.5 · 10-2 Torr l/s | ≤ 1 · 10-1mbar l/s |
| Weight | 4.3 kg | 9.48 lb |
