- P/N PK Z10 157
- For pumping speeds of up to 10 m3/h
- Body material Aluminium
- Flange (in) DN 25 ISO-KF

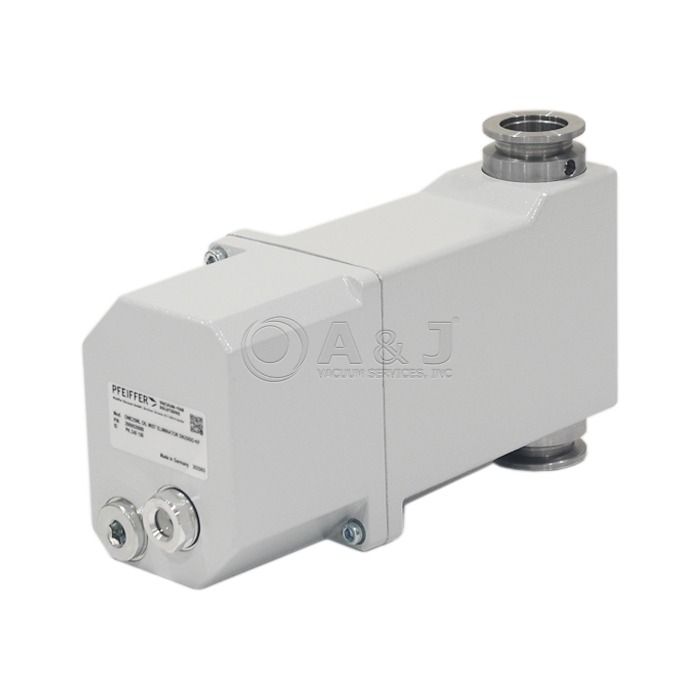

Pfeiffer OME25M, oil mist filter for pumping speeds of up to 10 m3/h PK Z40 157
Pfeiffer OME 25 M Overview:
- For pumping speeds of up to 10 m3/h
- Sits on the pump’s exhaust port and sustainably prevents contamination of the air by oil mist
- For exhaust flange
- Prevents emission of oil mist
- Customer benefit: Clean, oil free exhaust air
Pfeiffer Vacuum supplies a broad portfolio of mass spectrometers, ranging all the way to high-perfomance mass spectrometers for plasma analysis.
Pfeiffer OME 25 M Dimensions:
A: 147 mm
B: 80 mm
C: 132 mm
D: 127 mm
E: 16 mm
F: 105 mm
G: 23 mm
H: 48 mm
Click Here for Pfeiffer OME 25 M Manual
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer OME25M, oil mist filter for pumping speeds of up to 10 m3/h PK Z40 157
Pfeiffer OME 25 M Technical Data:
| Body material | Aluminium |
| Capacity | 0.15 l |
| Cartridge material | Glass mat/polyester |
| Degree of separation | 99.98 % |
| Exhaust pressure, max. | Atmospheric pressure |
| Flange (in) | DN 25 ISO-KF |
| Flange (out) | DN 25 ISO-KF |
| For pumping speed up to | 12 m³/h | 7.06 cfm | 200 l/min |
| Leak rate | 1 · 10-4 Pa m3/s | 7.5 · 10-4 Torr l/s | 1 · 10-3mbar l/s |
| Pressure max. (absolute) | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Weight | 1.4 kg | 3.09 lb |
Click Here for Pfeiffer OME 25 M Manual
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
