- Inlet flange: DN 40 ISO-KF
- Ultimate pressure: < 1 x 10-7 hPa
- Pumping speed: 35 l/s
- Backing pump: MVP 070

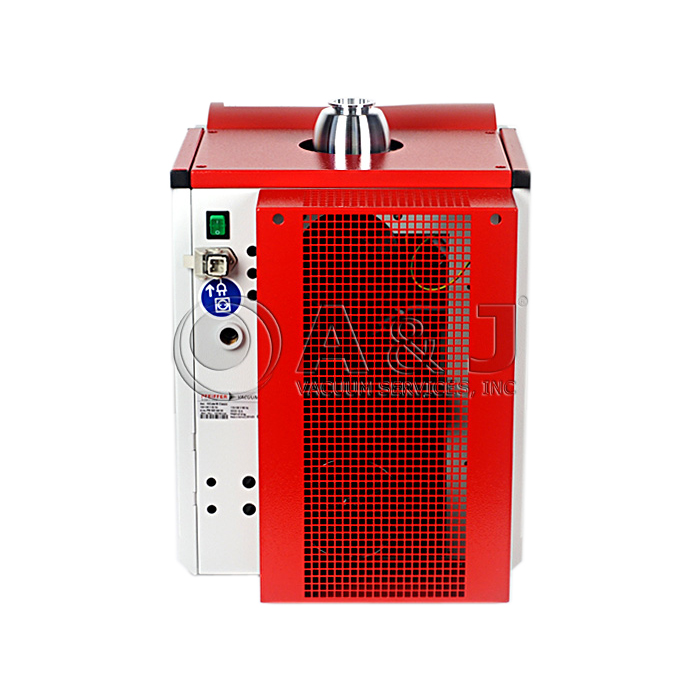

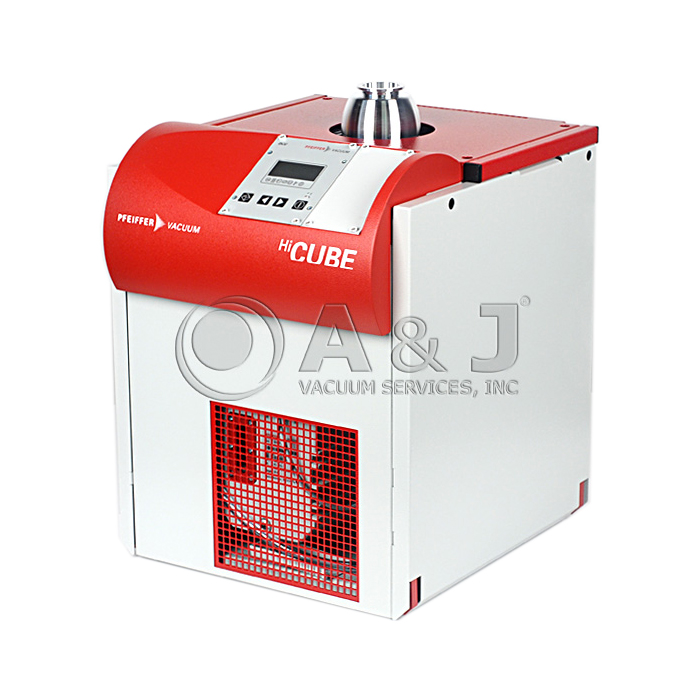

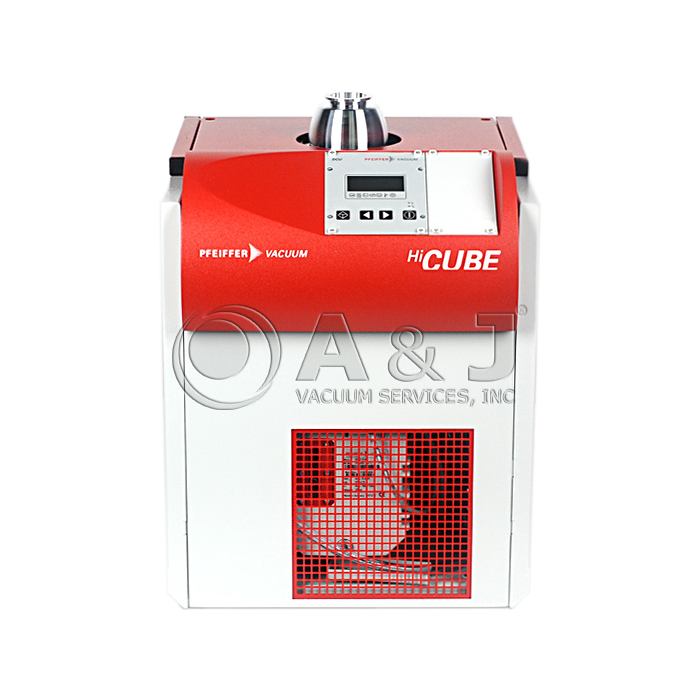

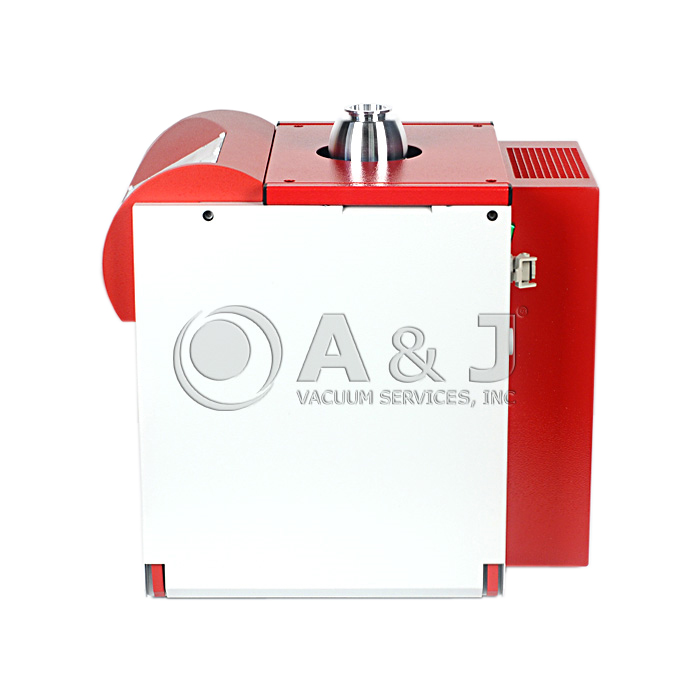

Pfeiffer Vacuum HiCube 80 Classic Turbo Pump Station, MVP 070, DN 40 ISO-KF, 230 V AC, PMS2025000
Pfeiffer HiCube 80 Classic Overview
The HiCube 80 PM S20 250 00 Classic pumping stations are suitable for all high and ultra high vacuum applications and are available with dry and oil-sealed backing pumps having pumping speeds of up to 685 l/s. Available for selection as backing pumps are dry diaphragm pumps with pumping speeds of up to 4.3 m3 / h or rotary vane pumps with pumping speeds of up to 6 m3 / h.
Heating Jacket, Water Cooling and 4 guiding rollers with 2 brakes are included.
With the modular design principle of the new Pfeiffer HiCube 80 series, the never-before-seen versatility will satisfy the widest range of requirements in the pumping speed range from 35 l/s to 685 l/s. Fully configured and ready for immediate employment, the turbopump and backing pump offer a perfect interplay: “Plug and Play” the way you want it.
The HiCube mobile turbopumping station sets new standards: It offers a convincing combination that consists of a new turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. Pfeiffer Vacuum offers you the new HiCube in Pro and Classic versions; available with dry or oil-sealed backing pump and an ultimate pressure of up to 5
Pfeiffer HiCube 80 Classic Features
- 10-10 mbar. Available as a version within the HiCube series that offers especially compact dimensions is the HiCube Eco with pumping speeds of 35 l/s to 67 l/s.
- HiCube 80 Clasic Station is a Combination pumping station incorporating turbopump and backing pump for all high vacuum applications
- Air-cooled and ready for operation with HiPace 80 and MVP 070 dry diaphragm backing pump
Pfeiffer HiCube 80 Classic Product Description
Pfeiffer HiCube 80 Classic Dimensions
Click Here for Pfeiffer HiCube Classic Turbo Station Manual
Click Here for Pfeiffer MVP 040 Diaphragm Pump Manual
Click Here for Pfeiffer HiPace 80 Turbo Pump Manual
A&J Vacuum repair / rebuild and service all Pfeiffer Hicube80 Classic Turbo Pumping Stations PM S20 250 00 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Turbo Pumping Stations Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Pfeiffer Vacuum HiCube 80 Classic Turbo Pump Station, MVP 070, DN 40 ISO-KF, 230 V AC, PMS2025000
Pfeiffer HiCube 80 Classic Technical Data
Click Here for Pfeiffer HiCube Classic Turbo Station Manual
Click Here for Pfeiffer MVP 040 Diaphragm Pump Manual
Click Here for Pfeiffer HiPace 80 Turbo Pump Manual
A&J Vacuum repair / rebuild and service all Pfeiffer Hicube80 Classic Turbo Pumping Stations PM S20 250 00 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Turbo Pumping Stations Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Pfeiffer Vacuum HiCube Classic Series User Manual
HiCube Classic Series Backing Pump (MVP 070) User Manual
Pfeiffer HiPace 80 Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer Vacuum HiCube 80 Classic Turbo Pump Station, MVP 070, DN 40 ISO-KF, 230 V AC, PMS2025000
Pfeiffer HiCube 80 Classic Overview
The HiCube 80 PM S20 250 00 Classic pumping stations are suitable for all high and ultra high vacuum applications and are available with dry and oil-sealed backing pumps having pumping speeds of up to 685 l/s. Available for selection as backing pumps are dry diaphragm pumps with pumping speeds of up to 4.3 m3 / h or rotary vane pumps with pumping speeds of up to 6 m3 / h.
Heating Jacket, Water Cooling and 4 guiding rollers with 2 brakes are included.
With the modular design principle of the new Pfeiffer HiCube 80 series, the never-before-seen versatility will satisfy the widest range of requirements in the pumping speed range from 35 l/s to 685 l/s. Fully configured and ready for immediate employment, the turbopump and backing pump offer a perfect interplay: “Plug and Play” the way you want it.
The HiCube mobile turbopumping station sets new standards: It offers a convincing combination that consists of a new turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. Pfeiffer Vacuum offers you the new HiCube in Pro and Classic versions; available with dry or oil-sealed backing pump and an ultimate pressure of up to 5
Pfeiffer HiCube 80 Classic Features
- 10-10 mbar. Available as a version within the HiCube series that offers especially compact dimensions is the HiCube Eco with pumping speeds of 35 l/s to 67 l/s.
- HiCube 80 Clasic Station is a Combination pumping station incorporating turbopump and backing pump for all high vacuum applications
- Air-cooled and ready for operation with HiPace 80 and MVP 070 dry diaphragm backing pump
Pfeiffer HiCube 80 Classic Product Description
Pfeiffer HiCube 80 Classic Dimensions
Click Here for Pfeiffer HiCube Classic Turbo Station Manual
Click Here for Pfeiffer MVP 040 Diaphragm Pump Manual
Click Here for Pfeiffer HiPace 80 Turbo Pump Manual
A&J Vacuum repair / rebuild and service all Pfeiffer Hicube80 Classic Turbo Pumping Stations PM S20 250 00 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Turbo Pumping Stations Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Specifications
Pfeiffer Vacuum HiCube 80 Classic Turbo Pump Station, MVP 070, DN 40 ISO-KF, 230 V AC, PMS2025000
Pfeiffer HiCube 80 Classic Technical Data
Click Here for Pfeiffer HiCube Classic Turbo Station Manual
Click Here for Pfeiffer MVP 040 Diaphragm Pump Manual
Click Here for Pfeiffer HiPace 80 Turbo Pump Manual
A&J Vacuum repair / rebuild and service all Pfeiffer Hicube80 Classic Turbo Pumping Stations PM S20 250 00 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Turbo Pumping Stations Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Videos
Spare Parts
Accessories
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
