- Inlet flange: DN 63 ISO-K
- Outlet flange: DN 16 ISO-KF
- Pumping speed N2 67 l/s
- Compression ratio N2> 1 x 10-11
Pfeiffer Vacuum HiPace 80 Neo Turbo Pump with TC 80 Drive Controller, DN 63 ISO-K, PM P08 301 10 / PMP0830110
Pfeiffer HiPace 80 Neo Overview PM P08 306 10:
The Pfeiffer HiPace 80 Neo Series is a small yet powerful turbopump featuring pumping speeds up to 67 l/s for N2. The HiPace 80 Neo models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
With the launch of the new advanced HiPace 80 Neo, the Laser Balancing developed by Pfeiffer Vacuum is introduced - an innovation that provides improved durability and lower vibration as well as noise emissions.
Pfeiffer TC 80 controller is one of the smallest controllers for Turbo Pumps. The Pfeiffer TC 80 electronic drive unit automatically regulates the drive power down in the event of excessive temperatures.
Pfeiffer Vacuum Turbopumps of the HiPace Neo series are suitable for use with dry compressing backing pumps for mounting in all orientations.
Pfeiffer Vacuum HiPace 80 Neo Turbo Pump Features PMP0830610:
- Powerful HiPace 80 Neo Turbo Pump with a pumping speed of up to 67 l/s (N2)
- HiPace 80 Neo is the world's first laser balanced turbopump
- Ideal for dependable systems integration
- Integrated TC 80 drive electronics
- Installation in any orientation
- Extensive accessories available
Click Here for Pfeiffer HIPace 80 Neo Manual
Click Here for Pfeiffer HiPace Series Brochure
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80 Neo, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum HiPace 80 Neo Turbo Pump with TC 80 Drive Controller, DN 63 ISO-K, PM P08 301 10 / PMP0830110

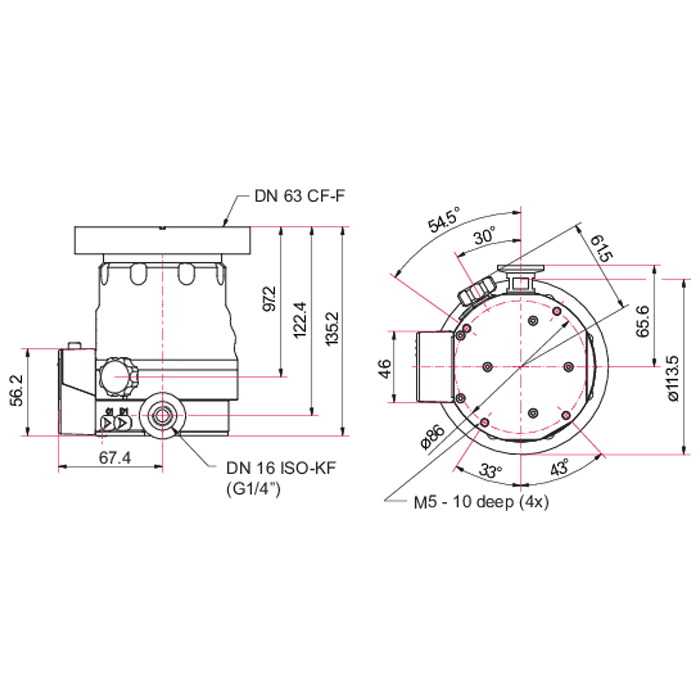

Pfeiffer HiPace 80 Neo with TC-80Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 10-11 |
| Compression ratio for H2 | 1.4 · 10-5 |
| Compression ratio for He | 1.3 · 10-7 |
| Compression ratio for N2 | > 1 · 10-11 |
| Cooling method, optional | Air/Water |
| Cooling method, standard | Convection |
| Cooling water flow | 75 l/h |
| Cooling water flow, max | 75 l/h |
| Cooling water flow, min | 75 l/h |
| Cooling water temperature | 5-25 °C | 41-77 °F | 278-298 K |
| Electronic drive unit | with TC 110 |
| Flange (in) | DN 63 ISO-K |
| Flange (out) | DN 16 ISO-KF/G ¼" |
| Fore-vacuum max. for N2 | 22 hPa | 16.5 Torr | 22 mbar |
| Gas throughput at full rotational speed for Ar | 0.54 hPa·l/s |
| Gas throughput at full rotational speed for H2 | 15.3 hPa·l/s |
| Gas throughput at full rotational speed for He | 2.7 hPa·l/s |
| Gas throughput at full rotational speed for N2 | 1.3 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Mounting orientation | Any |
| Operating voltage: V DC | 24 (± 5 %) V DC |
| Permissible axial magnetic field max. | 23 mT |
| Protection category | IP54 |
| Pumping speed for Ar | 66 l/s |
| Pumping speed for H2 | 48 l/s |
| Pumping speed for He | 58 l/s |
| Pumping speed for N2 | 67 l/s |
| Rotation speed ± 2 % | 90,000 rpm | 90,000 min-1 |
| Rotation speed variable | 50 – 100 % |
| Run-up time | 75 sec |
| Sound pressure level | ≤ 48 dB(A) |
| Ultimate pressure according to PNEUROP | < 1 · 10-7 hPa | < 7.5 · 10-8Torr | < 1 · 10-7 mbar |
| Venting connection | G 1/8" |
| Weight | 1.7 kg | 3.75 lb |
Click Here for Pfeiffer HIPace 80 Neo Manual
Click Here for Pfeiffer HiPace Series Brochure
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Hipace 80 Neo Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
