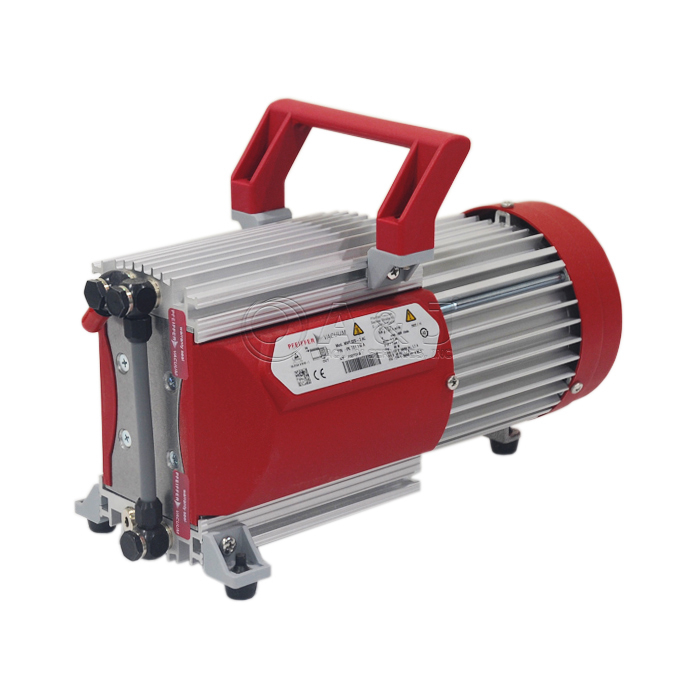

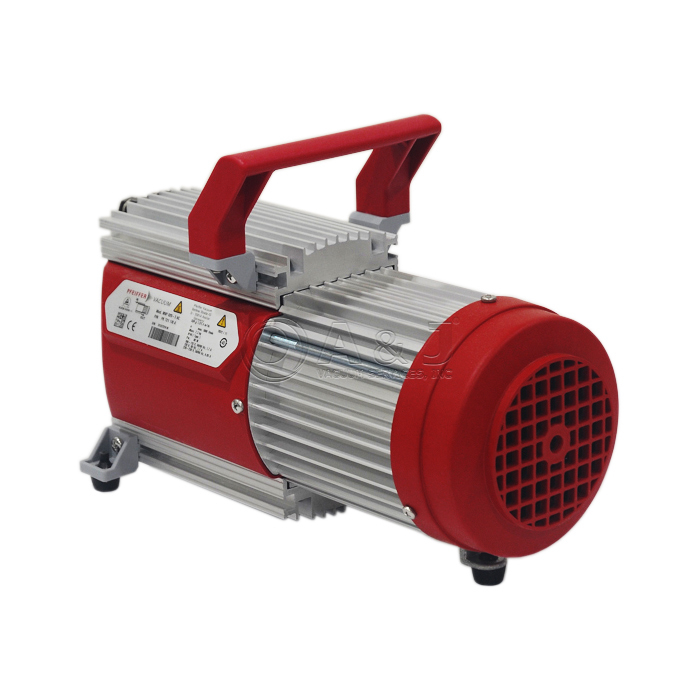

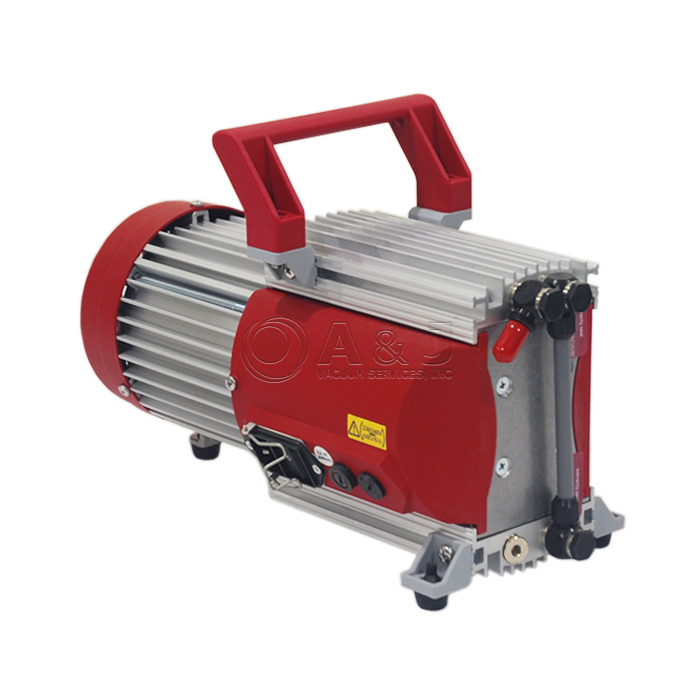

Pfeiffer Vacuum MVP 020 3 Diaphragm Pump Overview:

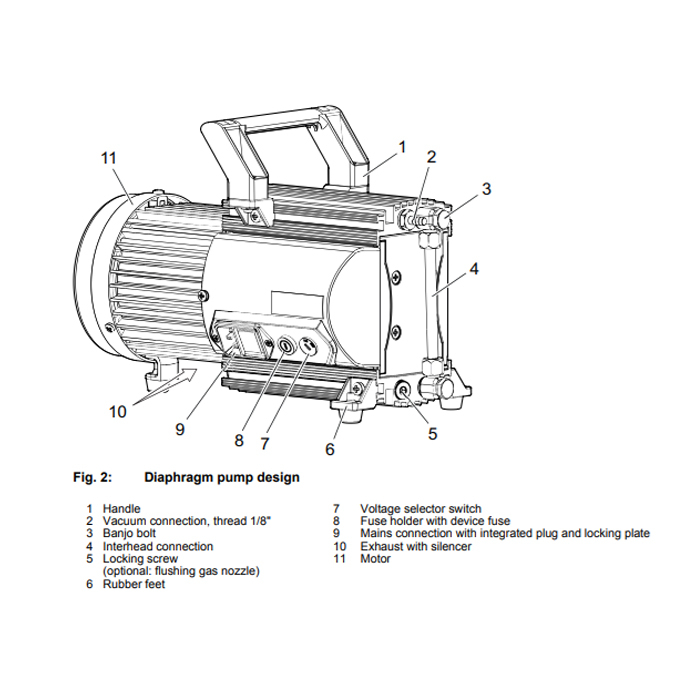

The Diaphragm Vacuum Pumps of the series MVP 020-3 AC / PK T01 110 are three stage, dry compressor vacuum pumps.The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm.The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
The Pfeiffer Vacuum MVP 020 Vacuum Pump Applications:
A&J Vacuum repairs, rebuilds, and services Pfeiffer Vacuum Pumps, including Diaphragm Pumps and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
PK T01 110 Technical Data:
Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
Cooling method, standard | Air |
Emission sound pressure level without gas ballast or purge | 52 dB(A) |
Exhaust pressure, max. | 1,100 hPa | 825 Torr | 1,100 mbar |
Flange (in) | G 1/8" elbow union + enclosed hose DN 6 x 1000 mm with a straight union in G ¼" at the end |
Flange (out) | G 1/8” with silencer |
Intake pressure max. | 1,100 hPa | 825 Torr | 1,100 mbar |
Leak rate | ≤ 5 · 10-4 Pa m3/s | ≤ 3.75 · 10-3Torr l/s | ≤ 5 · 10-3 mbar l/s |
Motor version | 1-ph motor |
Number of pumping stages | 2 |
Operating altitude, max. | 2000 m |
Protection category | IP20 |
Pumping speed at 50 Hz | 0.5 m³/h | 0.29 cfm | 8.33 l/min |
Pumping speed at 60 Hz | 0.7 m³/h | 0.41 cfm | 11.67 l/min |
Rated current absorption | 1.1 A |
Rotation speed at 50 Hz | 1,500 rpm | 1,500 min-1 |
Rotation speed at 60 Hz | 1,800 rpm | 1,800 min-1 |
Sound pressure level | 52 dB(A) |
Switch New | Yes |
Temperature: Storage | 5-40 °C | 41-104 °F | 278-313 K |
Ultimate pressure with gas ballast | 4.5 hPa | 3.38 Torr | 4.5 mbar |
Ultimate pressure without gas ballast | 3.5 hPa | 2.62 Torr | 3.5 mbar |
Weight | 6.5 kg | 14.33 lb |
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
