The Electronic Drive Unit TCP 015 (TCP015) serves to drive PFEIFFER turbomolecular pumps with single phase direct current motors (1500 Hz). With the aid of a transformer the mains voltage is reduced to 32 V, rectified and provides the drive energy for the Print Module TCP 035 which is an element of the TCP 015. The switchable transformer power pack covers the following input voltage ranges:
The TCP can be operated in conjunction with Pumping Station Control Unit TCS 015 to operate a pumping station with backing pump. The delivery consignment encompasses:
The TCP 015 has been suppressed in accordance with German Industrial Standard VDE 0871, limit value curve B. The unit has been tested and cleared by the appropriate authorities in accordance with EN 61010/VDE0411 “Safety Ordinance For Electrical Units”. The electronic drive unit contains the following functional features:
Compatible with Turbo Pumps TMH /TMU 062 to TMH /TMU 064, TMH /TMU 065.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.

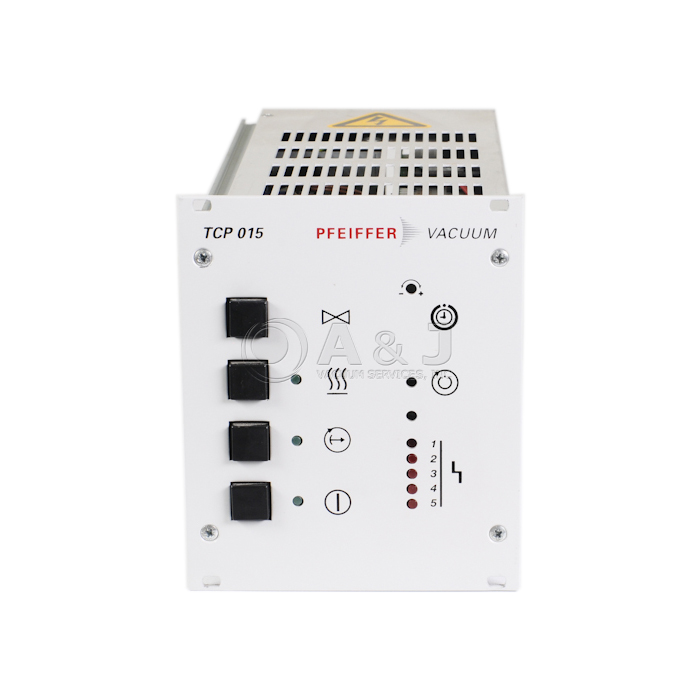

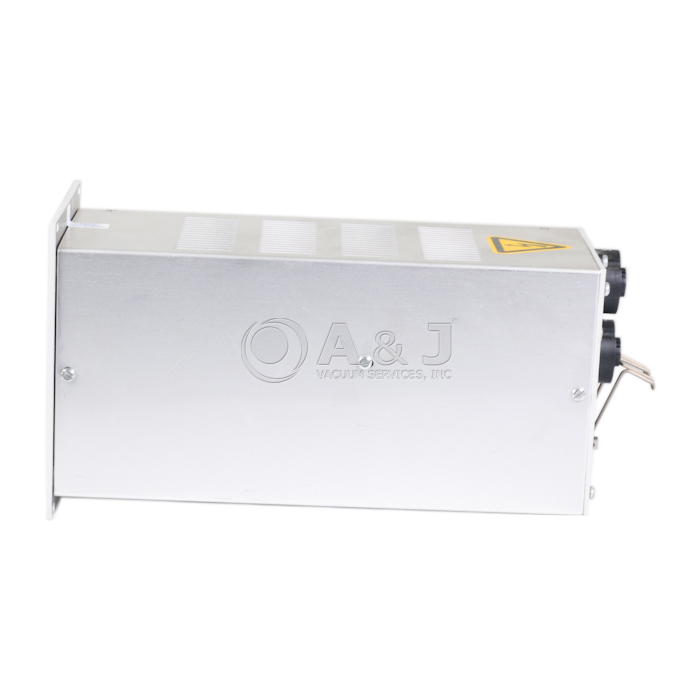

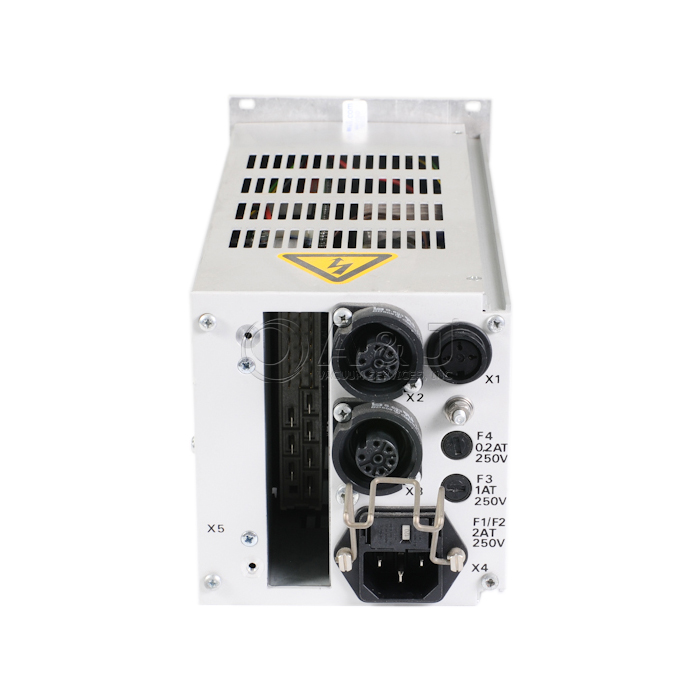

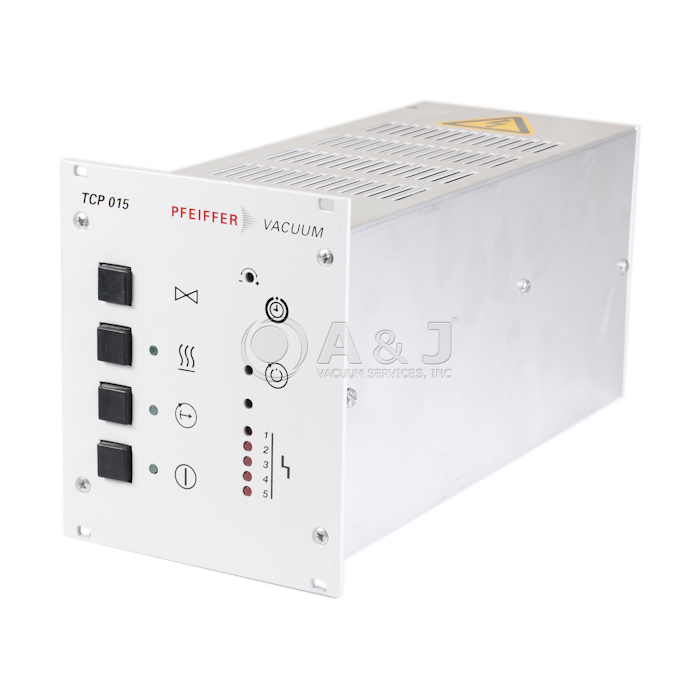

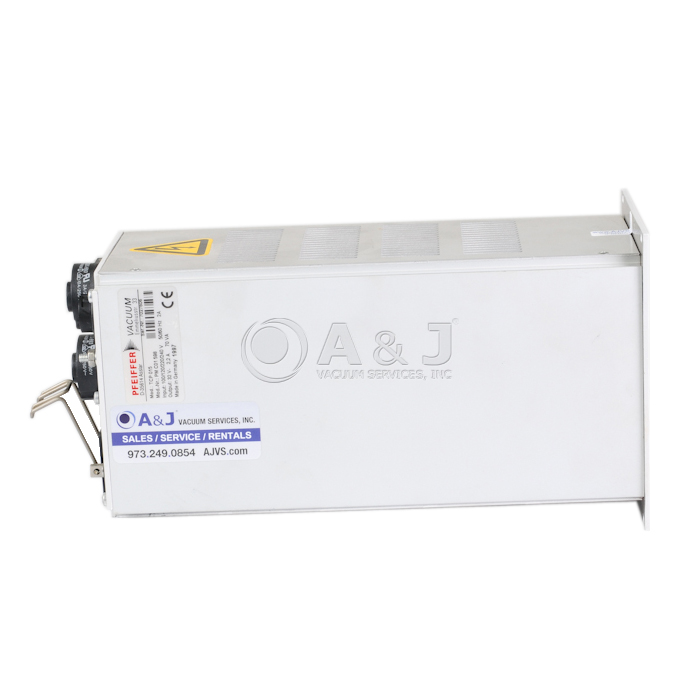

Fully Remanufactured Pfeiffer TCP 015 Turbo Pump Controller, PMC01598
Technical Data
Electronic Drive Unit TCP 015 | ||
Connection voltage | (100 V) 90 - 112 | |
switchable | V AC | (120 V) 108 - 133 |
V AC | (220 V) 198 - 245 | |
(240 V) 216 - 267 | ||
Mains frequency | Hz | 50/60 |
Power take-up, max. | VA | 110 |
With air cooling | ||
Output voltage, max. | V | 30 - 40 V |
Normal operations | ||
Start-up current | A | 2,2 |
Nominal frequency ± 2% max. | Hz | 1500 |
Stand-by operations | ||
Start-up current | A | 2,2 |
Nominal frequency ± 2% max. | Hz | 1000 |
Contact load K1 | ||
Ohmic load | A | 4 |
Inductive load | A | 2 |
Switching voltage, max. | VAC | 265 |
VDC | 30 | |
Analog outputs: | ||
Rotation speed | 10 V = 1500 Hz | |
± 2% | ||
Current | 10 V = 2,5 A | |
± 5% | ||
BLoad carrying capacity of | mA | 5 |
the 0-10 V outputs | ||
Start-up time | min | 8 - 60 |
Works setting | min | 8 |
Rotation speed switchpoint | Hz | 750 |
Permissible ambient temperature | °C | 0 - 40 |
Cable length Pump - TCP | m | 3 |
Dimensions, front panel | mm | 128,5x106,3 |
Insertion length | mm | 227 |
Weight | kg | 2,7 |
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
