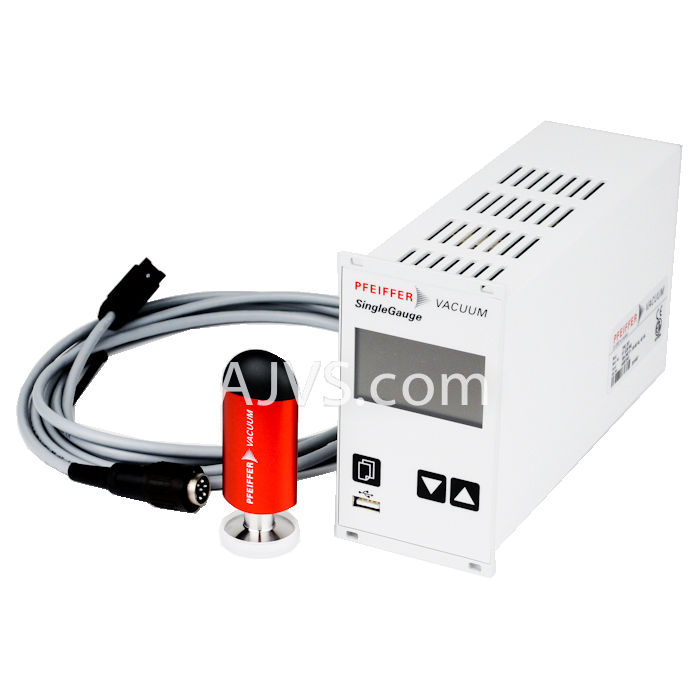

Pfeiffer measurement equipment TPG361 Measurement Package with 1 TPR280 and 3m Cable PT441950-T
Included:
- SingleGauge measurement unit TPG 361
- Active Pirani transmitter TPR 280
- Flange size: DN 16 ISO-KF
- Cable Length: 3 m
Pfeiffer measurement equipment TPG-361 Measurement Package with 1 TPR-280 and 3m Cable PT441950-T.
Universal power supply for worldwide use.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
Pfeiffer measurement equipment TPG361 Measurement Package with 1 TPR280 and 3m Cable PT441950-T
Technical Data TPG 361:
| Ambient Temperature | 5-50 °C | 41-122 °F | 278-323 K |
| Connection for Gauge | 1 |
| Display Rate | ≥ 10 Hz |
| Error Signal: Working Contact, Potential-Free | 1 Pcs. |
| Filter Time Constant, Rapid/Normal/Slow | 0.02 s/0.15 s/0.75 s |
| I/O Interfaces | USB, RS-485, Ethernet |
| Mains Requirement: Frequency (Range) | 50/60 Hz |
| Mains Requirement: Power Consumption | 45 VA |
| Mains Requirement: Voltage (Range) | 100–240 V |
| Measurement Range | 5 * 10^[-11] – 5.5 * 10^4 hPa |
| Measurement Rate | ≥ 100 Hz |
| Measuring Channel | 1 Pcs. |
| Power Consumption Max. | 45 VA |
| Protection Category | IP20 |
| Safety | CE, UL |
| Set Point: Changeover Contact, Potential-Free | 5 Pcs. |
| Set Point: Current AC | 1 A |
| Set Point: Current DC | 0.5 A |
| Set Point: Voltage AC | 30 V AC |
| Set Point: Voltage DC | 60 V DC |
| Set Point Number | 2 Pcs. |
| Signal Output: Measuring Value, Analog | 0 – 10 V |
| Temperature: Storage | -20-60 °C | -4-140 °F | 253-333 K |
| Weight | 1.1 kg | 2.43 lb |
Technical Data TPR 280:
| Accuracy: 1 * 10^(-3) to 100 hPa | ± 15 % |
| Ambient Temperature | 5-60 °C | 41-140 °F | 278-333 K |
| Bakeout Temperature at Flange | 80 °C | 176 °F | 353 K |
| Feature | Stainless Steel, Metal Sealed |
| Feedthrough | Glass |
| Filament | Tungsten |
| Flange Material | Stainless Steel |
| Measurement Range | 5 · 10-4 – 1 · 103 hPa |
| Nominal Diameter | DN 16 ISO-KF |
| Output Signal: Measurement Range | 2.2–8.5 V |
| Output Signal: Minimum Load | 10 kΩ |
| Pressure - Maximum: | 10,000 hPa | 7,500 Torr | 10,000 mbar |
| Protection Category | IP40 |
| Repeatability: 1 * 10^(-3) to 100 hPa | ± 2 % |
| Resolution | 1 % of Reading |
| Response Time | 80 ms |
| Seal | Metal |
| Sensor Cable Length (min.) | 200 m |
| Supply: Power Consumption (max.) | ≤ 1 W |
| Supply: Voltage V DC | 14 – 30 V DC |
| Temperature: Storage | -20-65 °C | -4-149 °F | 253-338 K |
| Volume | 1.5 cm³ |
| Weight | 80 g |
Manual_Instructions_TPG361_TPG362_SingleGauge_DualGauge_Controller.pdf
Pfeiffer TPG 361, TPG 362 Vacuum Gauge Controller PT G28 040, PT G28 290
Manual_Instructions_TPR280_TPR281_Pirani_Gauge.pdf
|
