Edwards EMF20 Oil Mist Filters are used to separate and trap oil mist and odors discharged with the exhaust from oil sealed rotary vacuum pumps. The Oil Mist Filters have two-part injection molded plastic bodies which contain a fiber composite oil mist filter and an activated carbon odor filter. Exhaust gases from the pump travel upwards to the center of the Oil Mist Filter and through the filter element to the outside. Oil droplets that are trapped by the fiber composite element travel down the filter and collect in a reservoir in the base of the Oil Mist Filter.
The EMF20 Oil Mist Exhaust Filter is designed to be used with the following Edwards Rotary Vane Pumps:
Rated Flow: | 20 m3h-1 |
Maximum Back Pressure: | 12 psig |
Relief Pressure: | 20 psig |

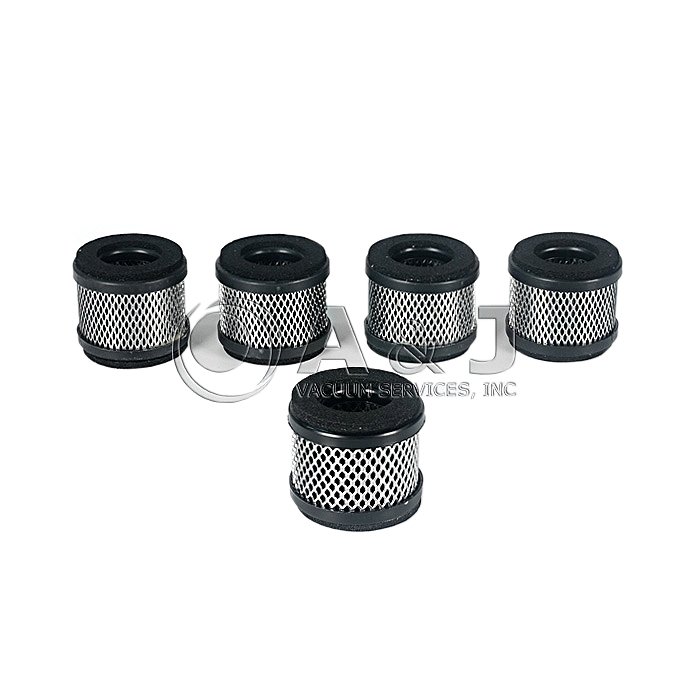

Odor Filter Element: | Activated carbon |
Mist Filter Element: | Epoxy impregnated borosilicate glass fibre |
Outlet Flange: | NW 25 |
Outlet Flange: | NW 25 |
Weight: | .7 kg / 1.54 lbs |
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
