Alcatel Adixen, Major Repair Kit for Adixen Pascal Series Vacuum Pump 2021 C2, PN 104616FR
Item#: PN01444 Mfr Part#: 104616FR Manufacturer: Adixen / Alcatel
Condition: New In Stock
New Alcatel Adixen, Major Repair Kit for Adixen Pascal Series Vacuum Pump 2021 C2, PN 104616FR

Features:
  • PN01444
  • Vanes Included
  • Major Rebuild kit
  • PN 104616FR

PRICE: $495.00
WEB SAVINGS: $5.00
YOU PAY: $490.00
Item#: PN01444 Mfr Part#: 104616FR
Alcatel Adixen, Major Repair Kit for Adixen Pascal Series Vacuum Pump 2021 C2, PN 104616FR
Item#: PN01444 Mfr Part#: 104616FR Manufacturer: Adixen / Alcatel

Alcatel Adixen, Major Repair Kit for Adixen Pascal Series Vacuum Pump 2021 C2, PN 104616FR


Overview

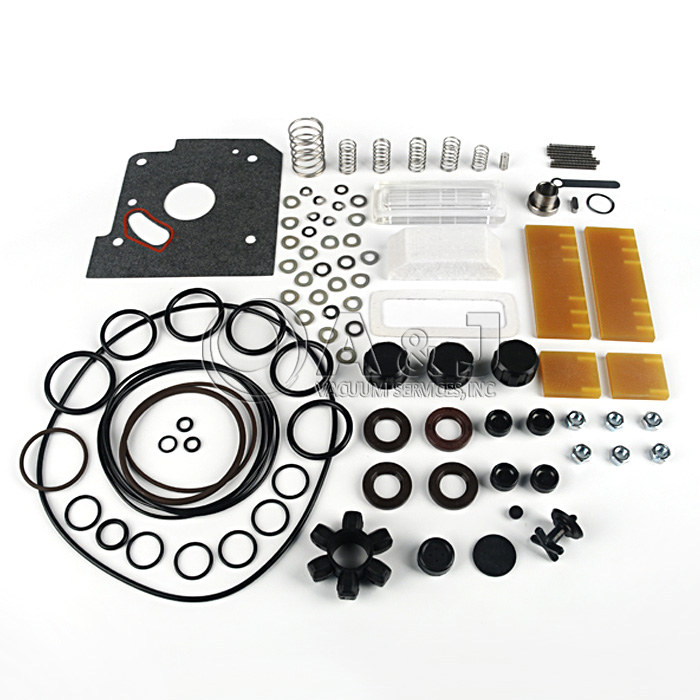

The Alcatel Adixen Major Repair Kit includes everything needed for major overhauls on the Alcatel Adixen Pascal Series 2021 C2 Pump.The parts included in the Alcatel Adixen Major Repair Kits for 2005, 2010, 2015, 2021 C1/C2/I pumps, are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen C1/C2/I Series Pump Models are available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen Pascal C1/C2/I Series Rotary Vane Vacuum Pumps.

The Alcatel, Adixen Major Repair Kit for 2021 C1/C2/I Series Pump contains the following parts:

DESCRIPTION PART NO. QTY

Oil Pump Vane

A230044G

1

Shouldered Ring

A250011

1

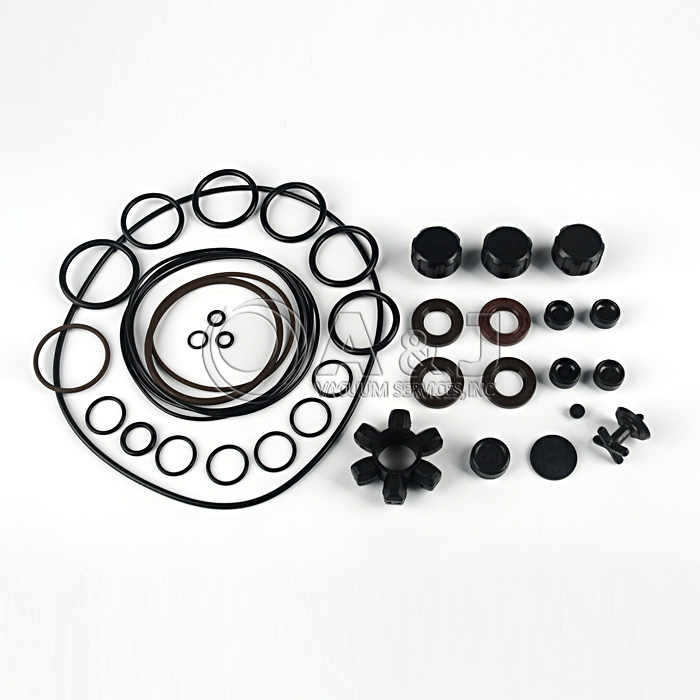

O-Ring

A320035

3

O-Ring

A320036

1

O-Ring

A320067

1

O-Ring

A320109

1

ASB Nib

A340023

1

O-Ring

A40005

1

O-Ring

A40007

1

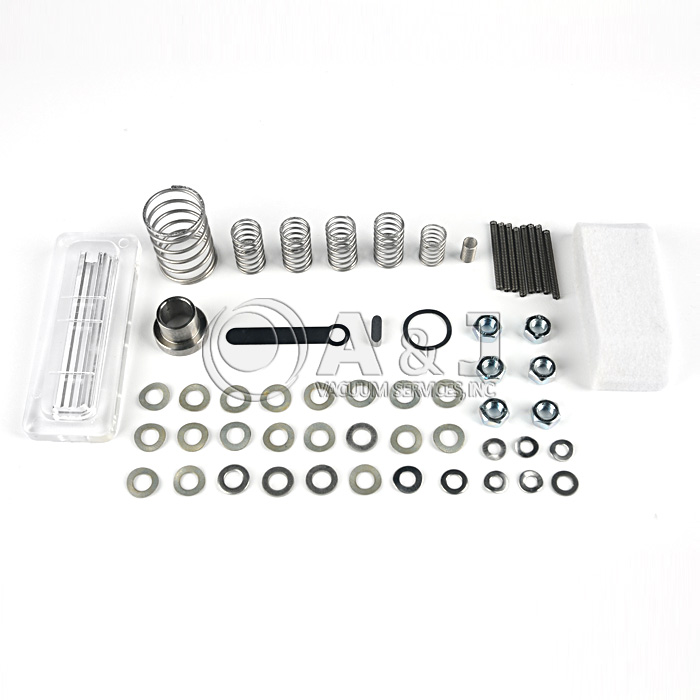

Valve Spring

A52541

4

Coupling

A52553

1

Exhaust Valve

A52655V

4

Vane Spring

A53040

8

Spring

A65149

1

Spring

A65617

1

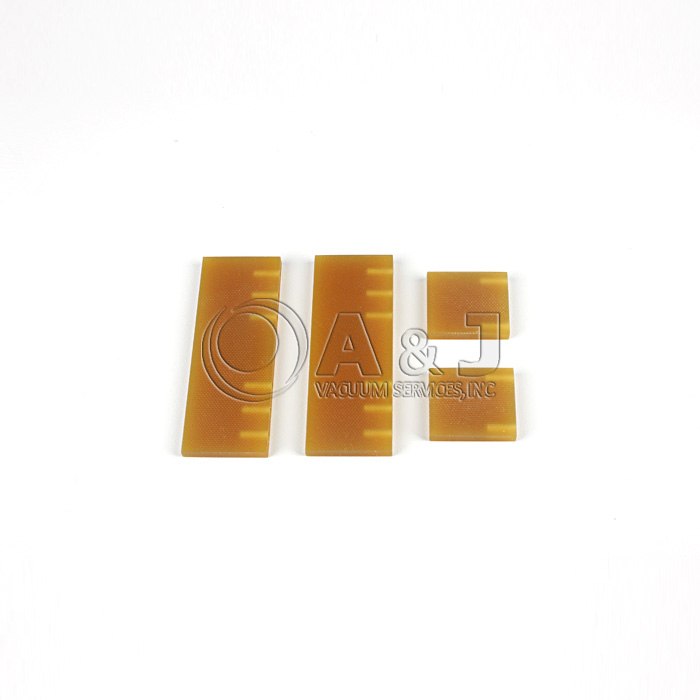

2nd Stage Vane

A65756G

2

1st Stage Vane

A65759G

2

Sight Glass

A65786

1

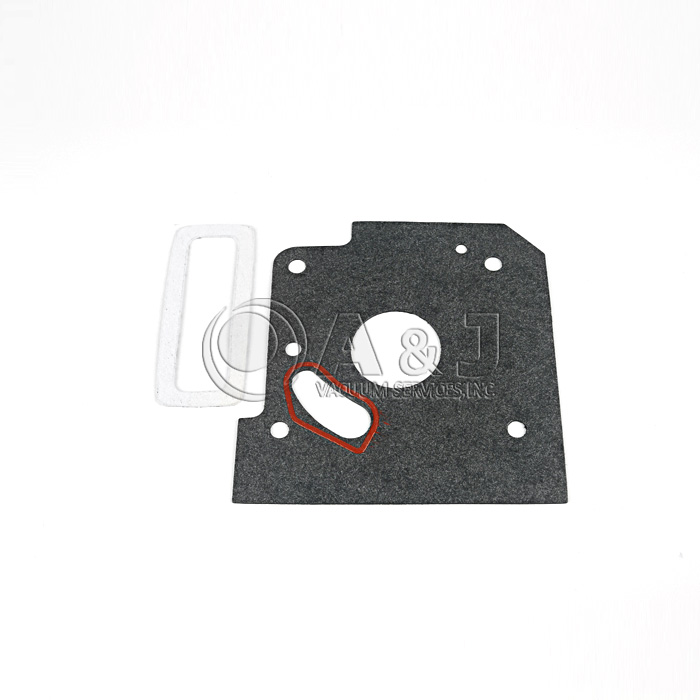

Sight Glass Gasket

A65789

1

Gas Ballast Sleeve

A65792

1

Gas Ballast Spring

A65797

1

ASB Device

A65798

1

ASB Spring

A65799

1

Centering Pin

A71040

4

Shaft Key

A71067

1

Felt Pad

A720007

1

Flat Washer M5

A73304

2

Waved Washer M4

A73452

4

Waved Washer M5

A73453

1

Waved Washer M6

A73454

19

O-Ring

A79148

1

O-Ring

A79509

1

O-Ring

A79513

4

O-Ring

A79537

1

O-Ring

A82003

1

O-Ring

A82004

3

O-Ring

A82007

1

O-Ring

A82014

1

O-Ring

A82025

4

Viton Shaft Seal

A82063

3

Double Lip Viton Shaft Seal

A82063-01

1

Waved Washer

A84646

1

Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, Models 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
