- Dual-Stage Rotary Vane Pump With Speed of 35 m^3/h
- Three-Phase Motor With Wide Voltage Range
- Integrated Gas Ballast & Safety Valve
- Temperature Sensor (3TF) For Added Protection

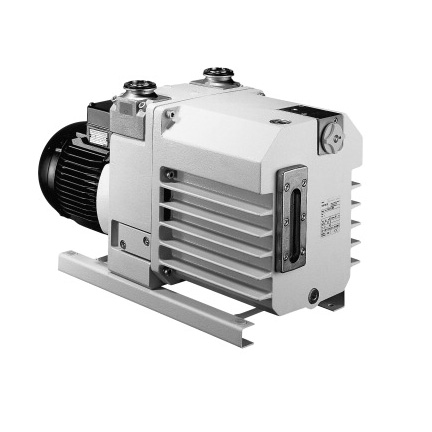

Pfeiffer DuoLine 35, 3-Phase Motor, 3TF, 190-210/330-365 V (± 5%) 50 Hz; 208-230/360-400 V (± 5%) 60 Hz; PKD45642
Pfeiffer DuoLine 35, 3-Phase Motor Rotary Vane Pump - Product Overview:
The Pfeiffer DuoLine 35 is a dual-stage rotary vane pump with a pumping speed of 20 cubic meters (m^3) per hour. The pump comes equipped with a three-phase motor.
Our Pfeiffer DuoLine rotary vane pumps cover all applications in the low-to-medium vacuum range of up to 20^(-3) mbar. These pumps offer reliable operation for critical industrial applications such as drying processes, metallurgical processes or resin potting and casting systems, serving either as a standalone pump or backing pump in our roots pumping stations and turbo pumping stations
The use of a magnetic coupling minimizes maintenance requirements and leads to considerable cost savings per pump and maintenance interval.
The Pfeiffer DuoLine 35 is reliable, clean, and comes with low maintenance requirements. An integrated safety and gas ballast valve is included within the product, while its various motor voltages allow for worldwide employment and standardization of the product. The DuoLine 35 contains no non-ferrous metals.
Pfeiffer DuoLine 35 Key Features & Attributes:
- Dual-Stage, High-Performance Rotary Vane Pump Utilizing a Pumping Speed of 35 m^3/h
- 3-phase Motor w/ Voltage 190-210/330-365 V (± 5%) 50 Hz or 208-230/360-400 V (± 5%) 60 Hz Supply Voltages
- Temperature Sensor (3TF) for Optimal Motor Protection/Durability
- Integrated Gas Ballast & HV Safety Valve
- Ideally Used for all Low-to-Medium Vacuum Applications
- Included Special Feature: Various Motor Voltages for Worldwide Employment/Standardization of Units
Pfeiffer Rotary Vane Pumps - Technical Information:
Pfeiffer Vacuum manufactures some of the most widely-utilized varieties of advanced rotary vane used in a variety of industrial applications in the twenty-first century, including laboratory processes, chemical and process engineering, among others. These products are ideally utilized for the low-to-medium intensity vacuum range. Pfeiffer vacuum pumps are especially known for their durability and wide range of application.
A rotary vane pump functions as a displacement pump, creating a low-pulsation suction volume flow. Rotary vane pumps include an eccentrically-supported rotor with two rotating vanes, encased and revolving within a housing. The Pfeiffer Rotary Vane Pumps offered to our clients are oil-lubricated (wet-version pumps); these operating fluids help to enhance the insulation of pump components and ensure maximum durability and efficiency of the product.
We offer both single-stage and dual-stage Pfeiffer Rotary Vane Vacuum Pumps on our website. Single-stage pumps are the preferred choice for low-intensity vacuum applications, while dual-stage pumps are the recommended choices for the medium and upper intensity range of vacuum applications.
A&J Vacuum services and repairs Pfeiffer DuoLine 35 Pumps along with all other Pfeiffer Rotary Vane and Turbo Pumps offered on our website. Please contact us for additional information about our service program or visit http://www.ajvs.com/service.php to access our Service page. We likewise offer emergency service and repair upon request. If you have any questions or would like to obtain additional information, Please call A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
| Emission sound pressure level without gas ballast | ≤ 61 dB (A) |
| Flange (in) | DN 40 ISO-KF |
| Flange (out) | DN 40 ISO-KF |
| Leak rate safety valve | ≤ 1 · 10-4 mbar l/s |
| Mains requirement: voltage (range) | 190-210/330-365 V (± 5 %) 50 Hz ; 208-230/360-400 V (± 5 %) 60 Hz |
| Operating fluid | P3 |
| Operating fluid filling | 3.2 l |
| Pumping speed at 50 Hz | 32 m3/h |
| Pumping speed at 60 Hz | 36 m3/h |
| Rated power 50 Hz | 1.1 kW |
| Rated power 60 Hz | 1.3 kW |
| Rotation speed at 50 Hz | 1500 rpm |
| Rotation speed at 60 Hz | 1800 rpm |
| Switch | No |
| Ultimate pressure with gas ballast | ≤ 5 · 10-3 mbar |
| Ultimate pressure without gas ballast | ≤ 3 · 10-3 mbar |
| Weight | 56 kg |
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
