- Pumping speed: 30 l/m (50 Hz)
- Ultimate pressure: 0.67 Pa
- Inlet port: DN 16 KF
- 100-120 Volts
Ulvac GHD-031A Vacuum Pump, Rotary Vane, DN 16 KF, 100-120 V, 50/60 Hz, 1045151
Ulvac GHD-031 Overview:
The pumping speed of Ulvac GHD-031 up to 36 L/min at 60 Hz. GHD 031(1045151) has the ultimate pressure at 0.67 Pa. The weight of GHD 031 is 9.3 kg. Inlet port is KF-16. Ulvac GHD-031 overall dimensions is 120(W) mm x 288.5(L) mm x 163(H) mm.
The GHD Series of small vacuum pumps is a family of oil-sealed rotary vane pumps designed for a wide variety of applications including use in analytical and laboratory equipment and as a backing pump for the industry leading HELIOT 900 Helium Leak Detector. The GHD is designed with a magnetically coupled motor to eliminate the problem of shaft seal leakage, and improve the life of the motor. Available in multiple sizes to accommodate the precise needs of your application.
Ulvac GHD031A Features & Applications:
- Wide voltage range
- Magnet coupling for no oil leakage from shaft seal
- Integrated check valve below the inlet port for backflow prevention
- Helium leak detection
- Analytical equipment
- Laboratory use

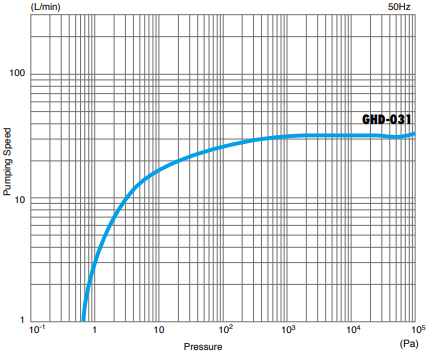

Ulvac GHD 031A Pumping Speed:
Click Here for Ulvac GHD-031 Manual
A&J Vacuum Services offers full repair/service of Ulvac Pumps, along with all other brands offered on our website. AJVS also services Ulvac Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Ulvac GHD-031A Vacuum Pump, Rotary Vane, DN 16 KF, 100-120 V, 50/60 Hz, 1045151

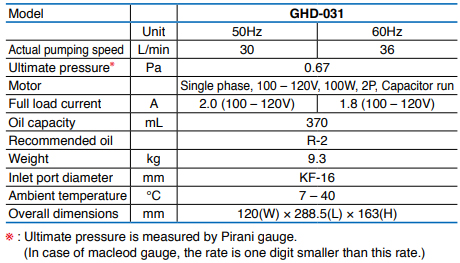

Ulvac GHD-031A Technical Data:
Click Here for Ulvac GHD-031 Manual
A&J Vacuum Services offers full repair/service of Ulvac GHD 031A Pumps, along with all other brands offered on our website. AJVS also services Ulvac Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
GHD_MBS_Series_Rotary_Vane_Pump_Brochure.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
