Vacuubrand MD 1C +AK+EK Chemistry Diaphragm Pump, 100-120V/50-60Hz, US power cord, 0.8 CFM, 2 mbar, 696633
The MD 1C diaphragm pump is a Three Stage chemistry design pump, which is an excellent solution for continuous dry oil free vacuum pumping of harsh and corrosive vapors and gases with high requirements regarding ultimate vacuum pressure.
The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling and active protection of the environment.
The MD 1C has well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The MD 1C with gas ballast valve is optimally prepared for pumping easily condensable vapors (high boiling solvents).
The MD 1C three-stage construction provides the advantageous combination of high pumping speed and deep ultimate vacuum in a pump with a very small footprint. All parts in contact with pumped media are made of chemically resistant fluoroplastics.
Performance features;
-
Outstanding vapor tolerance
-
Ultra low vibration
-
Superior chemical resistance
-
Great ultimate vacuum
-
Sipmle to use
-
proven long diaphragm life
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand MD 1C +AK+EK Chemistry Diaphragm Pump, 100-120V/50-60Hz, US power cord, 0.8 CFM, 2 mbar, 696633
| Technical data | Unit | MD 1C +AK+EK |
|---|---|---|
| Number of heads / stages | 4 / 3 | |
| Max. pumping speed at 50/60 Hz | m3/h | 1.3 / 1.5 |
| Max. pumping speed at 50/60 Hz | cfm | 0.8 / 0.9 |
| Ultimate vacuum (abs.) | mbar/torr | 2 / 1.5 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 4 / 3 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Coolant connection | 2 x hose nozzle DN 6-8 mm | |
| Rated motor power | kW | 0.08 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |

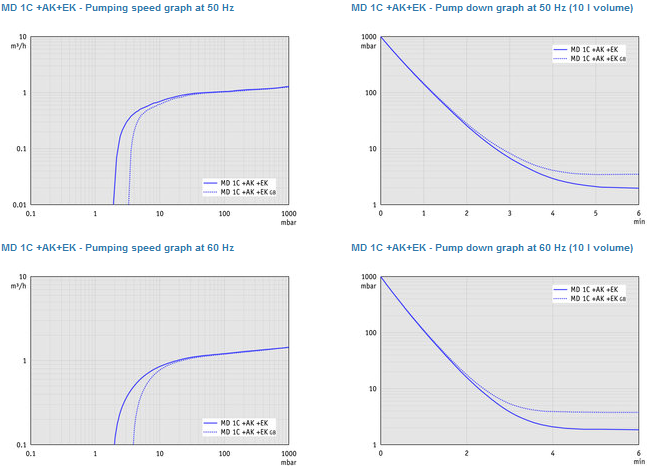

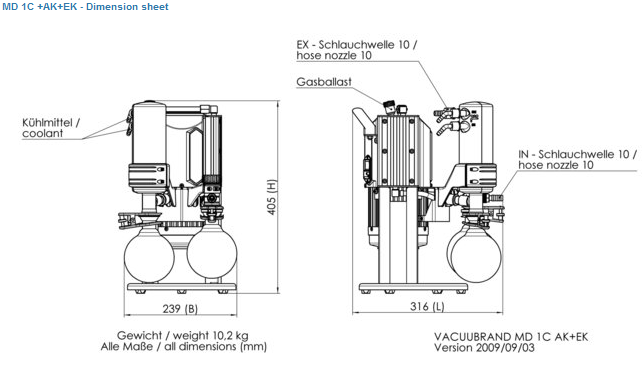

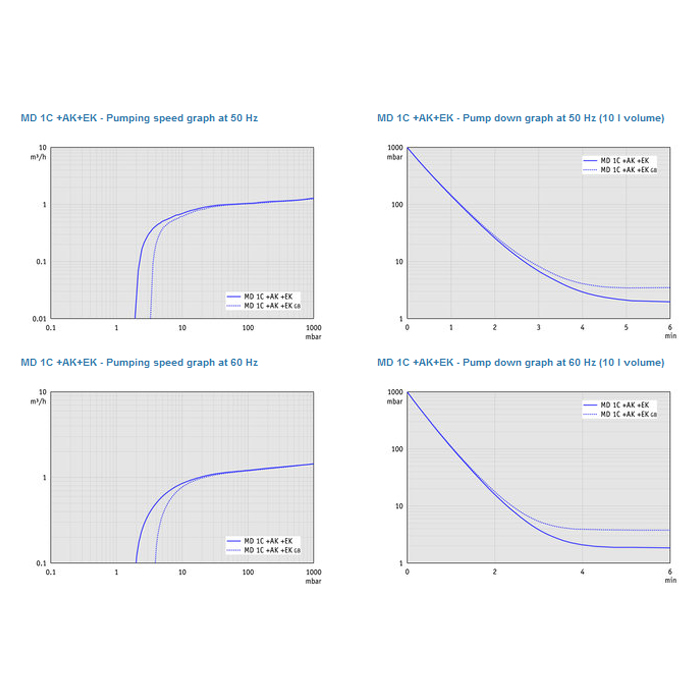

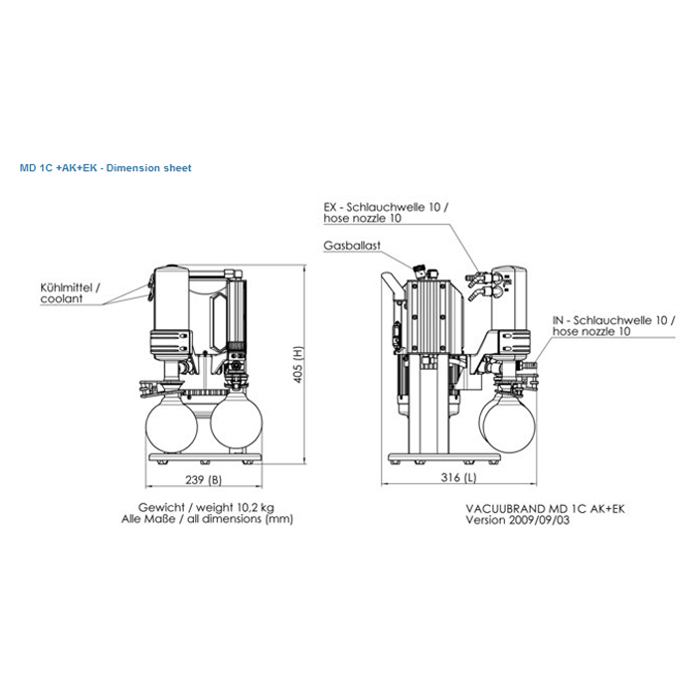

| Dimensions (L x W x H) | mm | 316 x 239 x 405 |
| Weight | kg | 10.2 |
| Noise level at 50 Hz, typ. | dBA | 45 |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. |
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand MD1C MZ1C Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Vacuubrand MD 1C +AK+EK Chemistry Diaphragm Pump, 100-120V/50-60Hz, US power cord, 0.8 CFM, 2 mbar, 696633
The MD 1C diaphragm pump is a Three Stage chemistry design pump, which is an excellent solution for continuous dry oil free vacuum pumping of harsh and corrosive vapors and gases with high requirements regarding ultimate vacuum pressure.
The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling and active protection of the environment.
The MD 1C has well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The MD 1C with gas ballast valve is optimally prepared for pumping easily condensable vapors (high boiling solvents).
The MD 1C three-stage construction provides the advantageous combination of high pumping speed and deep ultimate vacuum in a pump with a very small footprint. All parts in contact with pumped media are made of chemically resistant fluoroplastics.
Performance features;
-
Outstanding vapor tolerance
-
Ultra low vibration
-
Superior chemical resistance
-
Great ultimate vacuum
-
Sipmle to use
-
proven long diaphragm life
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Specifications
Vacuubrand MD 1C +AK+EK Chemistry Diaphragm Pump, 100-120V/50-60Hz, US power cord, 0.8 CFM, 2 mbar, 696633
| Technical data | Unit | MD 1C +AK+EK |
|---|---|---|
| Number of heads / stages | 4 / 3 | |
| Max. pumping speed at 50/60 Hz | m3/h | 1.3 / 1.5 |
| Max. pumping speed at 50/60 Hz | cfm | 0.8 / 0.9 |
| Ultimate vacuum (abs.) | mbar/torr | 2 / 1.5 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 4 / 3 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Coolant connection | 2 x hose nozzle DN 6-8 mm | |
| Rated motor power | kW | 0.08 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |
| Dimensions (L x W x H) | mm | 316 x 239 x 405 |
| Weight | kg | 10.2 |
| Noise level at 50 Hz, typ. | dBA | 45 |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. |
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
