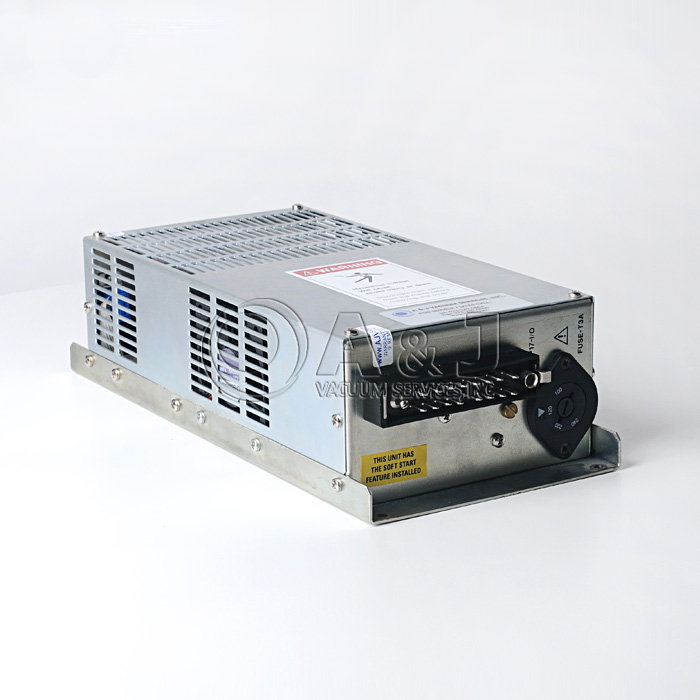

Varian Turbo V 250 Controller, 9699504S011, to be used with the Varian V 250 Turbo Pump.
Overview:
The Varian Turbo V 250 Turbo Pump Controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:
The power supply and the 3-phase output converts the single phase (50-60 Hz0 AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo V Pump.
The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.
It manages signals from sensors, input/output connection information to be displayed and gives outputs for a fully automatic operation.
A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time.

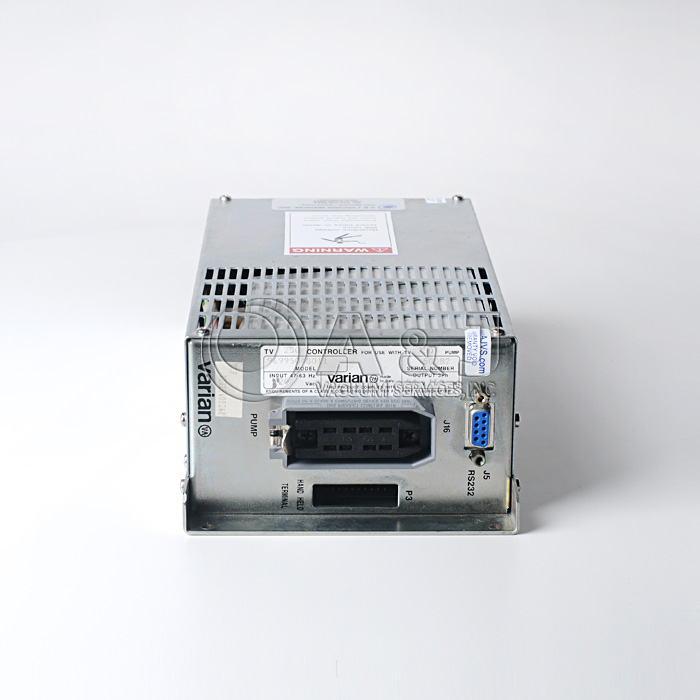

The controller can be operated by remote signals via the left panel connector and may be monitored/reprogrammed using the optional hand held terminal via the right panel connector.
This Controller is designed to be used with the Varian V 250 Turbomolecular Pump.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Varian Turbo V 250 Controller, 9699504S011, to be used with the Varian V 250 Turbo
Technical Data:
Input:
Output:
Fuse: T3A (slow blow) disregarding the mains
Unit is fully rebuilt and comes with a FULL 6-MONTH WARRANTY!
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
