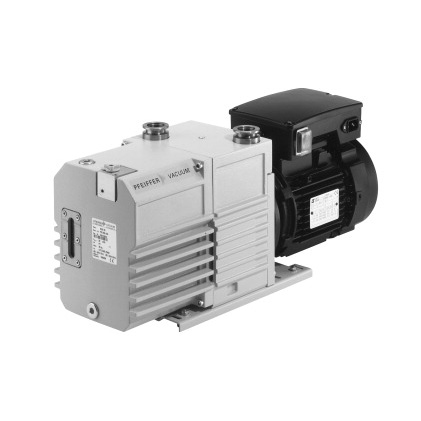

Pfeiffer DUO20M Vacuum Pump DuoLine Dual-stage rotary vane pumps with a pumping speed of 20 m3/h :
- Dual-stage, high-performance rotary vane pump with a pumping speed of 20 m3/h
- 3-phase motor for 190-210/330-365 V (± 5 %) 50 Hz or 208-230/360-400 V (± 5 %) 60 Hz supply voltages
- With temperature sensor (3TF) for optimum motor protection
- Integrated gas ballast and HV safety valve
- For all low and medium vacuum applications
- Magnetically coupled
- Special feature: Various motor voltages for worldwide employment
DuoLine rotary vane pumps cover all applications in the low and medium vacuum range of up to 10-3 mbar. These pumps offer reliable operation even for such critical industrial applications as drying processes, metallurgical processes or resin potting and casting systems – either as a standalone pump or as a backing pump in our roots pumping stations or turbo pumping stations.
The use of a magnetic coupling minimizes maintenance requirements and leads to considerable cost savings per pump and maintenance interval.
Reliable, clean, low maintenance. Compact design - Excellent performance data. Integrated safety and gas ballast valve. Various motor voltages afford worldwide employment. Contain no non-ferrous metals. M = Magnetically coupled
| Emission sound pressure level without gas ballast | ≤ 55 dB (A) |
| Flange (in) | DN 25 ISO-KF |
| Flange (out) | DN 25 ISO-KF |
| Leak rate safety valve | ≤ 1 · 10-4 mbar l/s |
| Magnetic coupling | Yes |
| Mains requirement: voltage (range) | 190-210/330-365 V (± 5 %) 50 Hz ; 208-230/360-400 V (± 5 %) 60 Hz |
| Operating fluid | P3 |
| Operating fluid filling | 1.1 l |
| Pumping speed at 50 Hz | 20 m3/h |
| Pumping speed at 60 Hz | 24 m3/h |
| Rated power 50 Hz | 0.55 kW |
| Rated power 60 Hz | 0.66 kW |
| Rotation speed at 50 Hz | 1500 rpm |
| Rotation speed at 60 Hz | 1800 rpm |
| Switch | No |
| Ultimate pressure with gas ballast | ≤ 1 · 10-2 mbar |
| Ultimate pressure without gas ballast | ≤ 5 · 10-3 mbar |
| Weight | 33 kg |
|
