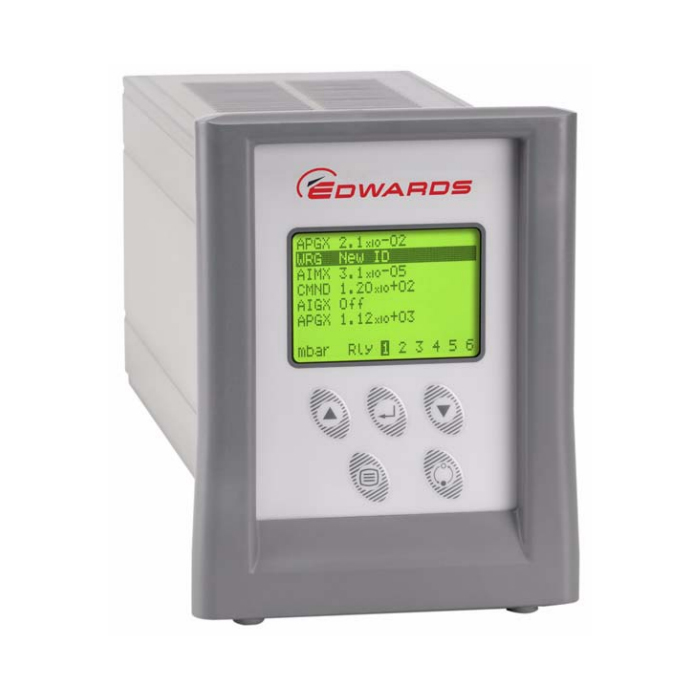

Edwards TIC Instrument and Gauge Controller, 3 Gauge, RS232/RS485, D39700000 Without Pump Control
Item#: PN00389 Mfr Part#: D39700000 Manufacturer: Edwards Vacuum
Condition: New In Stock
New Edwards Vacuum TIC Instrument Controller, 3 Gauge, RS232/RS485, D39700000, Without Pump Control

Features:
  • Vacuum Gauge Controller only
  • 3 Gauge Controller
  • build-in RS232 and RS485
  • D39700000

PRICE: $2,500.00
WEB SAVINGS: $100.00
YOU PAY: $2,400.00
Item#: PN00389 Mfr Part#: D39700000
Edwards TIC Instrument and Gauge Controller, 3 Gauge, RS232/RS485, D39700000 Without Pump Control
Item#: PN00389 Mfr Part#: D39700000 Manufacturer: Edwards Vacuum 12 months warranty

Edwards Vacuum TIC Instrument Controller, 3 Gauge, RS232/RS485, D39700000,  Vacuum Gauge Controller without Pump Control



Edwards Tic Instrument D39700000 3 Gauge Overview:


The TIC Instrument Controller provides compact control with a large, clear graphical display, an intuitive user interface and serial communications. The supplied Windows™-based PC program provides full remote setup, control and data logging functions via the RS232 interface.

Three TIC Instrument Controllers are available; the three head and six head versions can accomodate 3 or 6 active gauges including the Active Ion Gauge Controller (ebeam version). The six head capman version can accept up to three Edwards Barocel® Capacitance Manometers.



Edwards Tic Instrument, 3 Gauge Features:


  • Edwards TIC Controller automatically recognizes and controls active gauges including APG100 Pirani, convection, thermocouple, strain, inverted magnetron, wide range and active ion gauges. To enable complete integration into PC and PLC controlled processes, all Edwards TIC variants include RS232 and RS485 interface.



  • Edwards TIC Controller has six pressure related set points, which operate open collector outputs rated at 24 V d.c. 50 mA. Using the optional relay boxes, these may be linked to 250 V a.c. changeover relays to provide a useful accessory control capability. All relay boxes include a logic bypass facility for further system integration.



  • In most instances, Edwards TIC systems may be simply and quickly configured using the range of standard cables on offer, there is therefore no need for the customer to prepare loom assemblies or relay boxes and special interfaces.



  • Edwards TIC includes lookup tables for a range of commonly encountered process gasses (N2, He, Ar, CO2, Kr & Ne). Selecting the appropriate gas enables direct readout of the correct pressure without the need to apply conversion factors.



  • Edwards TIC is packaged in a compact case and may be panel or rack (¼ 19 inch rack 3U) mounted. With the addition of the bezel it becomes an attractive bench-top instrument. The large 128 x 64 pixel backlit graphics LCD and mobile phone style menu system simplifies programming and with a choice of summary screens excellent visibility of displayed parameters is assured.



  • TIC Controller will operate from mains supplies with voltages between 90 and 264 V a.c., and frequencies between 47 and 63 Hz. No user intervention being required.






A&J Vacuum services and repairs Edwards Tic Instrument, along with all other Edwards Controller and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

Edwards Vacuum TIC Instrument Controller, 3 Gauge, RS232/RS485, D39700000,  Vacuum Gauge Controller without Pump Control



Edwards Tic Instrument D39700000 3 Gauge Technical Data:


Electrical Data
Connector type CEE/IEC 320
Electrical supply 90 to 264 V AC, 47 to 63 Hz
Power consumption 3 head TIC 55 VA.  6 Head TIC 160 VA
Fuse The unit is self-protecting and has no user replaceable fuse. The unit will recover once any overload is removed.
Earth stud M4
Operating And Storage Data
Ambient operating temperature range 0 oC to 40 oC (measured underneath TIC)
Maximum ambient operating humidity Max 90% RH non-condensing at 40 oC
Maximum operating altitude 3000 m max
IP rating 20
IEC rated pollution degree 2
Mechanical Data
Weight 1.7 Kg
Interfaces
Analogue output 0-10 V DC – one for each gauge
Serial Interface The TIC has two built-in
communications protocols, RS232 and
RS485.
These may be used either to interface
to a PLC or, using the WindowsTM PC
software package supplied, connected
to a PC for full monitoring and control
of a TIC system.
Set-points 6 set-point (open collector) rated at 24V DC 50 mA can be assigned to any gauge. Use directly or in conjunction with TIC relay boxes.




A&J Vacuum services and repairs Edwards Tic Instrument, along with all other Edwards Controller and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

Name
Price
Item#:
PN19715
Mfr Part#:
D40001030
$89.95
Item#:
PN19716
Mfr Part#:
D40001050
$115.95
Item#:
PN19717
Mfr Part#:
D40001100
$179.00
Item#:
PN19718
Mfr Part#:
D40001150
$228.00
Item#:
PN19719
Mfr Part#:
D40001250
$305.00
Item#:
PN19720
Mfr Part#:
D40001500
$725.00
| Service and Repair
We can repair your:
  • Turbo Pumps
  • Rotary Vane Pumps
  • Dry Vacuum Pumps
  • Leak Detectors
  • Scroll Dry Pumps
  • Vacuum Boosters
  • Diaphragm Dry Pumps
You trusted worldwide leader of High Vacuum equipment!
Call us for your free repair estimate!
973-249-0854

A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.

We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.

Repair Steps

  1. Full incoming inspection and run up time check, vibration check, drive inspection.
  2. Full disassembly, decontamination and cleaning.
  3. Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
  4. Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
  5. Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.

Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.

Overview

Edwards TIC Instrument and Gauge Controller, 3 Gauge, RS232/RS485, D39700000 Without Pump Control
Item#: PN00389 Mfr Part#: D39700000 Manufacturer: Edwards Vacuum

Edwards Vacuum TIC Instrument Controller, 3 Gauge, RS232/RS485, D39700000,  Vacuum Gauge Controller without Pump Control



Edwards Tic Instrument D39700000 3 Gauge Overview:


The TIC Instrument Controller provides compact control with a large, clear graphical display, an intuitive user interface and serial communications. The supplied Windows™-based PC program provides full remote setup, control and data logging functions via the RS232 interface.

Three TIC Instrument Controllers are available; the three head and six head versions can accomodate 3 or 6 active gauges including the Active Ion Gauge Controller (ebeam version). The six head capman version can accept up to three Edwards Barocel® Capacitance Manometers.



Edwards Tic Instrument, 3 Gauge Features:


  • Edwards TIC Controller automatically recognizes and controls active gauges including APG100 Pirani, convection, thermocouple, strain, inverted magnetron, wide range and active ion gauges. To enable complete integration into PC and PLC controlled processes, all Edwards TIC variants include RS232 and RS485 interface.



  • Edwards TIC Controller has six pressure related set points, which operate open collector outputs rated at 24 V d.c. 50 mA. Using the optional relay boxes, these may be linked to 250 V a.c. changeover relays to provide a useful accessory control capability. All relay boxes include a logic bypass facility for further system integration.



  • In most instances, Edwards TIC systems may be simply and quickly configured using the range of standard cables on offer, there is therefore no need for the customer to prepare loom assemblies or relay boxes and special interfaces.



  • Edwards TIC includes lookup tables for a range of commonly encountered process gasses (N2, He, Ar, CO2, Kr & Ne). Selecting the appropriate gas enables direct readout of the correct pressure without the need to apply conversion factors.



  • Edwards TIC is packaged in a compact case and may be panel or rack (¼ 19 inch rack 3U) mounted. With the addition of the bezel it becomes an attractive bench-top instrument. The large 128 x 64 pixel backlit graphics LCD and mobile phone style menu system simplifies programming and with a choice of summary screens excellent visibility of displayed parameters is assured.



  • TIC Controller will operate from mains supplies with voltages between 90 and 264 V a.c., and frequencies between 47 and 63 Hz. No user intervention being required.






A&J Vacuum services and repairs Edwards Tic Instrument, along with all other Edwards Controller and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

Edwards Vacuum TIC Instrument Controller, 3 Gauge, RS232/RS485, D39700000,  Vacuum Gauge Controller without Pump Control



Edwards Tic Instrument D39700000 3 Gauge Technical Data:


Electrical Data
Connector type CEE/IEC 320
Electrical supply 90 to 264 V AC, 47 to 63 Hz
Power consumption 3 head TIC 55 VA.  6 Head TIC 160 VA
Fuse The unit is self-protecting and has no user replaceable fuse. The unit will recover once any overload is removed.
Earth stud M4
Operating And Storage Data
Ambient operating temperature range 0 oC to 40 oC (measured underneath TIC)
Maximum ambient operating humidity Max 90% RH non-condensing at 40 oC
Maximum operating altitude 3000 m max
IP rating 20
IEC rated pollution degree 2
Mechanical Data
Weight 1.7 Kg
Interfaces
Analogue output 0-10 V DC – one for each gauge
Serial Interface The TIC has two built-in
communications protocols, RS232 and
RS485.
These may be used either to interface
to a PLC or, using the WindowsTM PC
software package supplied, connected
to a PC for full monitoring and control
of a TIC system.
Set-points 6 set-point (open collector) rated at 24V DC 50 mA can be assigned to any gauge. Use directly or in conjunction with TIC relay boxes.




A&J Vacuum services and repairs Edwards Tic Instrument, along with all other Edwards Controller and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

We can repair your:
  • Turbo Pumps
  • Rotary Vane Pumps
  • Dry Vacuum Pumps
  • Leak Detectors
  • Scroll Dry Pumps
  • Vacuum Boosters
  • Diaphragm Dry Pumps
You trusted worldwide leader of High Vacuum equipment!
Call us for your free repair estimate!
973-249-0854

A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.

We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.

Repair Steps

  1. Full incoming inspection and run up time check, vibration check, drive inspection.
  2. Full disassembly, decontamination and cleaning.
  3. Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
  4. Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
  5. Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.

Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
